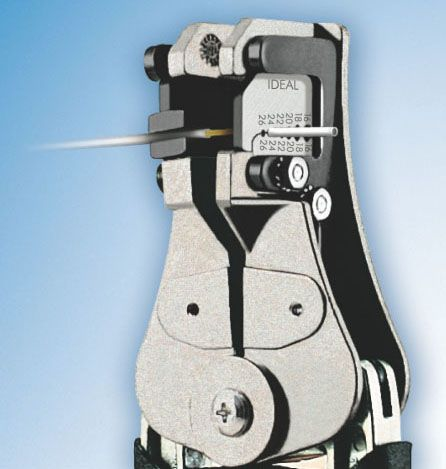

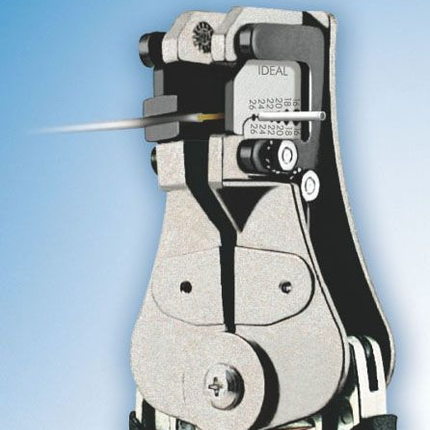

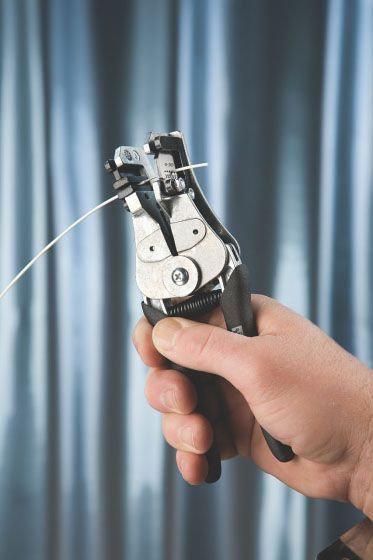

45-2112, Wire Stripper – Precision Wire Stripping Tool

The 45-2112 Wire Stripper by IDEAL Industries is a precision wire stripping tool designed for commercial and precision electrical applications. This lightweight tool is engineered for improved operator comfort and high productivity, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable preparation. It features die-type blades meeting MIL-spec 88A081X, optimized for 20-26 AWG wire.

Specifications

• Application: Die type blade MIL-spec. 88A081X. 20-26 AWG wire.
• Body Material: Die-Cast Zinc
• Length: 3/4 Inch
• Product Weight: 0.0200 lbs
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 45-2112

Features

• Lightweight design weighs 50% less than full-sized counterparts for enhanced mobility
• Precision die-type blades with counter-bored holes to cut insulation without damaging conductors
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Spring-action mechanical design reduces operator effort and increases productivity
• Compact size improves operator comfort and control
• Constructed with a sturdy die-cast zinc frame for durability
