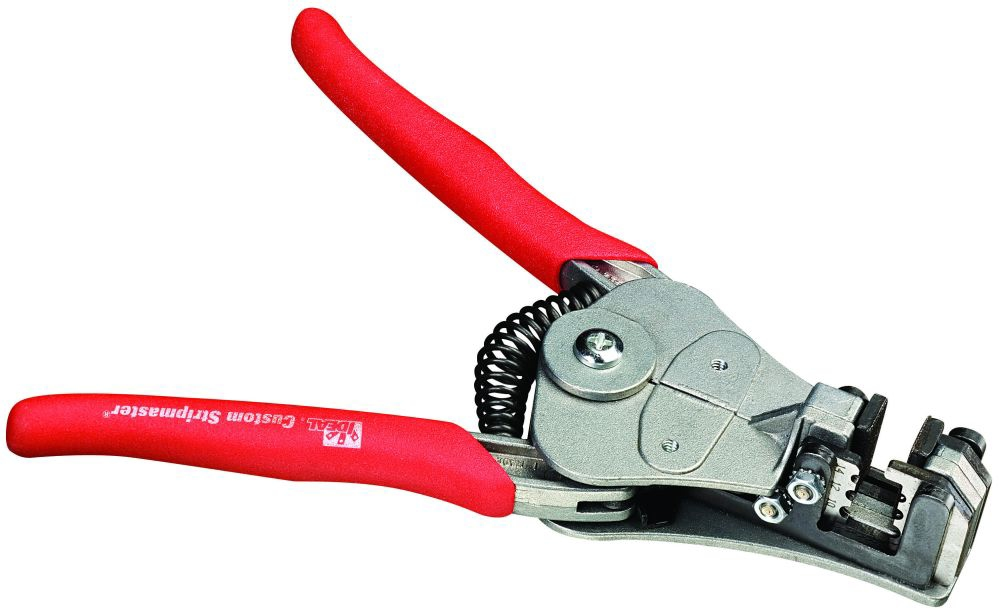

45-1773, Wire Stripper – Precision Wire Stripping Tool

The 45-1773 Wire Stripper from IDEAL Industries is a precision hand-held wire stripping tool designed for fast, accurate stripping of solid and stranded wire. Ideal for electrical distributors and lighting solutions providers, this wire stripper features a one-step, squeeze-action mechanism with a unique precision blade design that meets military specifications. Constructed with a sturdy die-cast zinc frame, it offers durability and mobility for commercial and precision stripping applications.

Specifications

• Application: Type 6411 & 6413 European, 9 & 13 MIL Kapton
• Product Weight: 0.85 lbs
• Body Material: Die-Cast Zinc
• Wire Range: 18-24 AWG (per MIL-Spec application guide)
• Manufacturer Part #: 45-1773
• UPC: 783250256525
• Meets SAE-AS5768 Standards

Features

• One-step, squeeze-action stripping for fast, accurate wire insulation removal
• Precision counter-bored die-type blades that cut insulation without damaging the conductor
• Spring-action mechanical design reduces operator effort and increases productivity
• Replaceable gripper pads hold wire securely in centerline relationship with blade
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Cushioned plastic grips for operator comfort
• Lightweight design for maximum mobility in commercial and precision applications

Downloads & Links

• Other 1
• Catalog
