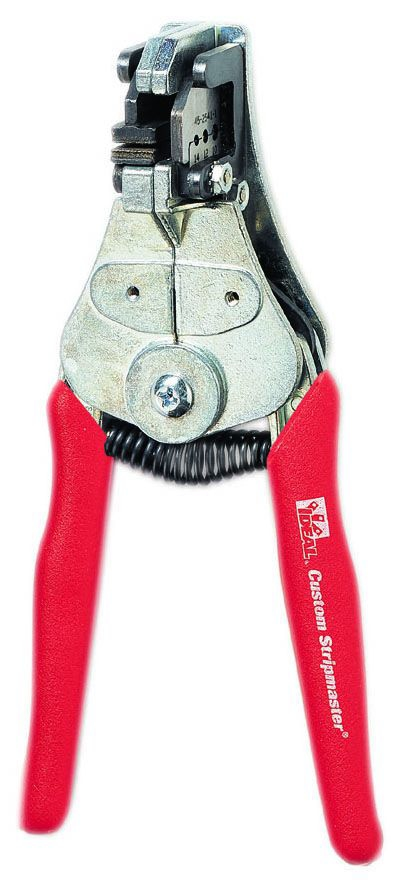

45-1609, Wire Stripper - Precision Wire Stripping Tool

The 45-1609 Custom Stripmaster® Wire Stripper by IDEAL Industries is a hand-held, precision wire stripper designed for fast and accurate wire stripping in commercial and precision applications. Engineered for electrical distributors and lighting solutions providers, this tool supports MIL-W-81381 applications and accommodates 10, 12, and 14 AWG wire sizes. Its sturdy die-cast zinc construction ensures durability and mobility, making it suitable for wire and cable handling and switchgear supplier needs.

Specifications

• Application: MIL-W-81381, 5 MIL Kapton application with 10, 12, 14 AWG wire sizes
• Body Material: Die-Cast Zinc
• Product Weight: 0.9000 lbs
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 45-1609
• UPC: 783250255443

Features

• One-step, squeeze-action stripping with unique precision blade design
• Spring-action mechanical design for reduced operator effort and extra leverage
• Precision counter-bored die-type blades that cut insulation without damaging the conductor
• Customizable with gripper pads and blade sets to match specific stripping requirements
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Lightweight and durable die-cast zinc frame for maximum mobility and high productivity
• Meets SAE-AS5768 and Military Stripping Specifications
