Features

Ballasting Requirements

• Ballast Bypass

Specifications

• Country of Origin: China
• Length: 96 In.
• Substitute: S29919
• Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
• Amps: 0.358-0.155A
• ANSI Base: Fa8
• Beam Spread: 210
• CCT Selectable: No
• CO Terse: Lawful for sale
• HI Terse: Lawful for sale
• NV Terse: Lawful for sale
• VT Terse: Lawful for sale
• Color Temp: Natural Light
• CRI: 82
• Dimmable: Non-Dimmable
• DLC Approved: No
• Enclosure Rating: Enclosed Rated Lamp
• ENERGY STAR: No
• FCC Compliant: Yes
• Finish: Gloss White

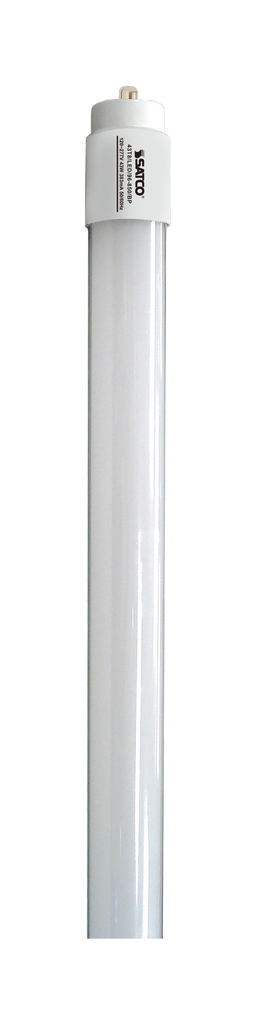

• Product Type: Linear
• Flr Equiv: 54W/59W
• Avg Rated Hours: 50000
• Lamp Base: Single Pin
• Lamp Filament: LED
• Lamp Shape: T8
• Lamp Ballast Type A/B/C: Type B
• Lamp End Type: Double Ended
• Lensed: Lensed Lamp
• Lens Finish: Gloss White
• Lumens: 5500L
• Minimum Compartment Size: Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
• MOD Decimal: 1 in.
• MOL Decimal: 96 in.
• NSF Approved: Yes
• Operating Frequency: 50/60 Hz
• Operating Temp: -20C (-4F) to +45C (+113F)
• Order In Multiples Of: 10
• Power Factor: 0.9
• Rated For Enclosed Fixture: Yes
• Rated For Vapor Tight Fixture: No
• Replaces: S9701
• RoHS Compliant: Yes
• Safety Listing: cULus - Classified; cULus - Certified
• Location Rating: Damp
• Shatter Proof Type: Yes
• Technology: LED
• Temperature (CCT): 5000K
• Volts: 120V-277V
• Watts: 43W
