423-9234-000 General Purpose Transformer – Dry Type Three Phase Ventilated Transformer

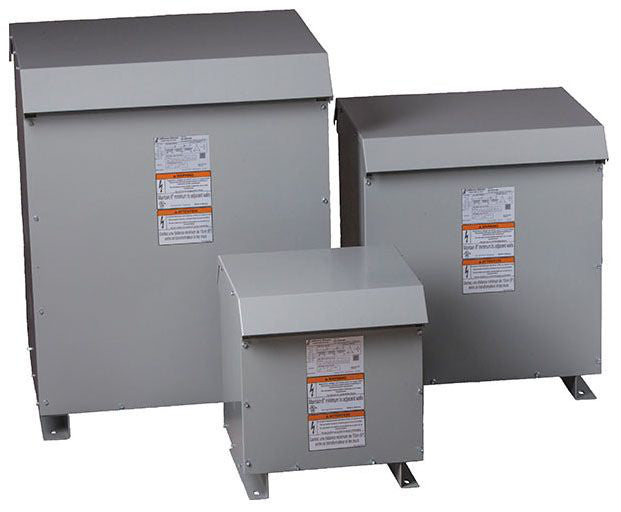

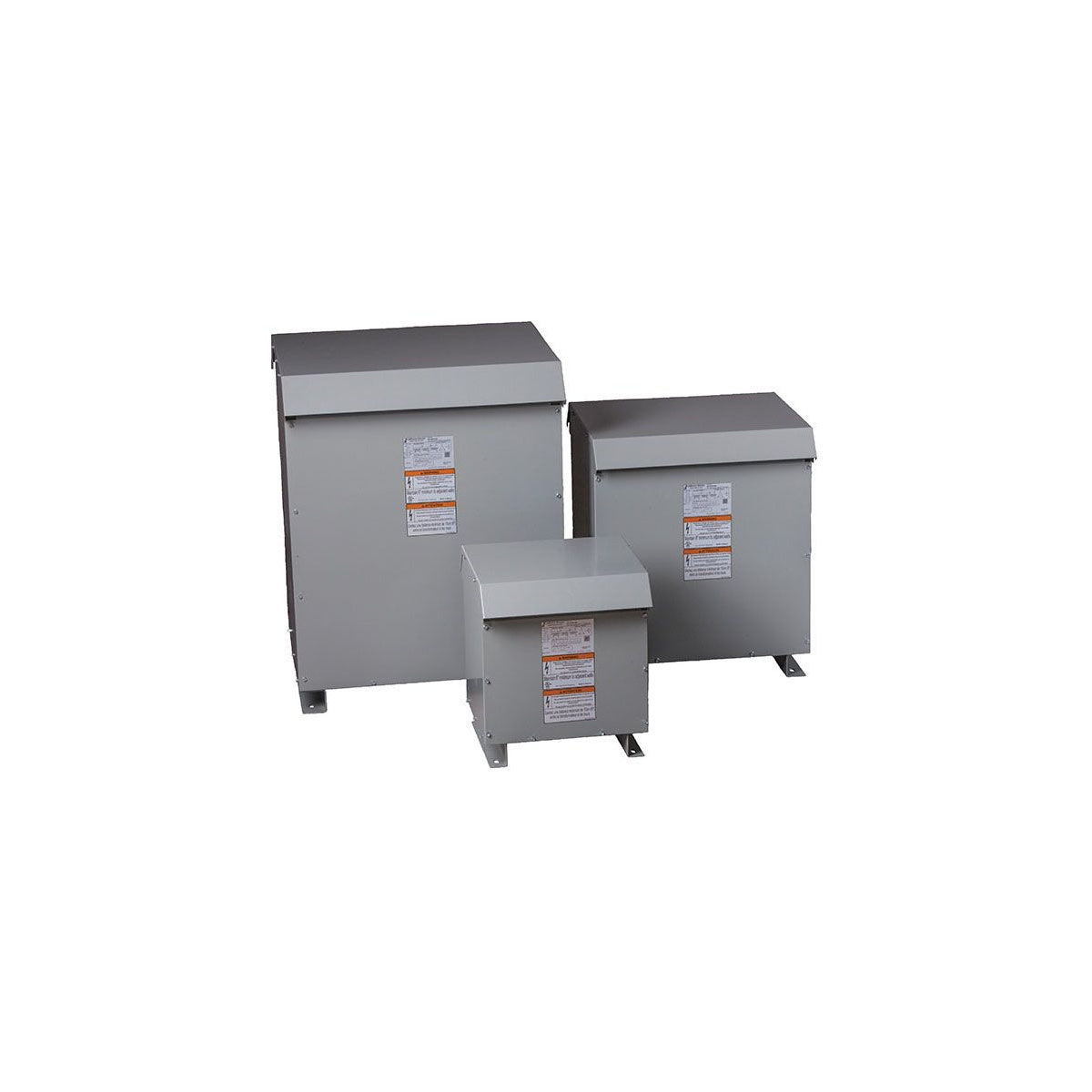

The 423-9234-000 is a general purpose dry type three phase ventilated transformer designed for commercial, industrial, and lighting applications. It operates at 60 hertz frequency and is manufactured by Jefferson Electric to meet the highest industry standards, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable solutions. This transformer complies with DOE-2016 energy efficiency standards and features a NEMA 3R enclosure for indoor and outdoor use.

Specifications

• Manufacturer Part #: 423-9234-000
• Frequency: 60 hertz
• Voltage Class: 600 Volt
• Phase: Three Phase
• Temperature Rise: 150¬∞C
• Windings: Aluminum
• Enclosure: NEMA 3R rated
• Dimensions (H x W x D): 32" x 27" x 26"
• Net Weight: 625 lbs
• Taps: 2 @ 2.5% FCAN & 4 @ 2.5% FCBN
• Standards: Meets DOE-2016, NEMA, ANSI, UL, CSA
• Insulation Class: 220¬∞C standard

Features

• Meets federally mandated DOE-2016 energy efficiency standard
• Manufactured in accordance with NEMA, ANSI, UL, and CSA standards
• Minimized space-saving design for easier handling and installation
• Termination lugs provided for units through 75 kVA
• Vibration isolation pads for quiet operation
• Staggered front loop taps for easy connection
• Heat-cured ASA-61 gray powder coat finish enclosure
• Suitable for indoor and outdoor use
• Seismic certification for units through 1,000 kVA
