42 Crct Skd Neutral +Main
SKU: #303426
Part: #1042M
UPC: 662381008213
42 Crct Skd Neutral +Main
SKU: #303426
Part: #1042M
UPC: 662381008213
Description

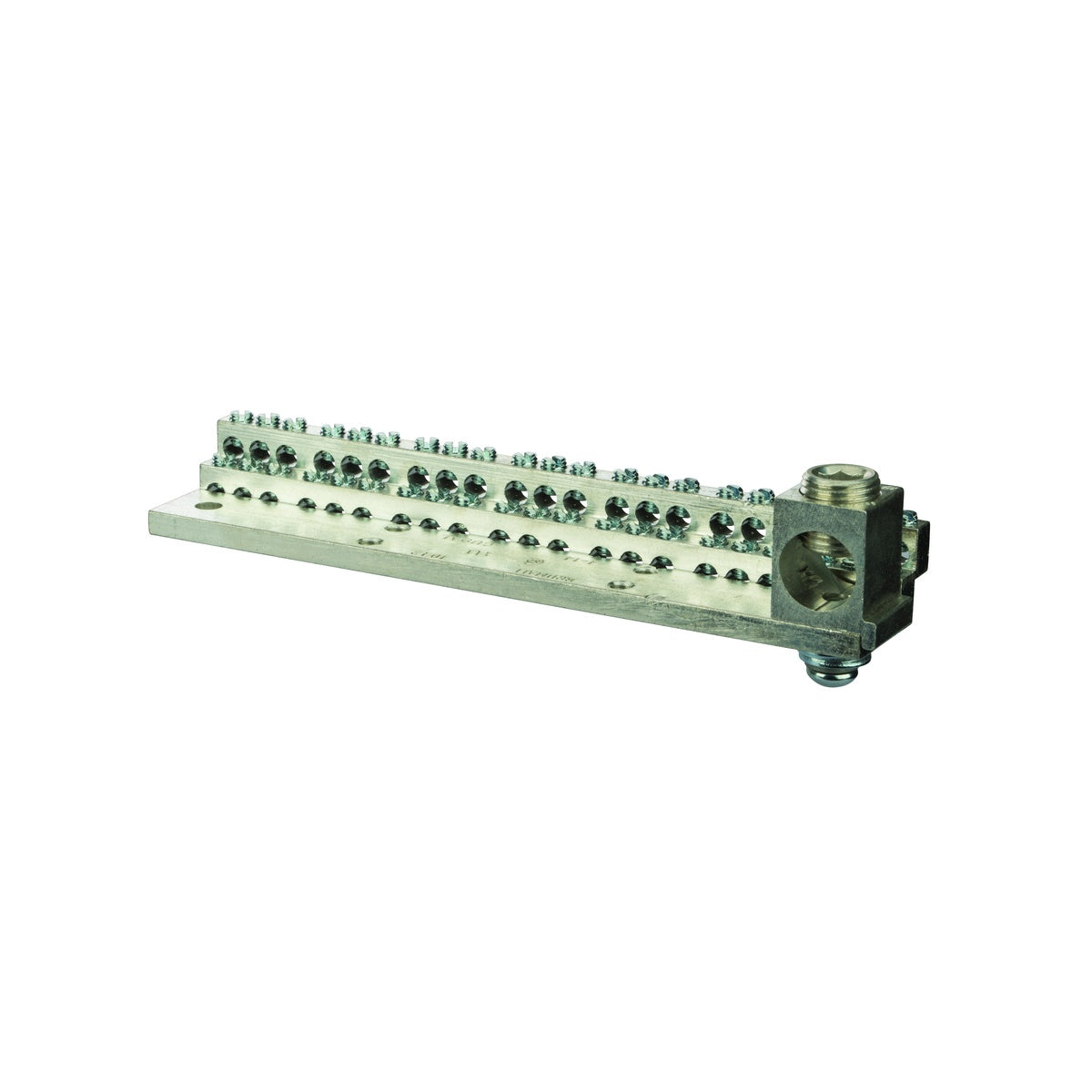

42 Crct Skd Neutral +Main Stacked Neutral Bar
The 42 Circuit Stacked Neutral Bar with Main Lug by NSI Industries is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. This product supports 225A and accommodates wire sizes ranging from 4-14 AWG for circuits and 350 MCM to 6 AWG for the main lug. It is suitable for lighting solutions and wire and cable systems requiring reliable neutral connections.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1042M
- Application: Wire Termination
- Conductor Size: (42) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
- Conductor Material: Aluminum
- Material: 6061T-6 Aluminum Alloy
- Dimensions: 7.513 in (Length) x 1.375 in (Height) x 1.5 in (Width)
- Product Weight: 0.4920 lbs
- Current Rating: 225A
- Country of Origin: United States
- Made in USA: Yes
Features
- Compact stacked design minimizes width for space-saving installations
- One-piece construction enhances mechanical performance and durability
- Includes a 350 MCM main lug for high-capacity connections
- High strength 6061T-6 aluminum alloy construction
