416-1151-000, Buck-Boost Transformer - Electrical Isolation Transformer

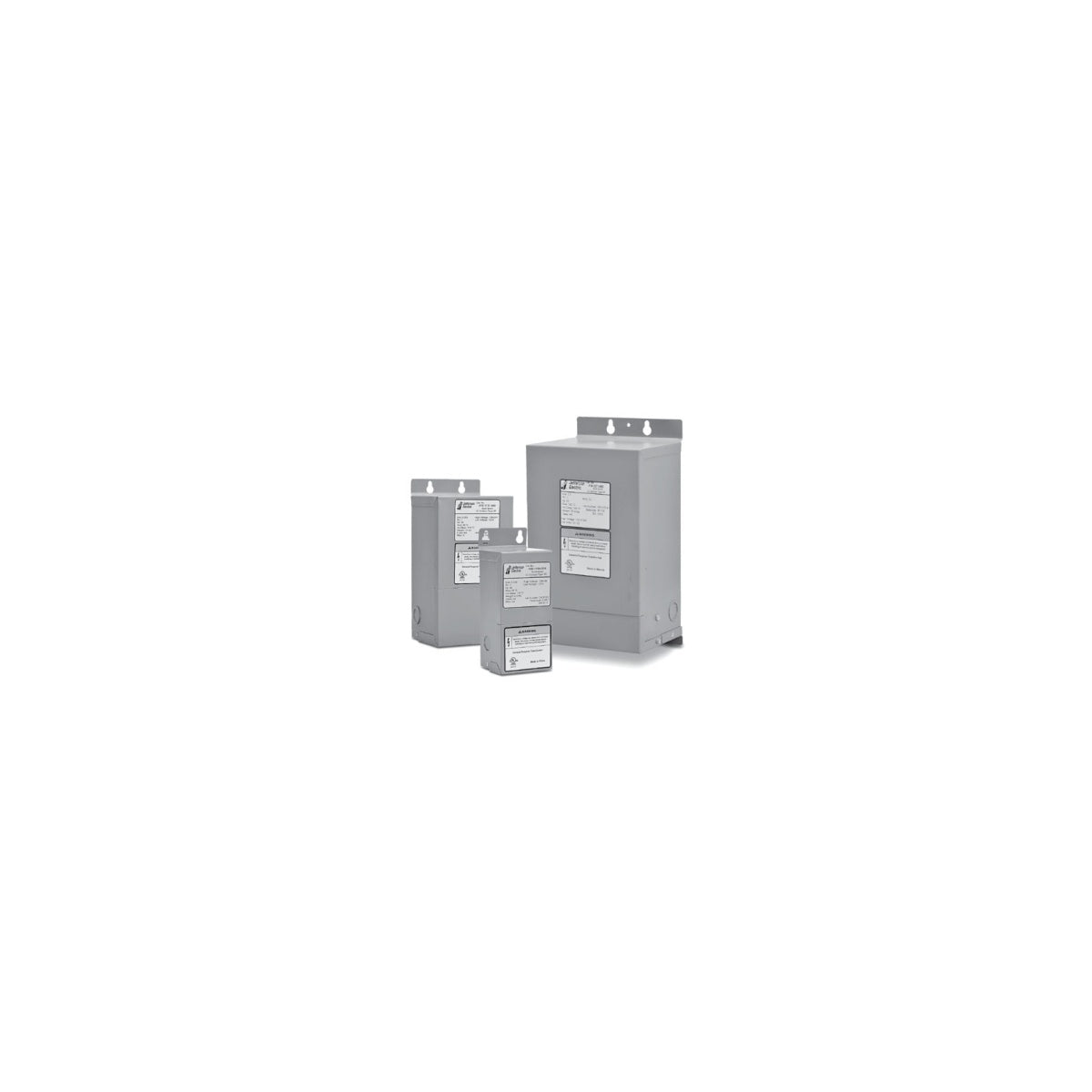

The 416-1151-000 Buck-Boost Transformer by Jefferson Electric is a single-phase, encapsulated dry-type transformer designed for low voltage applications. It is ideal for correcting voltage line drops, low voltage lighting, international voltage adaptation, and motor applications. This transformer is suitable for electrical distributors and switchgear suppliers requiring reliable voltage adjustment solutions within wire and cable systems and lighting solutions.

Specifications

• Frequency: 60 hertz
• Power Rating: 1 kVA
• Primary Voltage: 120 x 240 V
• Secondary Voltage: 12/24 V
• Temperature Rise: 95¬∞C with 130¬∞C insulation class
• Enclosure: NEMA 3R-rated
• Dimensions (inches): Height 10.19, Width 5.06, Depth 4.59
• Weight: 17.8 lbs
• Finish: Heat-cured ASA-61 gray powder coat
• Core Material: High quality electrical steel

Features

• Encapsulated with electrical grade resin for durability
• Slotted mounting holes for quick and easy installation
• Convenient wall mount design with lifting hooks for units 5 kVA and above
• Permanently affixed wiring diagram for simplified installation
• Built to comply with NEMA, ANSI, UL, and CSA standards
• Designed as an autotransformer to economically raise or lower voltages by 5-20%
• Does not compensate for fluctuating line voltages; suitable for relatively constant line voltage conditions
