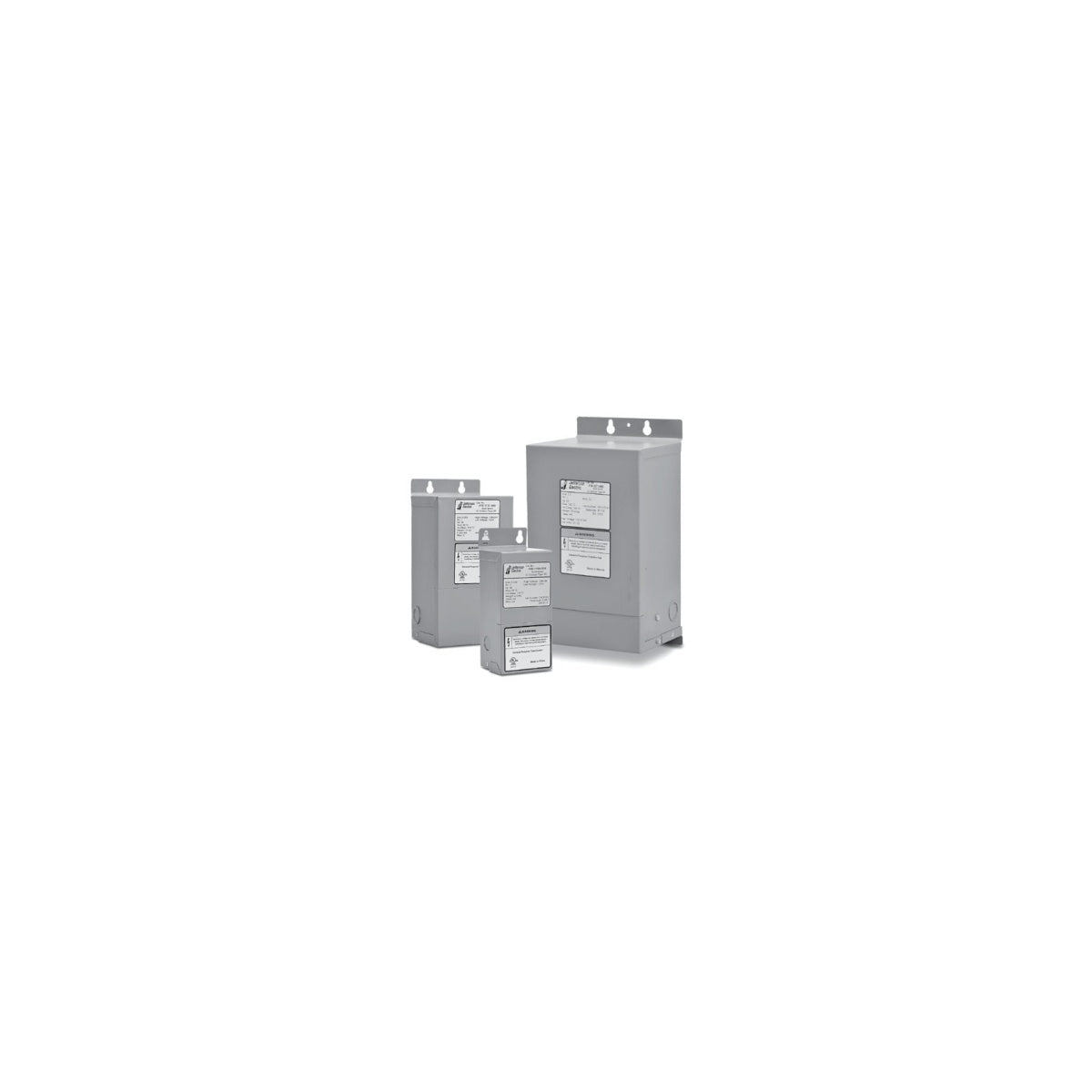

416-1101-000 Buck-Boost Transformer

The 416-1101-000 Buck-Boost Transformer by Jefferson Electric is a single-phase low voltage isolation transformer designed to raise or lower voltages by 5-20%. It is suitable for electrical distributors and lighting solutions requiring reliable voltage adaptation, including low voltage lighting applications and international voltage adjustment. This model operates at a frequency of 60 hertz and is ideal for solving over/under voltage problems efficiently and economically in wire and cable or switchgear supplier environments.

Specifications

• Manufacturer: Jefferson Electric
• Manufacturer Part #: 416-1101-000
• Frequency: 60 hertz
• Voltage Configuration: 120 x 240V primary to 12/24V secondary
• Temperature Rise: 95°C
• Enclosure Figure: 2
• Dimensions (HxWxD): 8.03" x 3.31" x 3.08"
• Estimated Shipping Weight: 5 lbs
• Insulation Class: 130°C
• Enclosure Rating: NEMA3R
• Finish: Heat-cured ASA-61 gray powder coat
• Core Material: High quality electrical steel

Features

• Encapsulated with electrical grade resin for durability
• Slotted mounting holes for quick and easy installation
• Compact wall mount design
• Designed for low voltage applications including lighting
• Meets NEMA, ANSI, UL, and CSA standards
• Does not compensate for fluctuating line voltages; suitable for relatively constant line voltage environments
