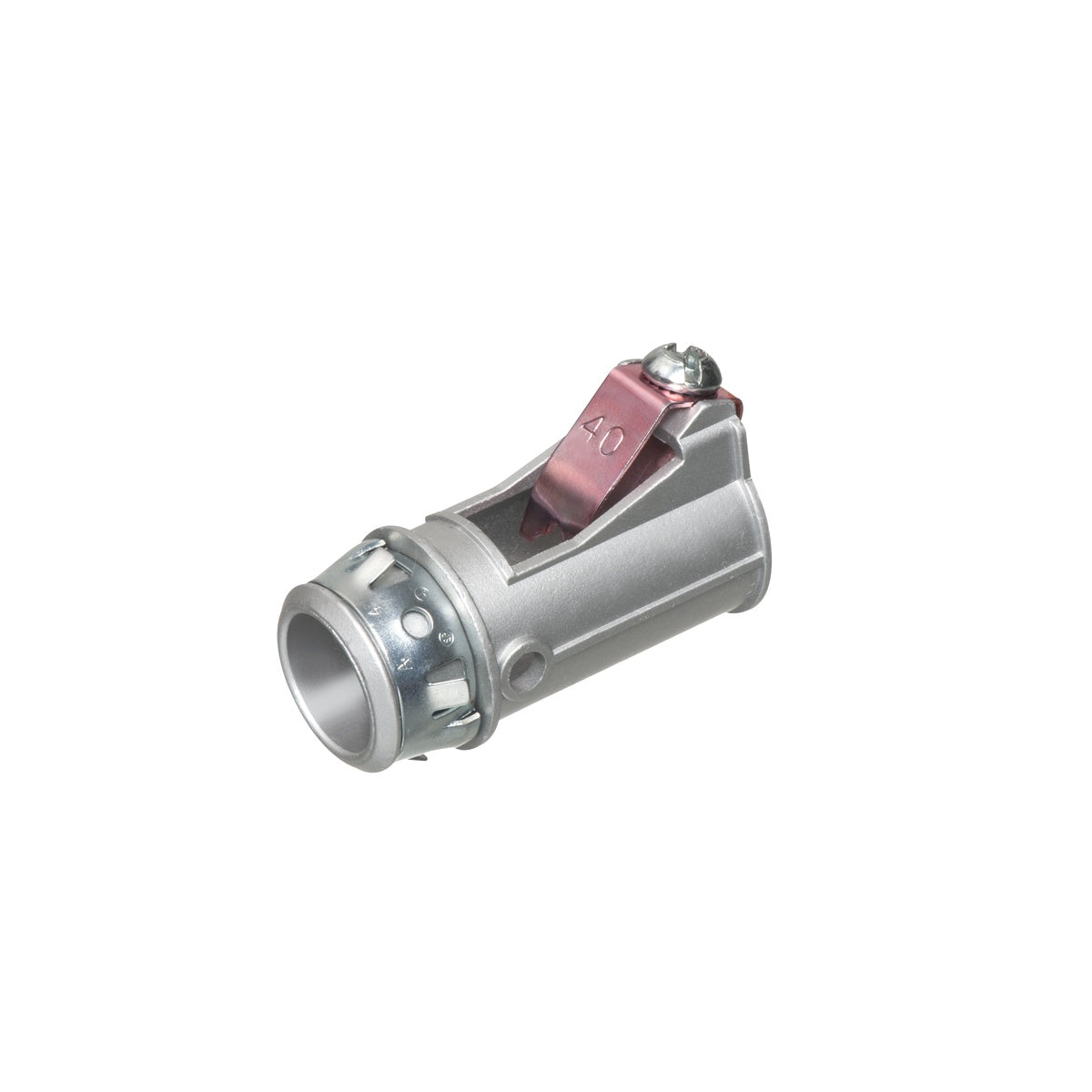

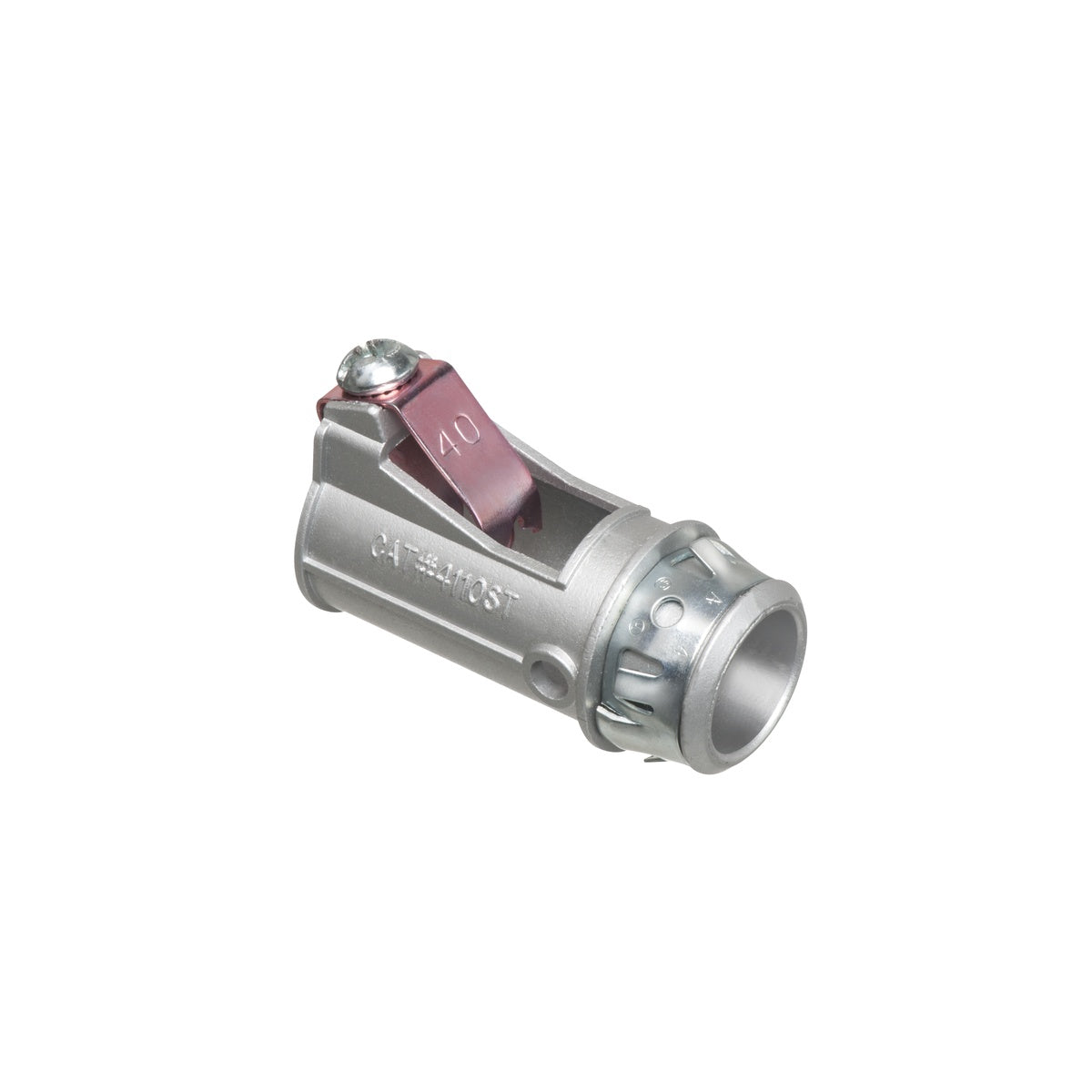

4110ST Zinc Die-Cast, 1/2" Knockout MC Cable Connector

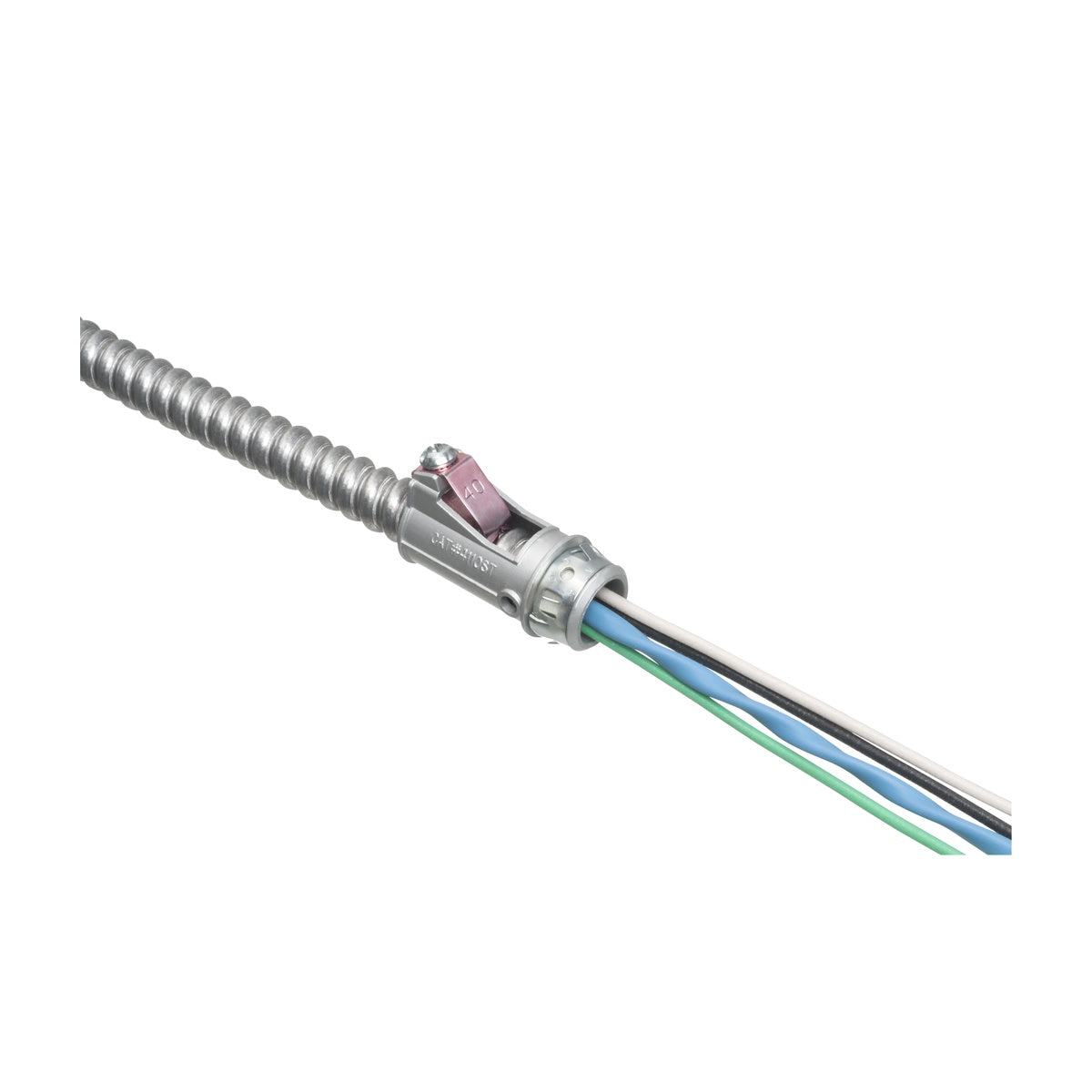

The Arlington 4110ST is a zinc die-cast MC cable connector designed for secure and efficient cable installations. It is suitable for use with AC, MC, HCF steel and aluminum cable, flexible metal conduit (steel and aluminum, regular and reduced wall), MCI cable, continuous corrugated aluminum, AC90, and MC-PCS cables. This connector is engineered for fast, tool-free installation, making it ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers.

Specifications

• Material: Zinc
• Color: Silver
• Knockout Size: 1/2"
• Cable Range (Outside Diameter): 0.525" to 0.705"
• Dimensions (inches): A - 1.963, B - 1.252, C - 1.000, D - 2.075
• Product Weight: 0.0900 lbs
• UPC: 018997007285
• Manufacturer Part #: 4110ST

Features

• Snap-on connector with no tools required for installation
• Angled two-prong clip locks securely onto MC cable, preventing pullout
• Removable and reusable design
• Concrete-tight when taped
• CSA listed with anti-short bushing (required for listing)
• Compatible with a wide range of cable types including MC-PCS and MC-PCS HCF cables
• Patented design saves approximately 17 seconds per fitting during installation
• Fully assembled and ready to use

Downloads & Links

• Catalog Page
• Specification Sheet
• 4110ST Line Drawing
