40C-SW-92-P, Conduit Elbow
SKU: #15609
Part: #40C-SW-92-P
UPC: 196306074545
40C-SW-92-P, Conduit Elbow
SKU: #15609
Part: #40C-SW-92-P
UPC: 196306074545
Description

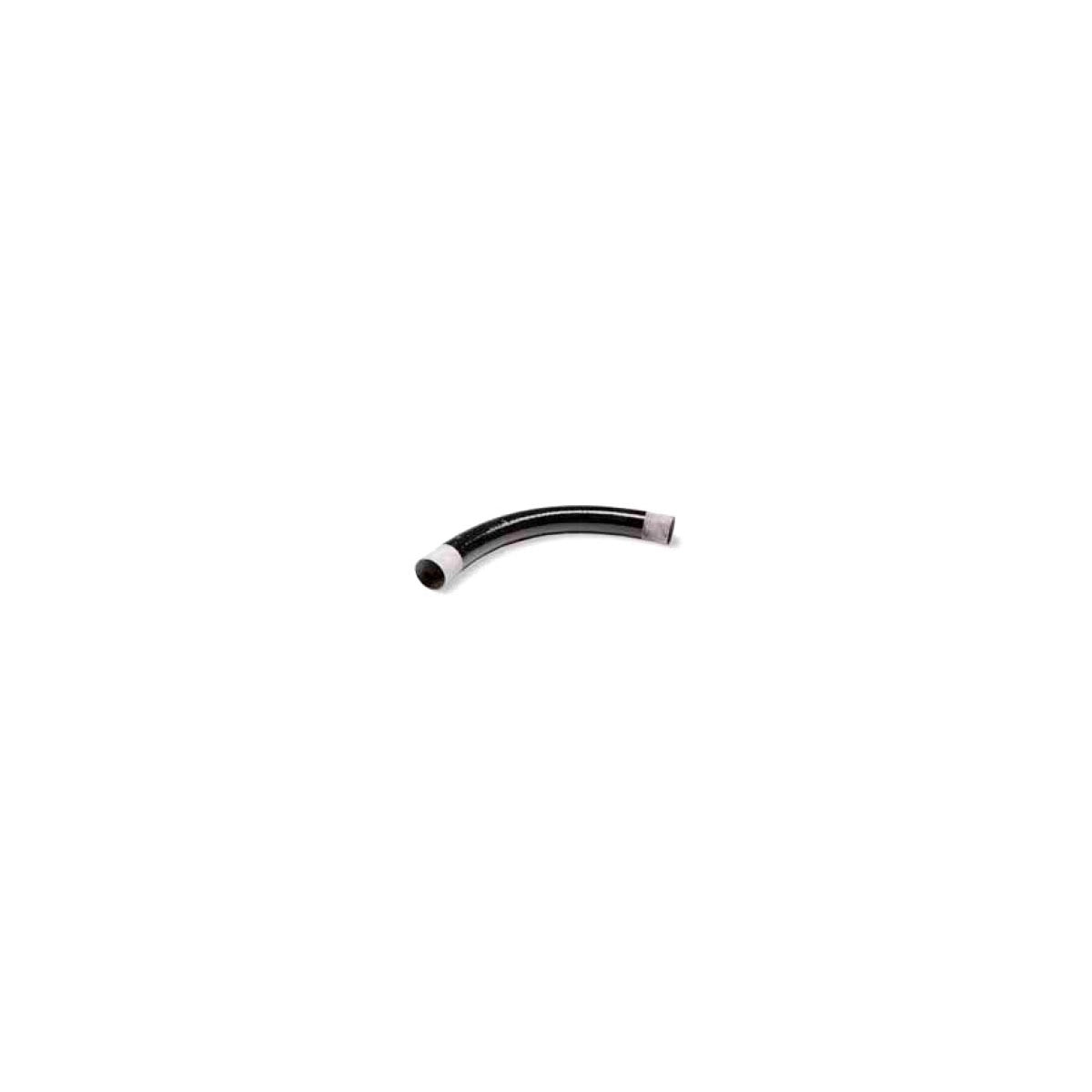

40C-SW-92-P, Conduit Elbow – Fiberglass Conduit for Above Ground Applications
The 40C-SW-92-P Conduit Elbow is a specialized fiberglass conduit fitting designed for above ground conduit systems requiring a 90-degree bend with a 36-inch radius. Manufactured by Champion Fiberglass, this conduit elbow is suitable for utility, data center, and wastewater treatment plant applications. It meets stringent industry standards and approvals, making it a reliable component for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers.
Specifications
- Trade Size: 4 Inch IPS
- Bend Angle: 90 Degree
- Bend Radius: 36 Inch
- End Type: Plain x Plain
- Material: Fiberglass (Reinforced Thermosetting Resin Conduit - RTRC)
- Finish: Carbon Black
- Outside Diameter: 4.46 Inch
- Wall Thickness: 0.07 Inch
- Product Weight: 4.08 lbs
- UL Approvals: UL 2515, UL 2515A, CSA C22.2
- Applicable Standards: ISO 9001/14001, NAED, NFPA, NEMA
- Manufactured in the USA
Features
- Manufactured using single circuit filament winding process for consistent strength and durability
- Epoxy-based resin system with continuous E-glass Grade “A” roving for enhanced mechanical properties
- Carbon black finish provides UV protection suitable for outdoor storage and exposure
- Meets UL 2515 Above Ground standard with UL labels for quality assurance
- Smooth internal walls with embedded fibers ensuring optimal conduit performance
- Complies with fire resistance and flame spread requirements; halogen-free additives reduce toxic emissions
- Durably marked with angle, radius, manufacturing date, and manufacturer information per NEMA TC 14
- Compatible with bonded coupling or gasketed joining systems for secure installation in varying ambient conditions
- Certified to ISO 9001:2008 Quality Management and ISO 14001 Environmental Management standards
