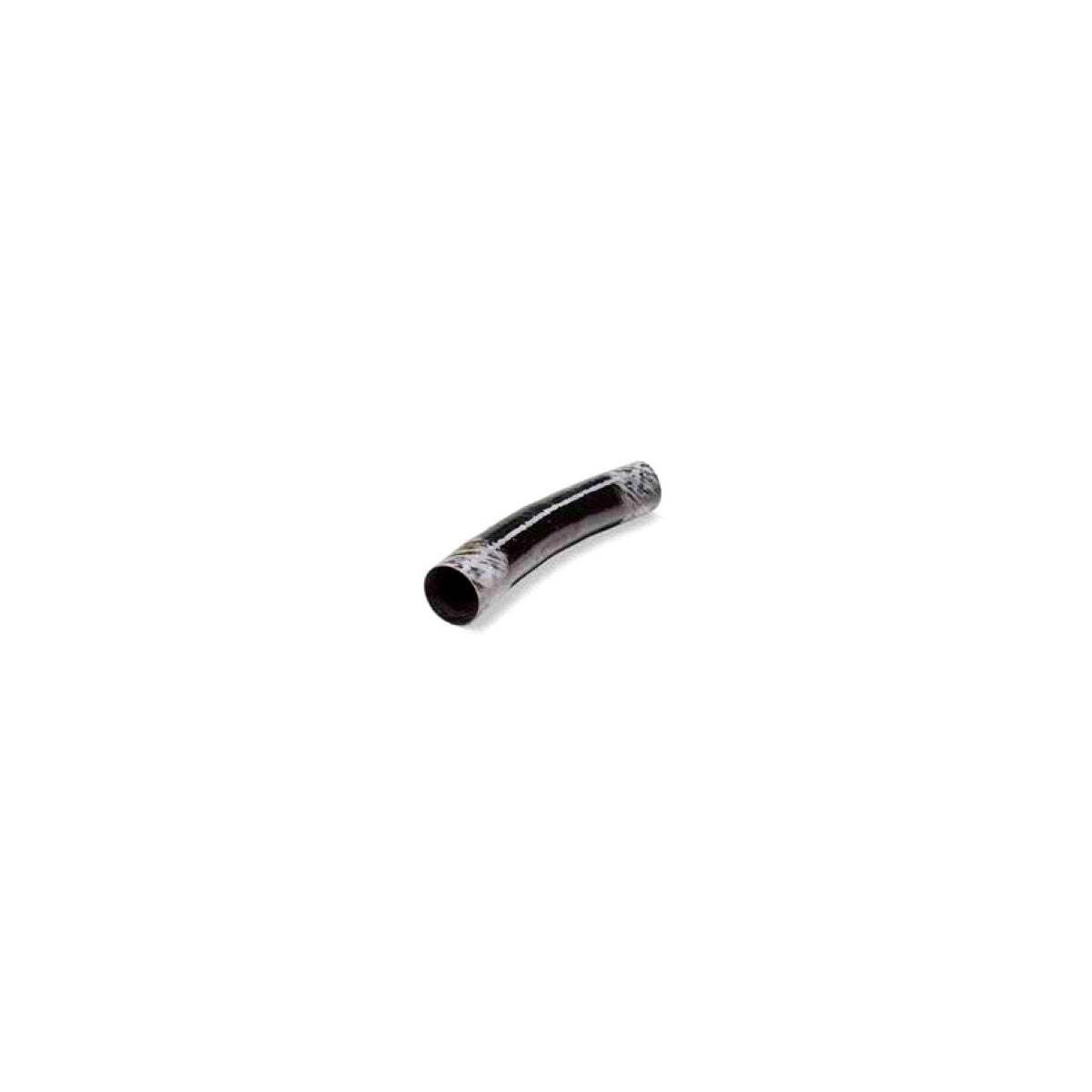

40C-SW-61-P, Conduit Elbow
SKU: #15575
Part: #40C-SW-61-P
UPC: 196306073036
40C-SW-61-P, Conduit Elbow
SKU: #15575
Part: #40C-SW-61-P
UPC: 196306073036
Description
40C-SW-61-P, Conduit Elbow – Fiberglass Conduit Fitting
The 40C-SW-61-P Conduit Elbow is a fiberglass conduit fitting designed for above-ground electrical conduit systems. Manufactured by Champion Fiberglass, this elbow is engineered for utility, data center, and wastewater treatment plant applications. It provides a 22-1/2 degree bend angle with a special radius to facilitate directional changes in conduit runs. This product is suitable for use by electrical distributors and switchgear suppliers requiring durable, UL-listed conduit fittings that comply with industry standards.
Specifications
- Trade Size: 4 Inch IPS
- Bend Angle: 22-1/2 Degree
- Bend Radius: 24 Inch
- End Type: Plain x Plain
- Material: Fiberglass
- Finish: Carbon Black
- Outside Diameter: 4.46 Inch
- Wall Thickness: 0.07 Inch
- Product Weight: 2.02 lbs
- Approvals: UL 2515, UL 2515A, CSA C22.2
- Applicable Standards: ISO 9001/14001, NAED, NFPA, NEMA
- Manufacturer Part #: 40C-SW-61-P
Features
- Manufactured using single circuit filament winding process for consistent strength and quality
- Epoxy-based resin system with continuous E-glass Grade “A” roving for mechanical durability
- Carbon black finish provides ultraviolet protection for outdoor exposure
- Non-tapered, smooth internal walls to facilitate wire and cable installation
- UL 2515 Above Ground Listed for flame resistance and fire safety compliance
- Halogen-free additives reduce smoke density and eliminate toxic halogen emissions during fire
- Durably marked with manufacturing and compliance information in accordance with NEMA TC 14
- Manufactured in the USA with ISO 9001:2008 Quality Management System certification
