Description

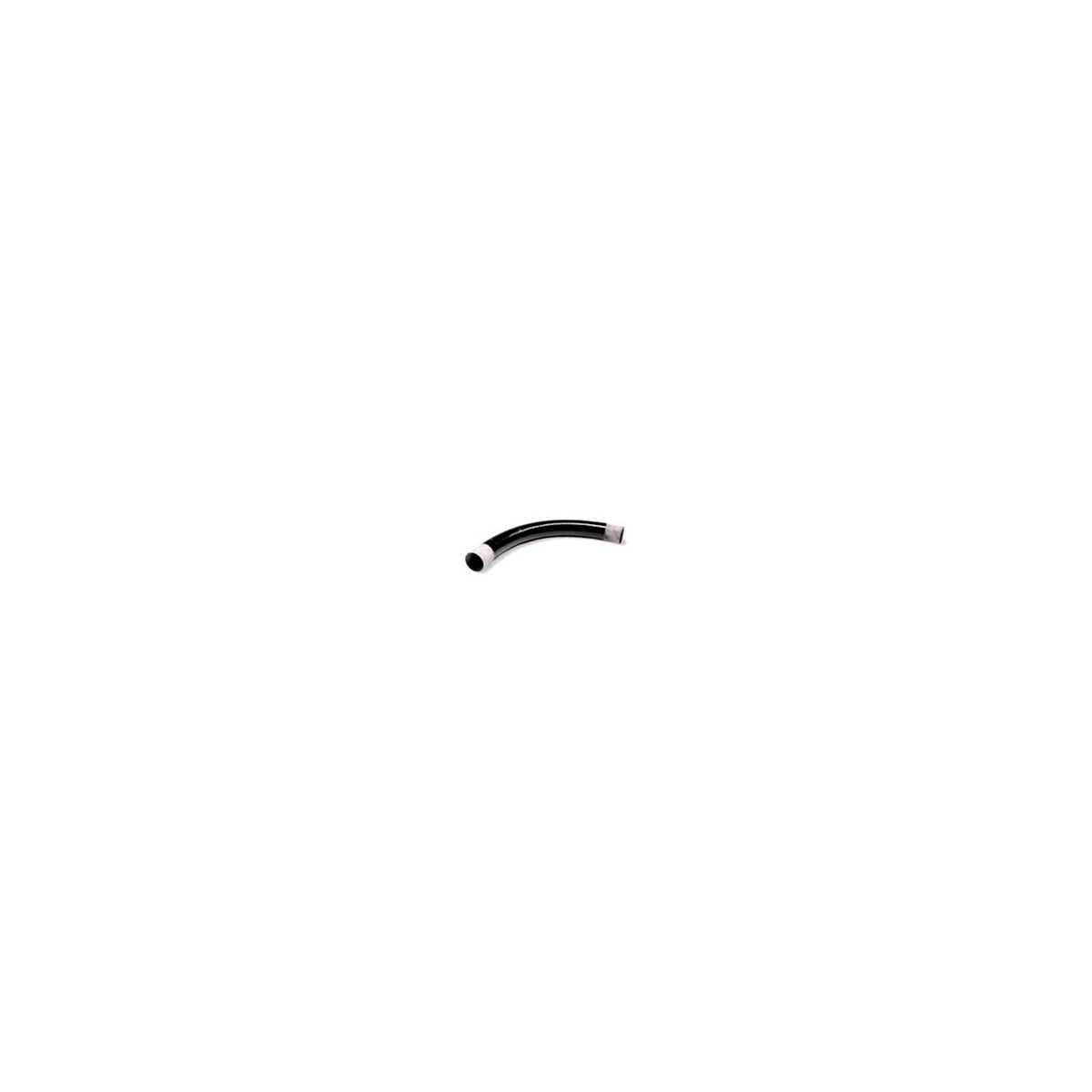

40C-HW-92-P Conduit Elbow – Fiberglass Phenolic Conduit Fitting
The 40C-HW-92-P Conduit Elbow is a heavy wall, above ground conduit fitting designed for use in conduit systems within utility, data center, and wastewater treatment plant applications. Manufactured from phenolic fiberglass using a single circuit filament winding process, this 4-inch IPS conduit elbow features a 90-degree bend angle and a special radius with a 36-inch bend radius. It is suitable for electrical distributors and lighting solutions requiring durable, fire-resistant, and UL/CSA approved components.
Specifications
- Material: Fiberglass (Phenolic Resin with Continuous E-glass Grade “A” Roving)
- Finish: Carbon Black (UV inhibitor for outdoor protection)
- Trade Size: 4 Inch IPS
- Bend Angle: 90 Degree
- Bend Radius: 36 Inch
- Wall Thickness: 0.096 Inch
- Outside Diameter: 4.51 Inch
- End Type: Plain x Plain
- Product Weight: 5.5 lbs
- Approvals: UL 2515, UL 2515A, CSA C22.2
- Applicable Standards: ISO 9001/14001, NAED, NFPA, NEMA
- Manufacturer: Champion Fiberglass
Features
- Manufactured in the USA with durable phenolic fiberglass providing excellent fire resistance and mechanical strength
- Meets UL2515 fire resistance specifications with flame extinguishing within 30 seconds after multiple flame applications
- Non-tapered conduit sections ensuring smooth bore and consistent dimensions for reliable conduit system integration
- Halogen-free additives for low smoke density and flame spread, compliant with NFPA130 and NFPA502
- Carbon black finish acts as an ultraviolet inhibitor for enhanced outdoor durability
- Certified under ISO 9001:2008 Quality Management and ISO 14001 Environmental Management Systems
- Compatible with bonded coupling and spigot joining system using high temperature alumina-based adhesive
- Suitable for utility, data center, and wastewater treatment plant electrical infrastructure
