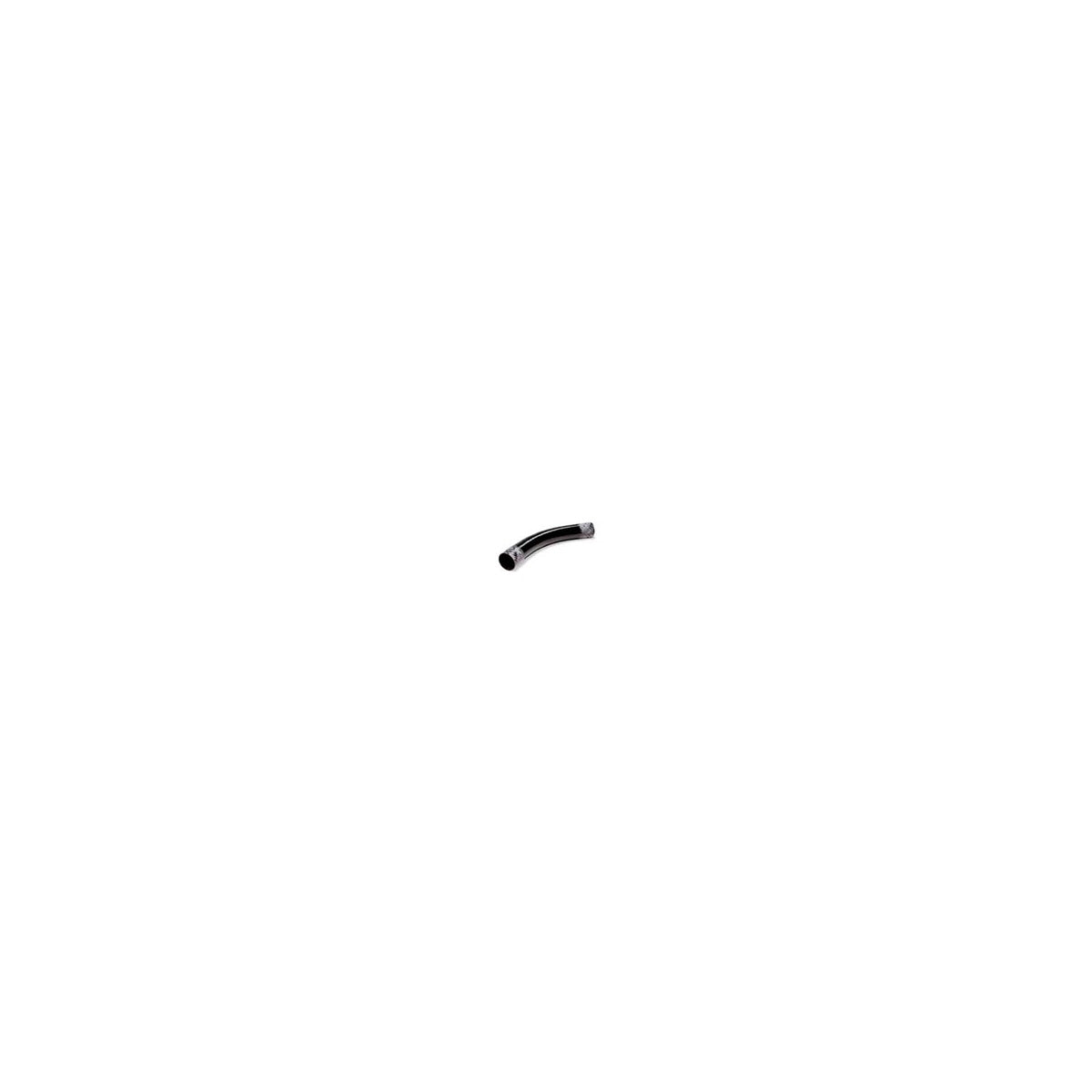

40C-HW-81-P, Conduit Elbow
SKU: #386505
Part: #40C-HW-81-P
UPC: 196306069947
40C-HW-81-P, Conduit Elbow
SKU: #386505
Part: #40C-HW-81-P
UPC: 196306069947
Description
40C-HW-81-P, Conduit Elbow - Fiberglass Electrical Conduit Fitting
The 40C-HW-81-P Conduit Elbow is a heavy wall, special radius conduit fitting designed for above-ground applications in electrical distribution systems, lighting solutions, wire and cable management, and switchgear installations. Manufactured by Champion Fiberglass, this 4-inch IPS fiberglass elbow provides a 45-degree bend with a 24-inch bend radius, suitable for utility, data center, and wastewater treatment plant conduit systems.
Specifications
- Trade Size: 4 Inch IPS
- Bend Angle: 45 Degree
- Bend Radius: 24 Inch
- End Type: Plain x Plain
- Material: Fiberglass
- Finish: Carbon Black
- Outside Diameter: 4.51 Inch
- Wall Thickness: 0.096 Inch
- Product Weight: 3.23 lbs
- Approvals: UL 2515, UL 2515A, CSA C22.2
- Applicable Standards: ISO 9001/14001, NAED, NFPA, NEMA
Features
- Manufactured using single circuit filament winding process for consistent strength and durability
- Phenolic resin system with continuous E-glass Grade “A” roving for high mechanical performance
- Carbon black finish provides ultraviolet protection for outdoor exposure
- Non-tapered sections with smooth internal bore for easy wire pulling
- Meets UL2515 fire resistance standards with flame extinguishing within 30 seconds
- Halogen-free additives reduce smoke and toxic gas emissions during fire
- Certified to ISO 9001 Quality Management and ISO 14001 Environmental Management standards
- Durably marked with angle, radius, manufacturer information, and compliant with NEMA TC 14
- Lightweight fiberglass construction reduces handling and installation effort
