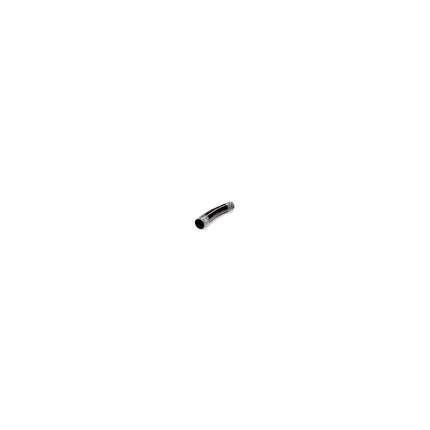

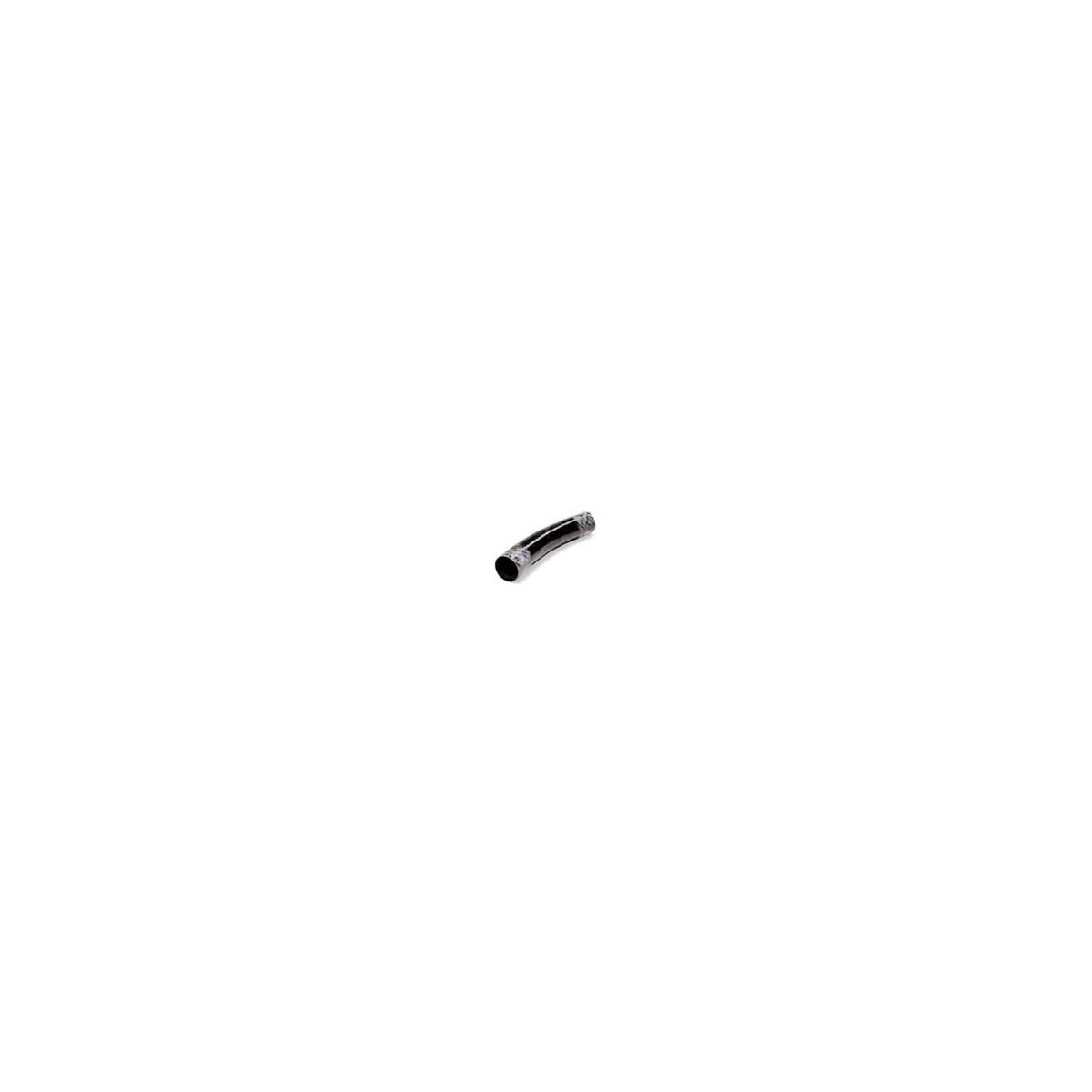

40C-HW-62-P Conduit Elbow – Fiberglass Electrical Conduit Fitting

The 40C-HW-62-P Conduit Elbow is a heavy wall, special radius conduit fitting designed for use in above-ground conduit systems. Manufactured by Champion Fiberglass, this 4-inch IPS conduit elbow features a 22-1/2 degree bend angle with a 36-inch bend radius. It is constructed from phenolic fiberglass with a carbon black finish for ultraviolet protection, making it suitable for utility, data center, and wastewater treatment plant applications. This product meets rigorous industry standards and approvals including UL 2515, UL 2515A, and CSA C22.2, ensuring compliance for electrical distributors and switchgear suppliers requiring durable and reliable wire and cable conduit solutions.

Specifications

• Material: Fiberglass (Phenolic Resin with Continuous E-glass Grade "A" Roving)
• Finish: Carbon Black (UV inhibitor)
• Trade Size: 4 Inch IPS
• Bend Angle: 22-1/2 Degree
• Bend Radius: 36 Inch
• End Type: Plain x Plain
• Outside Diameter: 4.51 Inch
• Wall Thickness: 0.096 Inch
• Product Weight: 2.02 lbs
• Approvals: UL 2515, UL 2515A, CSA C22.2
• Applicable Standards: ISO 9001/14001, NAED, NFPA, NEMA
• Operating Temperature Range: -60¬∞F to +1850¬∞F
• Fire Resistance: Meets UL2515 fire resistance test; flame extinguishes within 30 seconds after repeated flame exposure
• Electrical Characteristics: Dielectric strength 500 volts/mil, volume resistivity 3.8 x 10¹⁴ ohm-cm
• Certifications: ISO 9001:2008 Quality Management System, ISO 14001 Environmental Management System

Features

• Manufactured using single circuit filament winding process ensuring non-tapered, straight conduit sections
• Phenolic fiberglass construction provides high tensile strength (7,000 psi) and excellent dielectric properties
• Carbon black finish offers ultraviolet protection for outdoor and above-ground applications
• Halogen-free additives reduce flame spread and smoke density for enhanced safety
• Meets stringent fire resistance and flame spread standards, suitable for critical infrastructure environments
• Smooth internal bore minimizes friction and protects wire and cable integrity
• Durably marked in accordance with NEMA TC 14 with manufacturer, date, angle, and radius information
• Manufactured in the U.S.A. with quality assurance and environmental compliance certifications
• Compatible with bonded coupling and spigot joining system using high-temperature alumina-based adhesive
• Installation training and certification available for contractors on field cutting and joint assembly
