Features

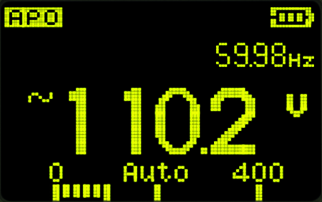

• Features best-in-class high-visibility dual-line OLED display screen, which presents information in reverse contrast to standard meters

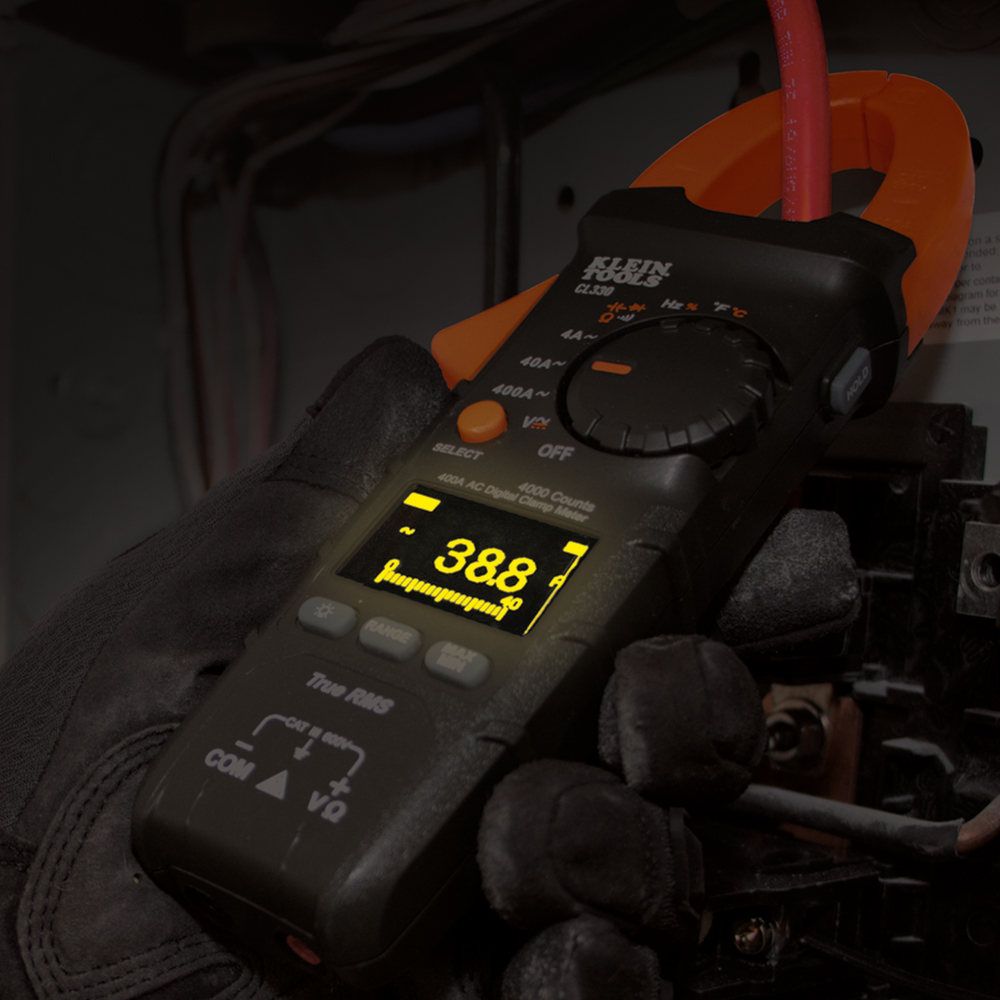

• High-visibility in reduced ambient lighting, as well as bright outdoor environments, and at acute angles to display
• Provides all common measurements such as AC current, AC/DC voltage, continuity, resistance, capacitance, frequency, diodes and temperature
• True RMS measurement technology
• Dual-mode display can present simultaneous measurements
• Bar graph emulates performance of an analog meter for visualizing fast moving events
• Rugged Klein 'tough meter' industrial design stands up to jobsite demands

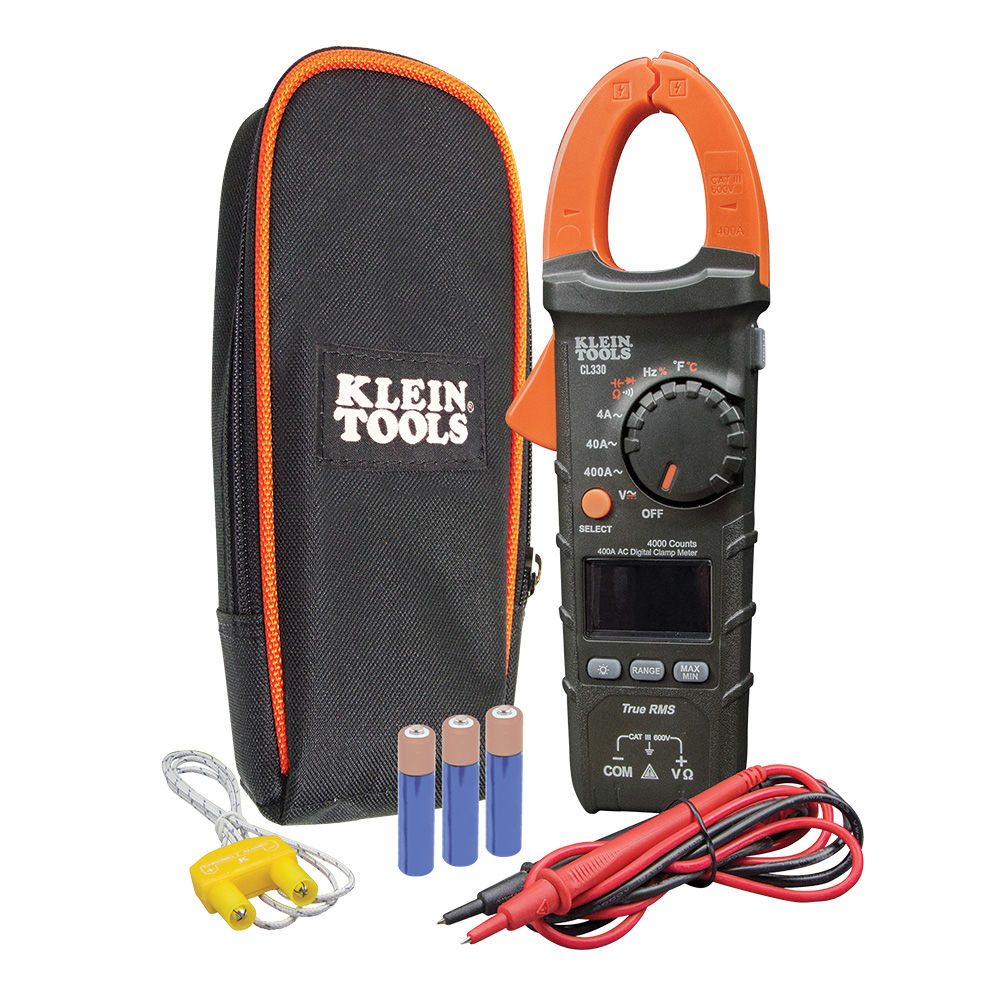

• Includes test leads, K-type thermocouple, 3xAAA batteries and a protective carrying case
• CAT III 600V safety rating

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.

Specifications

• Type: Automatically Ranging TRMS Clamp Meter
• Application: Voltage Tester
• Special Features: Best-in-Class High-Visibility Dual-Line OLED Display Screen
• Batteries: 3 x AAA
• Jaw Size: 1.12'' (28.6 mm)
• Drop Protection: 3.3 ft (1 m)
• Display: Digital LED
• Functions: AC current, AC/DC Voltage, Continuity, Resistance, Capacitance, Frequency, Diodes and Temperature
• Standard: CATIII 600V, Class 2, Double insulation
• Included: Pouch, 41'' (1041.4 mm) Test Leads, Thermocouple, and Batteries
• Overall Length: 8.70'' (221.1 mm)
• Overall Height: 1.61'' (40.9 mm)
• Overall Width: 3.02'' (76.6 mm)
• Weight: 0.90 lb (410.0 g)
