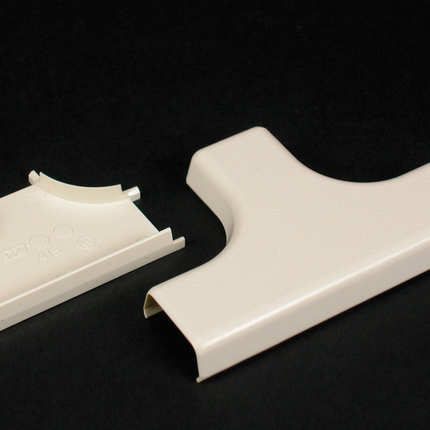

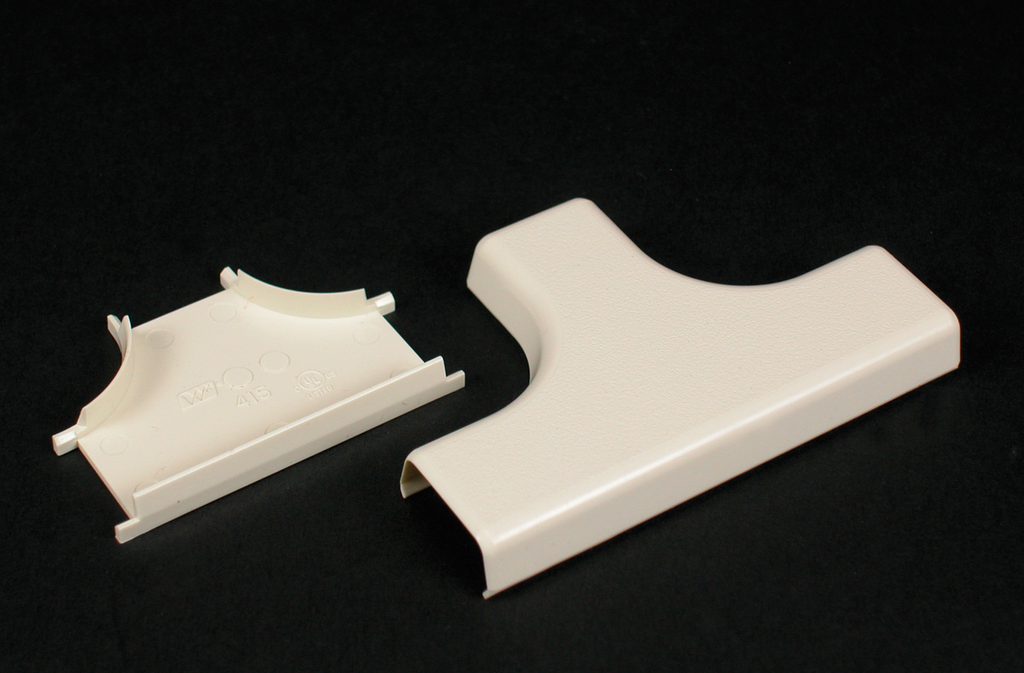

400 Tee Fitting Raceway Branching Component

The Wiremold 400 Tee Fitting is designed for branching raceways at right angles, providing a reliable solution for electrical distributors and lighting solutions providers managing wire and cable pathways. Suitable for residential and commercial applications, it supports efficient raceway installations where secure, low-profile cable routing is required.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 415-WH
• UPC Number: 786776523249
• Country of Origin: United States
• Made in USA: Yes
• Application Sector: Residential/Commercial
• Type: Raceway
• Voltage Rating: 600 V
• Width: 2.0 in
• Length: 3.187 in
• cULus Listed: Yes, Listing Number E90377
• RoHS Conformant: Yes
• Complies with UL 5A flammability requirements
• Meets NEC Article 388 and CEC Section 12-2600 standards
• NAFTA Compliant

Features

• Designed for branching raceways at right angles
• Compatible with 400, 800, 2300, and 2300BACD Series raceways
• Low-profile design facilitates installation in classrooms, offices, and hospitality environments
• Durable construction suitable for communication and power applications
• Easy to install with standard #8 pan head fasteners
