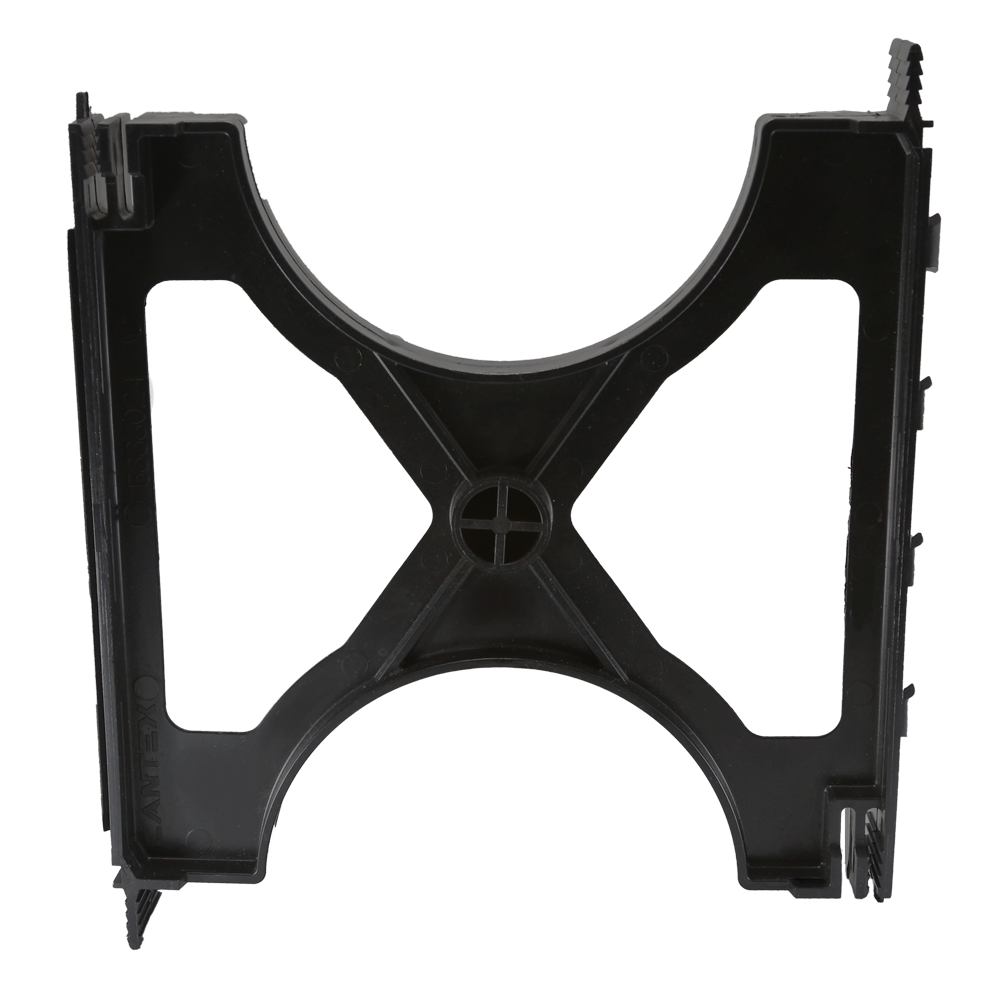

4 x 2 in. Intermediate Spacer – Electrical Conduit Spacer

The CANTEX 4 x 2 in. Intermediate Spacer is designed for use in creating concrete encased or direct bury duct banks, providing consistent and stable conduit separation. This spacer accommodates up to 4-inch diameter conduit with 2-inch spacing between conduit runs, making it suitable for electrical distributors, wire and cable installations, and switchgear suppliers requiring reliable conduit support and spacing.

Specifications

• Manufacturer: Cantex
• Manufacturer Part #: 5336019
• Product Weight: 0.2200 lbs
• Carton Quantity: 80
• Dimensions (from technical drawing):
  • Size: 4" x 2"
  • "A": 7 13/16"
  • "B": 1"
  • "C": 1 7/8"
  • "D": 6 1/2"
  • "E": 1"
  • "F": 6 5/8"
  • "G": 6 7/8"
• Material: Polystyrene
• UPC: 088700538832

Features

• Provides strong and stable conduit spacing for duct banks
• Maintains consistent 2-inch spacing between conduit runs
• Compatible with conduit up to 4 inches in diameter
• Suitable for concrete encased or direct bury applications

Downloads & Links

• Tech Drawing
• Safety Data Sheet
