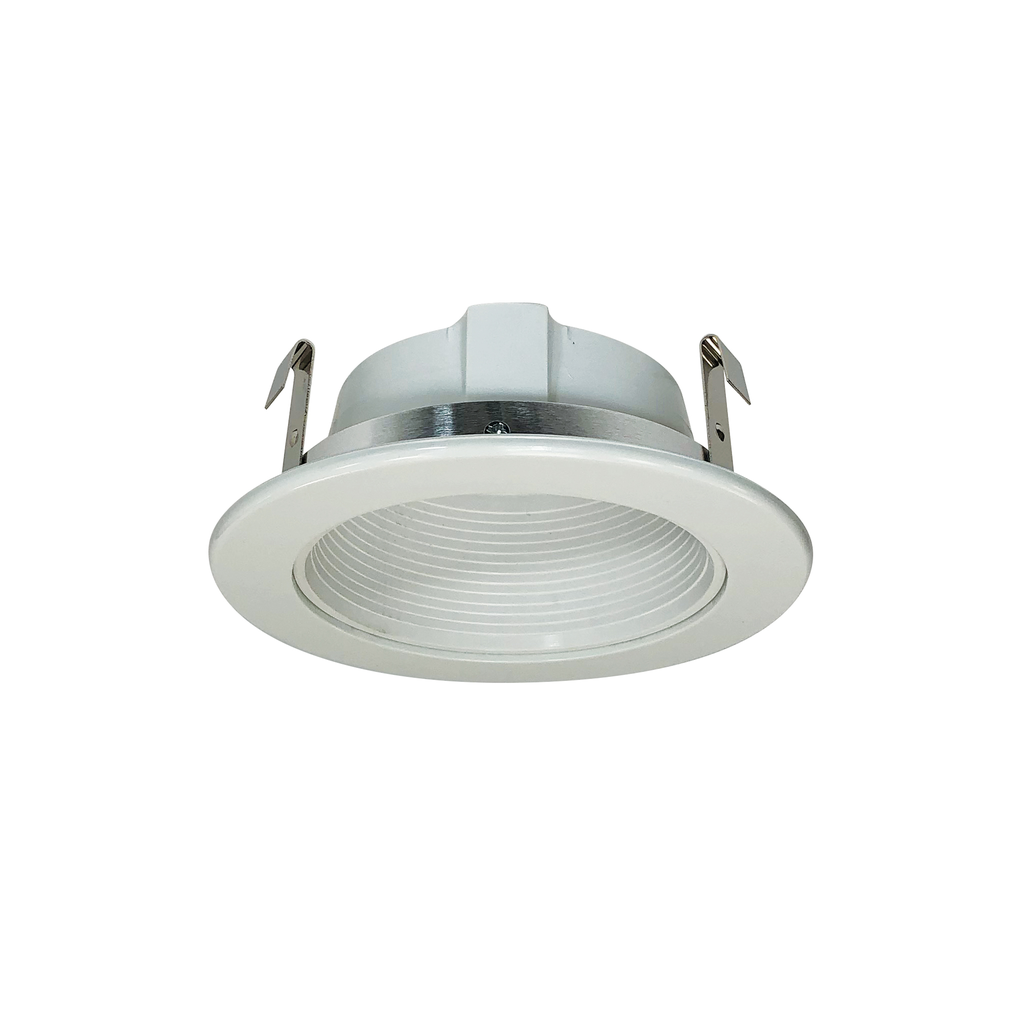

4" White Stepped Phenolic Baffle Trim w/ White Plastic Ring – Lighting Solutions

This 4" White Stepped Phenolic Baffle Trim with White Plastic Ring is designed for use in recessed lighting applications. It serves as a trim accessory compatible with various housings, providing glare reduction through its precision spun baffle with deep grooves. Suitable for electrical distributors and lighting solutions providers, this trim enhances the aesthetic and functional performance of downlighting fixtures.

Specifications

• Product Name: 4" White Stepped Phenolic Baffle Trim w/ White Plastic Ring, 124
• Manufacturer: Nora Lighting
• Manufacturer Part #: NS-40P
• Dimensions: 5 in (Width) x 5 in (Length) x 1.875 in (Height)
• Product Weight: 5.0000 lbs
• UPC: 732180441570

Features

• Trim: Precision spun 0.040" phenolic baffle with deep grooves to reduce aperture glare
• Finish: White non-reflective painted finish with white plastic ring
• Mounting: Includes three trim clips for secure installation in compatible housings
• Compatibility: Suitable for line voltage lamps up to 50W R20/PAR20 with compatible housings
• Listing: cULus Listed for Damp Location when used with compatible housing

Downloads & Links

• Spec Sheet
