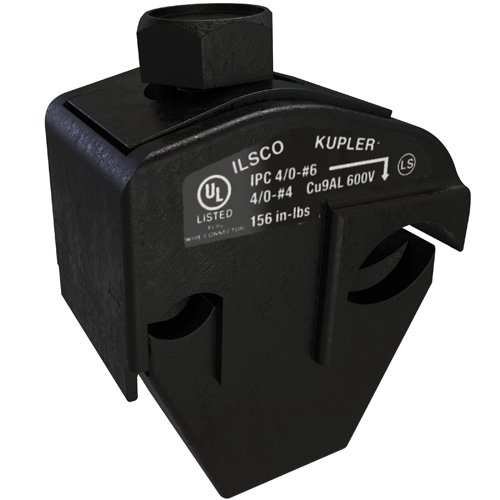

4 to 4/0 AWG Insulation Piercing Connector by ILSCO

This mechanical insulation piercing connector is designed for reliable electrical connections in wire and cable applications. Suitable for electrical distributors and switchgear suppliers, it facilitates efficient tapping and running on aluminum and copper stranded conductors within specified ranges. The connector is dual rated, UL and CSA certified, and intended for use in lighting solutions and general electrical distribution systems up to 600 V.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part #: IPC-4/0-6
• Connection Type: Mechanical
• Conductor Type: Stranded
• Number of Conductors: 2
• Material: Copper body with aluminum conductor material
• Color: Black
• Dimensions (in): Height 1.928, Width 1.431, Length 1.1179
• Voltage Rating: 600 V
• Temperature Rating: 90¬∞C
• UL / CULUS Specification: UL 486A/B Listed
• CSA Standard: C22.2 No. 65-03
• Dual Rated: Yes
• Direct Burial: No
• Carton Quantity: 12
• Connector Amperage Rating: 75 Amps (Copper), 60 Amps (Aluminum)
• Drive Type: External Hex, Size 1/2
• Insulation: Nylon
• Connector Finish: Tin
• Clamping Hardware Material: Steel, Finish Tin

Features

• Designed for use with 4/0 to #4 AWG main conductors and #6 to #14 AWG tap conductors
• Insulation piercing technology allows connection without stripping insulation
• Fully insulated connector body without need for external cover or tape
• Suitable for stranded copper and aluminum conductors compliant with building code
• Torque specification of 156 in-lbs ensures secure mechanical connection
• Single-port tap design with mechanical connection for reliable electrical performance
• UL and CSA certified for safety and compliance in electrical distribution applications
