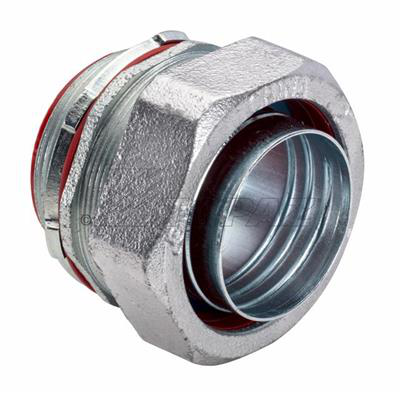

4" Straight Liquidtight Connector with Insulated Throat – Liquidtight Connector

This 4" straight liquidtight connector is designed for secure, ground, and seal applications involving liquidtight flexible metal conduit. Manufactured from malleable iron with a zinc-plated finish, it is suitable for use in hazardous and wet locations. The connector features an insulated throat to protect conductors from abrasion damage and a threaded connection for reliable attachment. It is UL listed and complies with NEC standards, making it a dependable choice for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers.

Specifications

• Material: Malleable Iron
• Connection: Threaded
• Insulation: Insulated Throat
• Environmental Conditions: Hazardous and Wet Locations
• Product Weight: 4.85 lbs
• Manufacturer Part #: 480S

Features

• Liquidtight, raintight, and oiltight sealing
• Tapered threaded male hub NPT connection
• Insulated throat protects conductors from abrasion damage
• Compact slim diameter with small turning radius
• Zinc electroplated finish for enhanced durability
• UL listed for use in Class 1 Div. 2, Class II Div. 1 and 2, and Class III Div. 1 hazardous locations

Downloads & Links

• Spec Sheet
