4" Round Low Voltage Mounting Bracket, Black – Low Voltage Mounting Solution

The Arlington Industries 4" Round Low Voltage Mounting Bracket (Model LVR1) is designed for easy and secure installation of low voltage Class 2 wiring such as communications, computer, and cable TV wiring. This mounting bracket facilitates the flush mounting of wall plates and low voltage smoke detectors in existing construction environments. It is suitable for wall or ceiling thicknesses ranging from 1/4" to 1-1/2". The bracket acts as its own template for cutout, simplifying installation for electrical distributors and lighting solutions providers handling wire and cable or switchgear supply.

Specifications

• Product Weight: 0.1000 lbs
• Material: Plastic
• Color: Black
• Manufacturer Part #: LVR1
• Adjusts to Fit Wall or Ceiling Thickness: 1/4" to 1-1/2"
• Diameter: 4.375 inches (approximate outer diameter)
• UPC: 018997581853
• UL/CSA Listed

Features

• Non-metallic construction for cost-effective and faster installation compared to metal brackets

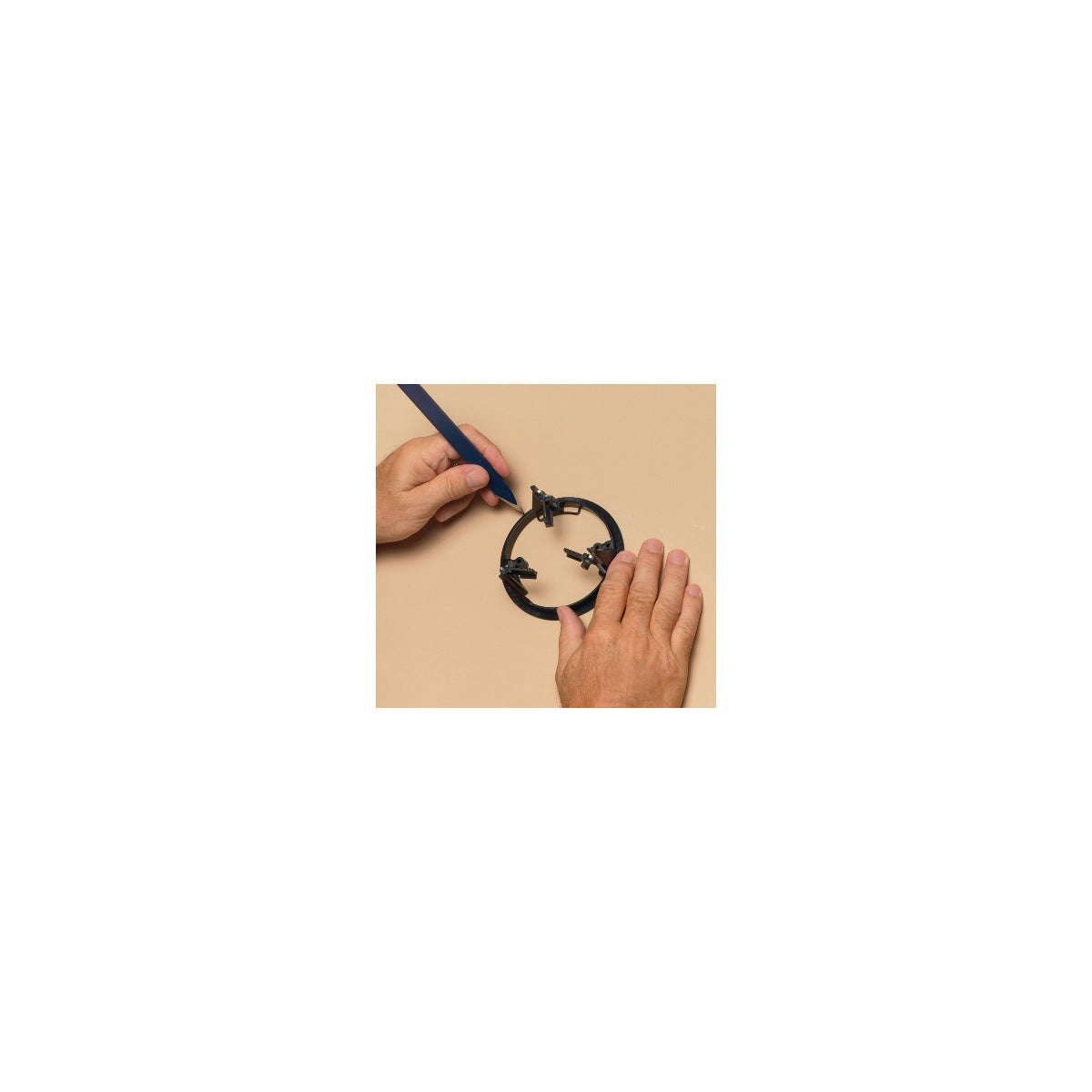

• Bracket serves as its own template for precise cutout

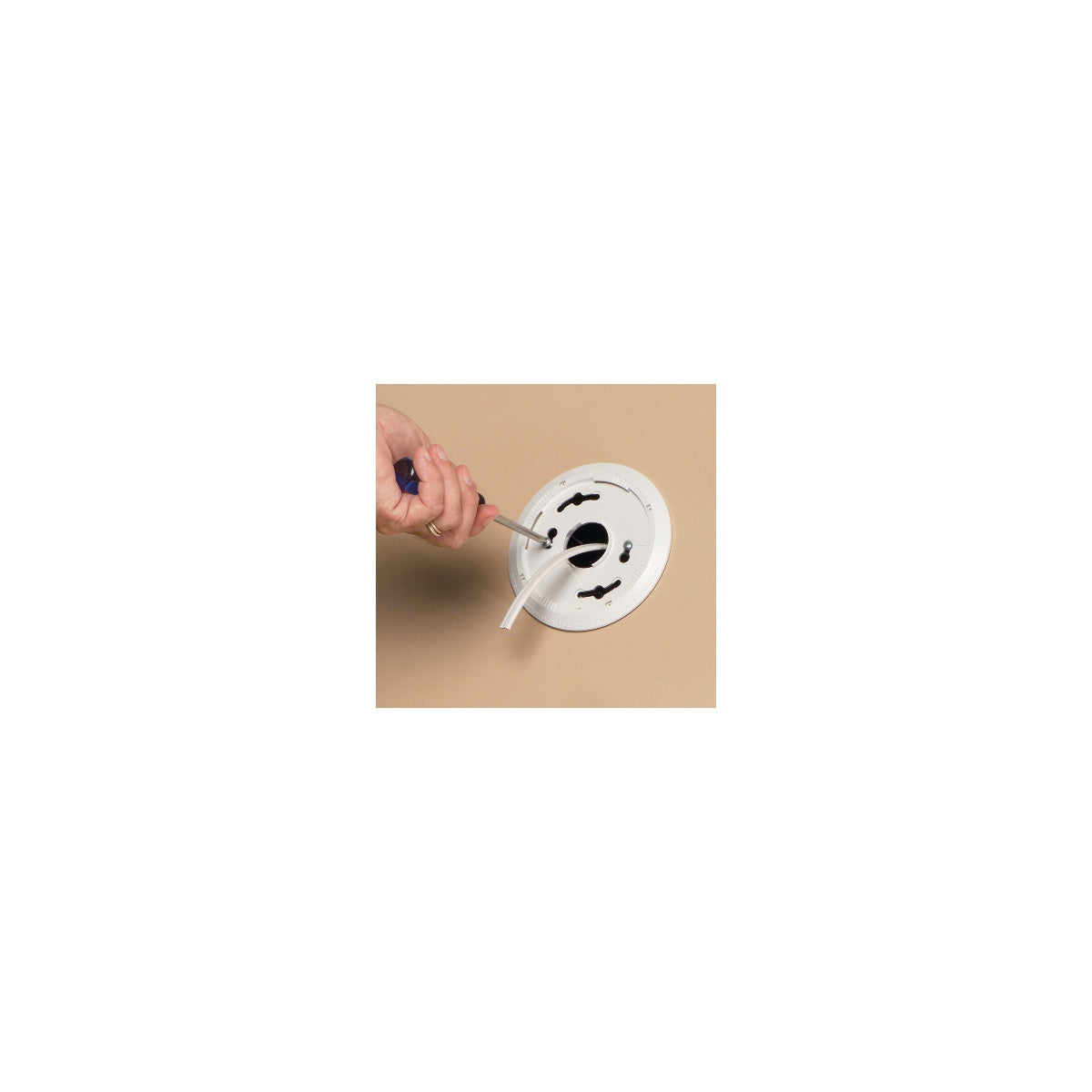

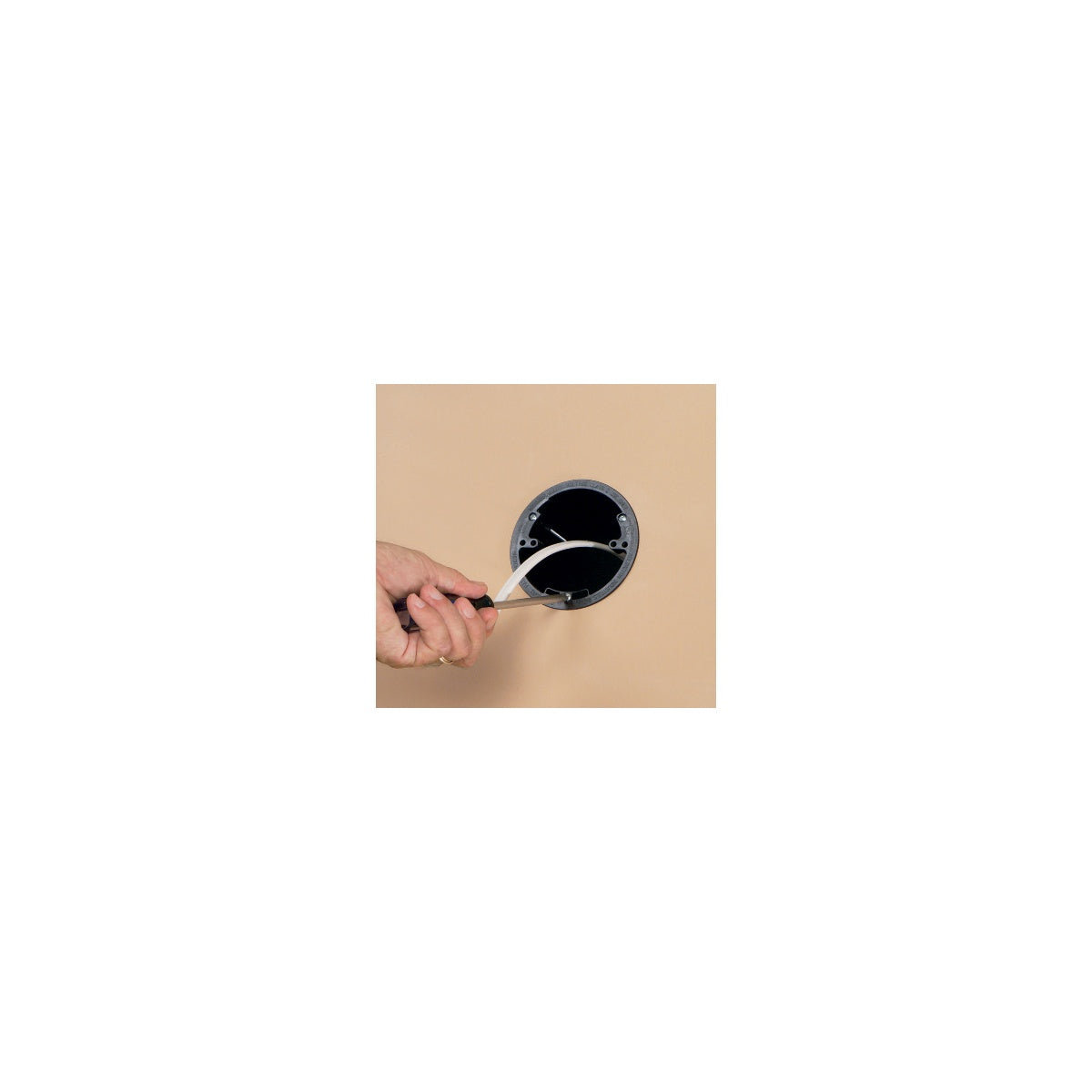

• Adjustable wings secure bracket firmly against drywall or ceiling material
• Designed for vertical or horizontal mounting

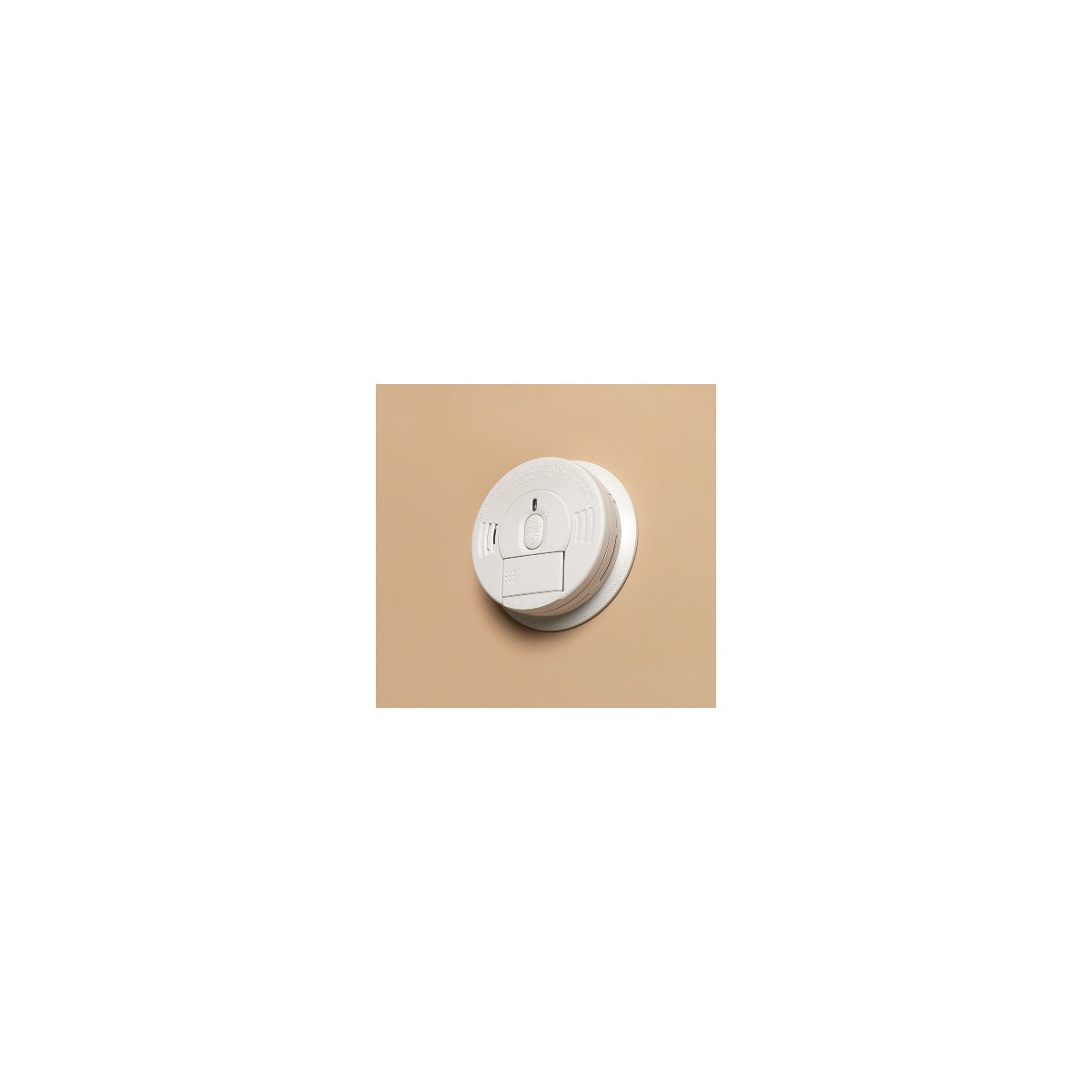

• Thin front lip and recessed screw holes allow wall plates and smoke detectors to mount flush with wall surface
• Compatible with low voltage smoke detectors and other Class 2 wiring devices
