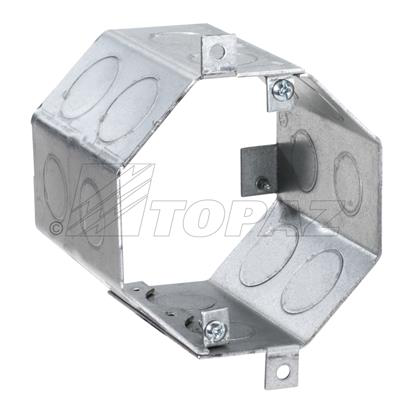

4" Octagon Concrete Ring - 3-1/2" Depth
SKU: #184107
Part: #CR273
UPC: 751338014589
4" Octagon Concrete Ring - 3-1/2" Depth
SKU: #184107
Part: #CR273
UPC: 751338014589
Next day delivery
Description
4" Octagon Concrete Ring - 3-1/2" Depth for Electrical Distributor Applications
The 4" Octagon Concrete Ring with a 3-1/2" depth is designed for use in poured concrete construction, serving as a durable electrical enclosure. Manufactured from galvanized steel, this octagon-shaped ring is suitable for installation on wooden or steel concrete forms. Once the forms are removed, the ring and conduit are embedded in concrete, with the end exposed to the room wall or ceiling for easy wire pulling. This product is ideal for electrical distributors and lighting solutions requiring secure and reliable wire and cable management in concrete environments.
Specifications
- Material: Steel
- Finish: Galvanized
- Construction: Octagon
- Depth: 3-1/2"
- Number of Outlets: 16
- Knockouts: Yes (1/2" and 3/4" side knockouts)
- Product Weight: 0.75 lbs
- Manufacturer: Southwire
- Manufacturer Part #: CR273
- UPC: 751338014589
Features
- Available with 1/2" and 3/4" side knockouts sealed against box surface to prevent wet concrete and water ingress
- Mounting tabs enable quick and easy installation on wooden or steel concrete forms
- Top cover is removable to allow pre-pour wiring work
- Designed for embedding in concrete with the end open for wire pulling
