4" Line Voltage Non-IC AT Remodel Housing - Electrical Distributor Lighting Solutions

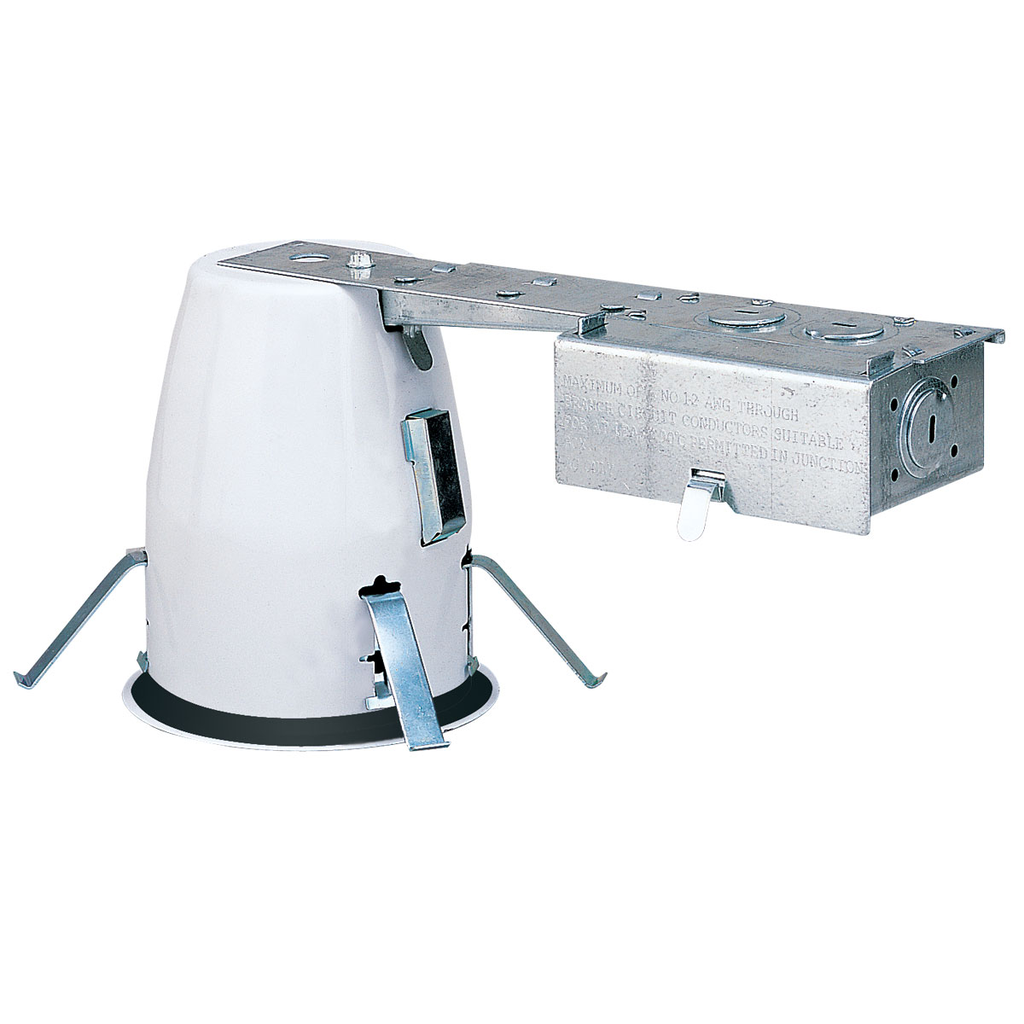

The Nora Lighting 4" Line Voltage Non-IC Air-Tight Remodel Housing (Model NSR-404QAT) is designed for installation in existing sheet rock ceilings where insulation clearance is maintained. This remodel housing provides an air-tight construction to reduce airflow through the ceiling, contributing to energy savings. It is suitable for use with Nora 4" line voltage trims and compatible with all LED retrofit lamps, making it an ideal component for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer Part #: NSR-404QAT
• Input Voltage: 120V
• Socket: Medium base
• Lamp Type: R/PAR20
• Maximum Wattage: 50W
• Housing Material: 0.050" white baked enamel one-piece drawn aluminum
• Dimensions: Width 4.25 in, Height 5.625 in, Length 11.25 in
• Ceiling Thickness Accommodation: 3/8" to 1-3/8"
• Weight: 10 lbs
• Junction Box: 15 cubic inch, 0.060" galvanized steel with six 1/2" knockouts and four Romex® pryouts
• Air Flow Restriction: <2 CFM per ASTM-283 Air-Tight requirements
• Listings: cULus listed for damp location and through branch circuit wiring

Features

• Air-tight design reduces airflow through ceiling for energy savings
• Internal UL thermal protector rated for 90°C
• Quick connect feature with UL approved connectors for easy wiring
• Installation-ready for existing sheet rock ceilings with four high tension springs for secure mounting
• Protective socket cap included to safeguard socket during ceiling painting
• Compatible with a wide range of 4" Nora trims and LED retrofit lamps
• Electrical grounding automatic when fed with grounded steel EMT pipe or flex conduit

Downloads & Links

• Spec Sheet
