4" Line Voltage Non-IC AT New Construction Housing - Nora Lighting

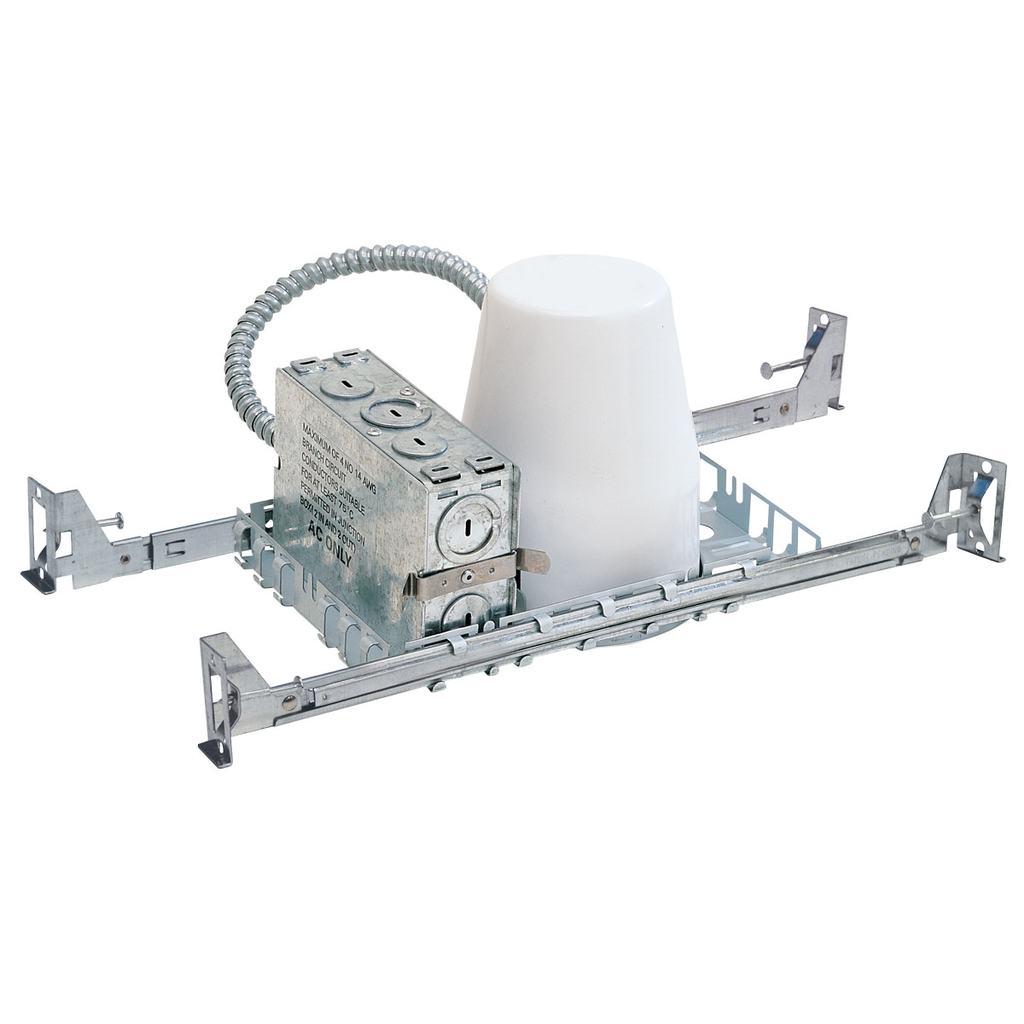

This 4" Non-IC Air-Tight Line Voltage New Construction Housing by Nora Lighting is designed for new construction applications where insulation must be kept at least 3 inches away. It provides energy savings by reducing air flow through the ceiling, making it suitable for electrical distributors and lighting solutions requiring efficient air-tight housings. Compatible with Nora 4" line voltage trims and all LED retrofits, it supports R/PAR20 lamps up to 50W.

Specifications

• Manufacturer Part #: NS-401QAT
• Input Voltage: 120V
• Socket: Medium base
• Lamp Type: R/PAR20
• Maximum Wattage: 50W
• Dimensions (W x H x L): 5.625 in x 5.75 in x 8.5 in
• Product Weight: 15.0000 lbs
• Maximum Ceiling Thickness: 1-3/8 in
• Minimum Clearance: 3" from insulation, 1/2" from adjacent building components
• Housing Material: 0.035" white baked enamel one-piece drawn steel
• Frame Material: 0.040" steel with integral bar hanger brackets
• Junction Box: 25 cubic inch, 0.060" thick galvanized steel with seven 1/2" knockouts
• Bar Hangers: Adjustable 13-3/4" to 24-1/2" with captive nails and alignment foot

Features

• Air-tight construction reduces airflow through ceiling to less than 2 CFM, meeting ASTM-283 Air-Tight requirements
• Internal UL thermal protector rated for 90°C
• cULus listed for damp location and through branch circuit wiring
• Quick connect feature with UL approved connectors for easy wiring
• Galvanized steel socket plate adjustable inside housing for optimum light performance
• Socket plate removable to convert to floating socket
• Bar hangers can be repositioned 90° for flexible installation
• Protective cap included to protect socket interior during ceiling painting
