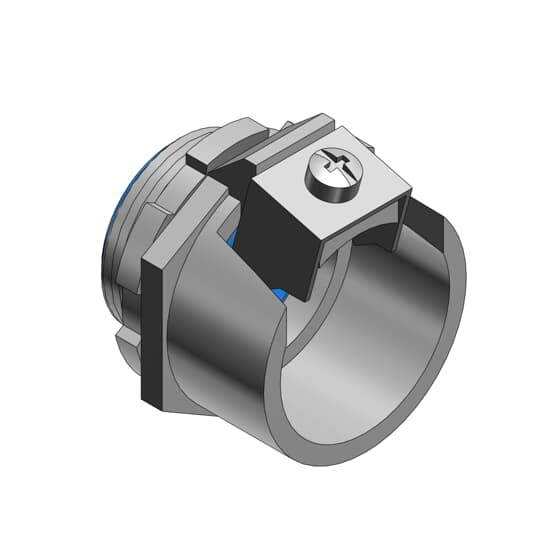

4 INCH INSUL TITE BITE CONNECTOR ST - Metal-Clad Cable Fitting

The 4 INCH INSUL TITE BITE CONNECTOR ST by Thomas & Betts is a metal-clad and armored cable fitting designed for use with armored cable and flexible metal conduit. It features a straight design with a trade size and knockout size of 4 inches, accommodating cable ranges from 4.120 to 4.560 inches. Constructed from malleable iron with zinc plating and nylon insulation, this connector provides durable and reliable connections in electrical distribution and lighting solutions, suitable for wire and cable protection in demanding environments.

Specifications

• Trade Size: 4 Inch
• Knockout Size: 4 Inch
• Cable Range: 4.120 to 4.560 Inch
• Material: Malleable Iron with Zinc Plating
• Insulation: Nylon Insulated
• Color: Metallic
• Weight: 4.75 lbs
• Application: For use with Armored Cable and Flexible Metal Conduit

Features

• Designed to resist vibration and strain with a Tite-Bite¬Æ design
• Super-fast installation and extreme pull-out resistance due to angled saddle design
• Durable construction from malleable iron with zinc plating for corrosion resistance
• Nylon insulated lining protects conductor insulation
• UL Listed for Metal Clad Cable (MCI) and Interlocked Armor Ground Type Metal Clad Cable (MCI-A)
• Suitable for use in electrical distribution systems as a reliable cable fitting
