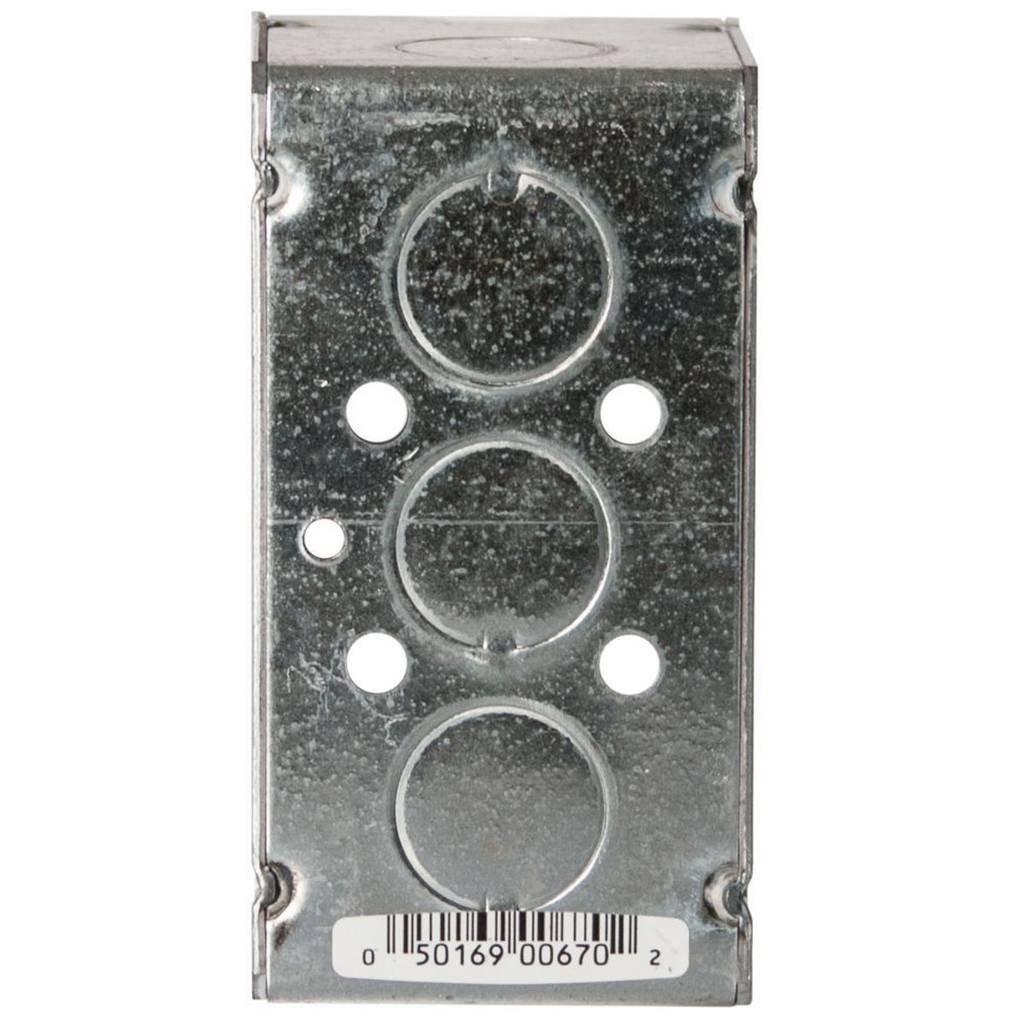

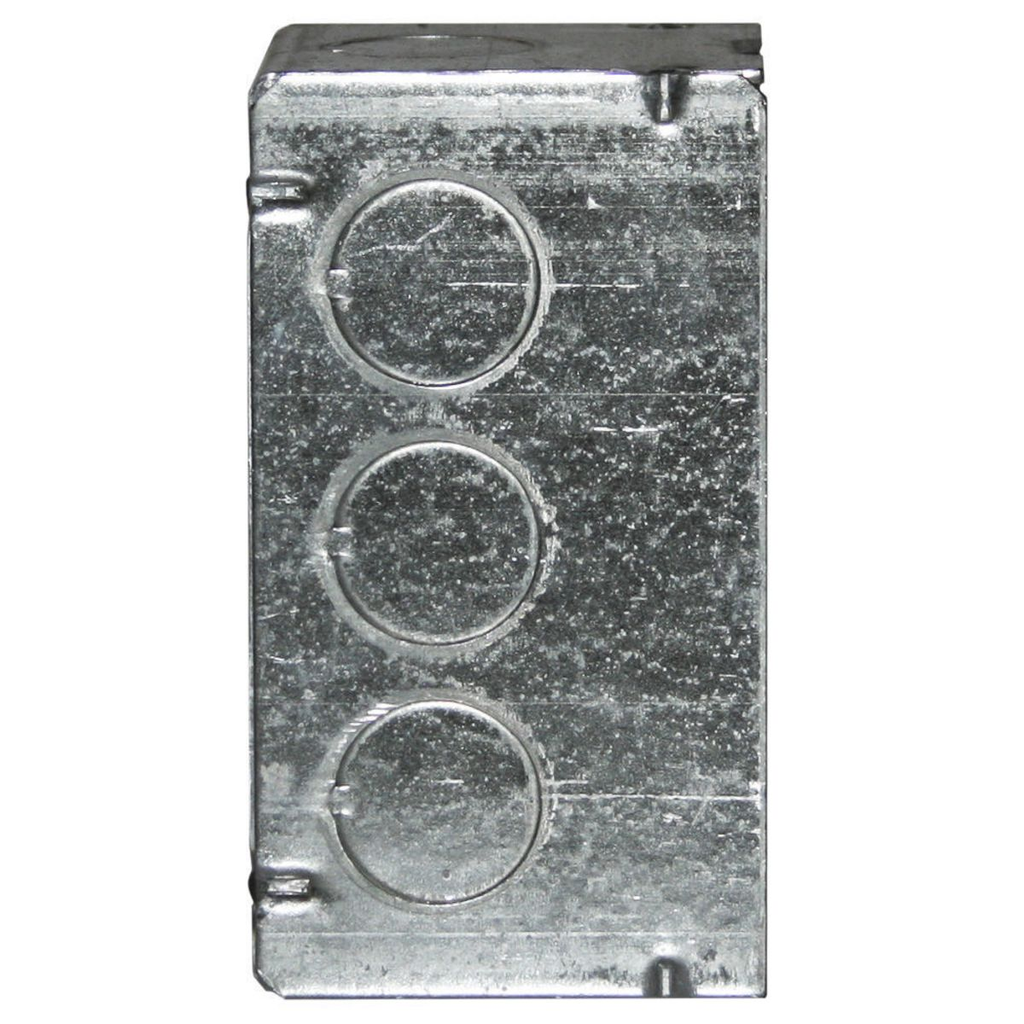

4 in. x 2 in. Handy Box, Welded, 2-1/8 in. Deep, Eleven 1/2 in. KO's
SKU: #122401
Part: #8670
UPC: 050169006702
4 in. x 2 in. Handy Box, Welded, 2-1/8 in. Deep, Eleven 1/2 in. KO's
SKU: #122401
Part: #8670
UPC: 050169006702
Description
4 in. x 2 in. Handy Box, Welded – Utility Box Surface Mount
This 4 in. x 2 in. Handy Box is a welded, single-gang electrical box designed for surface mounting. It is suitable for use by electrical distributors and switchgear suppliers in wiring and lighting solutions applications requiring a compact, durable enclosure. The box features eleven 1/2 inch knockouts for flexible wiring entry and is constructed from steel for strength and reliability.
Specifications
- Dimensions: 4.00 in. (height) x 2.11 in. (width) x 2.125 in. (depth)
- Material: Steel
- Color: Gray
- Number of Gangs: 1
- Product Weight: 0.6090 lbs
- Manufacturer: RACO
- Manufacturer Part Number: 8670
- Country of Origin: China
- Box Volume: 16.5 in³ (270.4 cm³) (from dimensional sheet)
- UPC: 050169006702
Features
- Welded construction enhances durability and structural integrity
- Eleven 1/2 inch knockouts provide versatile wiring options
- Galvanized finish for corrosion resistance (as per dimensional drawing notes)
- UL Listed for safety and compliance
