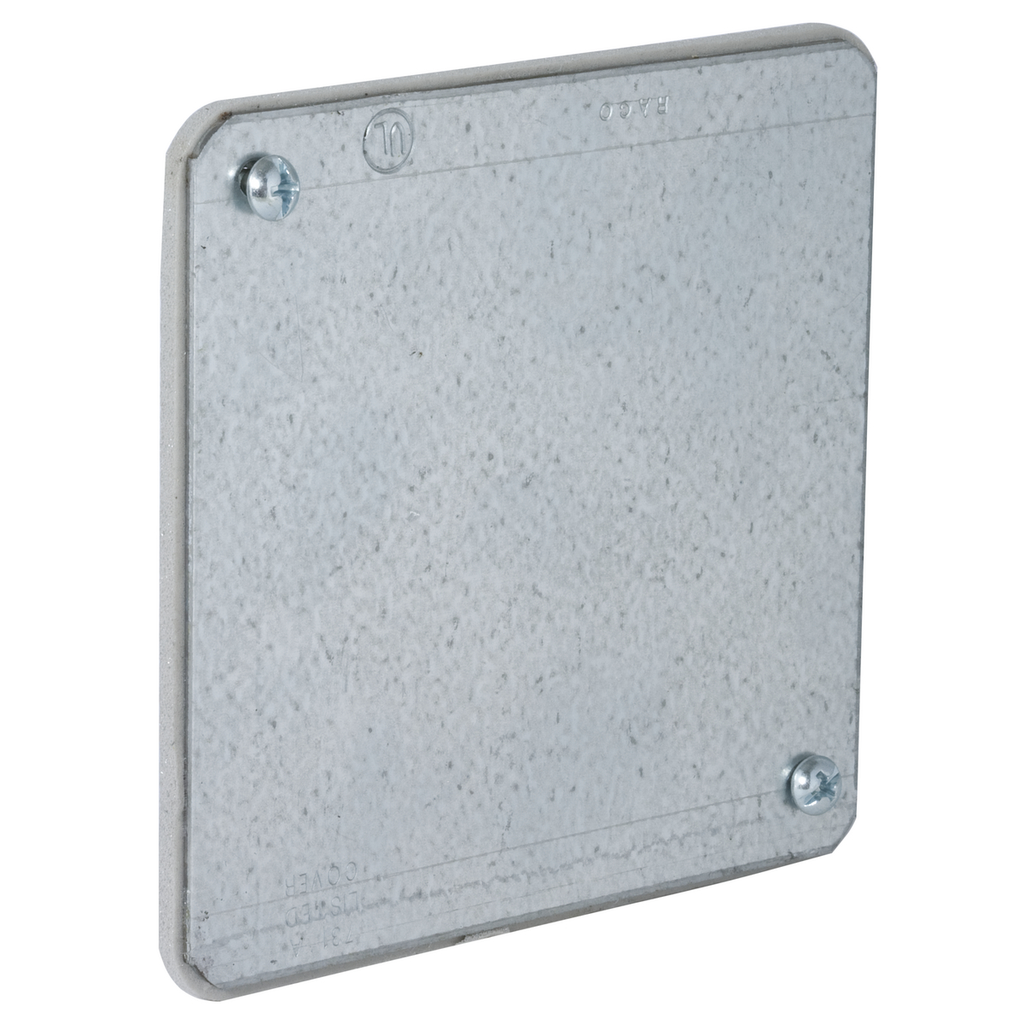

4 in. Square Plenum Gasketed Cover - Electrical Enclosure Cover

The 4 in. Square Plenum Gasketed Cover is designed for use with 4-inch square plenum boxes in above-ceiling electrical installations. It provides an airtight enclosure essential for maintaining plenum integrity in HVAC and electrical systems. This cover is suitable for electrical distributors and switchgear suppliers requiring reliable sealing solutions for wire and cable management in plenum spaces.

Specifications

• Manufacturer: RACO
• Manufacturer Part #: 762
• Material: Zinc, pre-coated steel
• Width: 4.00 in
• Height: 4.00 in
• Thickness: 1/16 in. steel cover
• Weight: 0.327 lbs
• Country of Origin: China
• UPC: 050169007624

Features

• Gasketed cover for airtight sealing of 4 in. square plenum boxes
• Constructed from pre-galvanized steel for durability
• Captive, combo-head screws for easy installation
• Acceptable for use in 2-hour fire rated walls
• Ground screw holes omitted to maintain plenum seal

Downloads & Links

• Catalog Full Asset Reference 2
• Spec Sheet
• MSDS
• Sell Sheet Asset Reference
• Sales Drawing Asset Reference
• Terms and Conditions Asset Reference
• Catalog Full Asset Reference 1
