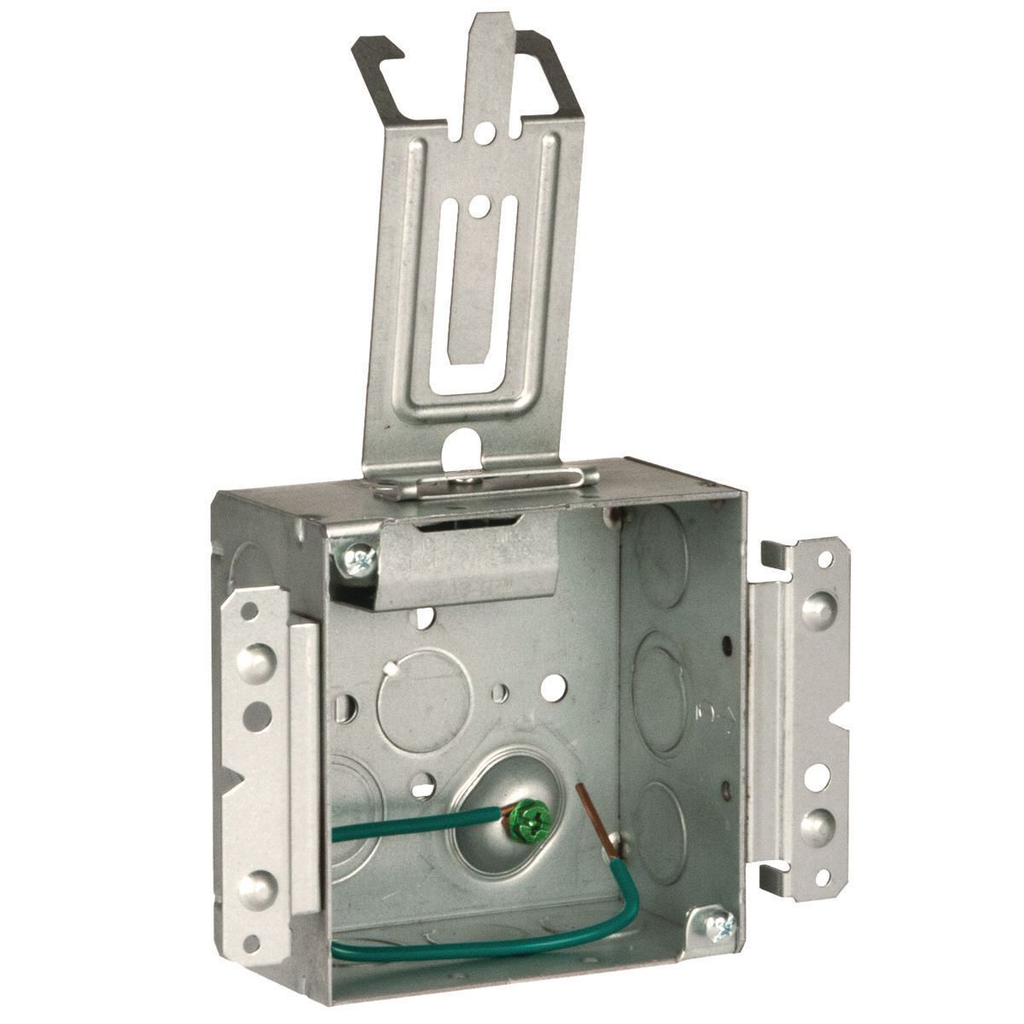

4 in. Square Box Welded with STAB-IT® Connector - Electrical Outlet Box

This 4 in. square electrical box with welded STAB-IT® Series connector is designed for efficient installation in electrical distribution and lighting solutions. It supports flexible, MC, MCI, MCI-A, AC, and HCF cable types, making it suitable for wire and cable management in commercial and residential switchgear applications. The box features a raised ground and an 8 in. #12 solid copper pigtail, ensuring grounding compliance and safety.

Specifications

• Material: Steel
• Color: Gray
• Dimensions: 4 in. (size) x 5.86 in. (width) x 2.125 in. (depth)
• Actual Depth: 2.64 in.
• Number of Gangs: 2
• Capacity: 30.3 cubic inches
• Weight: 1.212 lb.
• Raised Ground: Yes
• Type: Box
• Series: STAB-IT¬Æ Series
• Fire Resistance: Acceptable for use in 2-hour fire rated walls
• UL Listed
• Country of Origin: China
• Manufacturer: RACO
• Manufacturer Part #: 232MSCM
• Knockouts: Seven 1/2 in. and four 1/2-3/4 in. TKO¬Æ combination knockouts
• Bracket Type: M bracket for metal or wood studs

Features

• Welded steel construction with UBS support and preset bend points for wall thickness 2-1/2 to 6 in.
• STAB-IT¬Æ connector and cable management clip for secure cable installation
• Designed for quick installation of flex, MC, MCI, MCI-A, AC, and HCF cables
• Combination Phillips/slotted screw heads for versatile mounting
• Includes 8 in. #12 solid copper ground pigtail for grounding
• TKO¬Æ knockouts provide design and installation flexibility
