4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's & Five TKO's, Raised Ground, Old-Work
SKU: #120576
Part: #232-OW
UPC: 050169502327
4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's & Five TKO's, Raised Ground, Old-Work
SKU: #120576
Part: #232-OW
UPC: 050169502327
Description

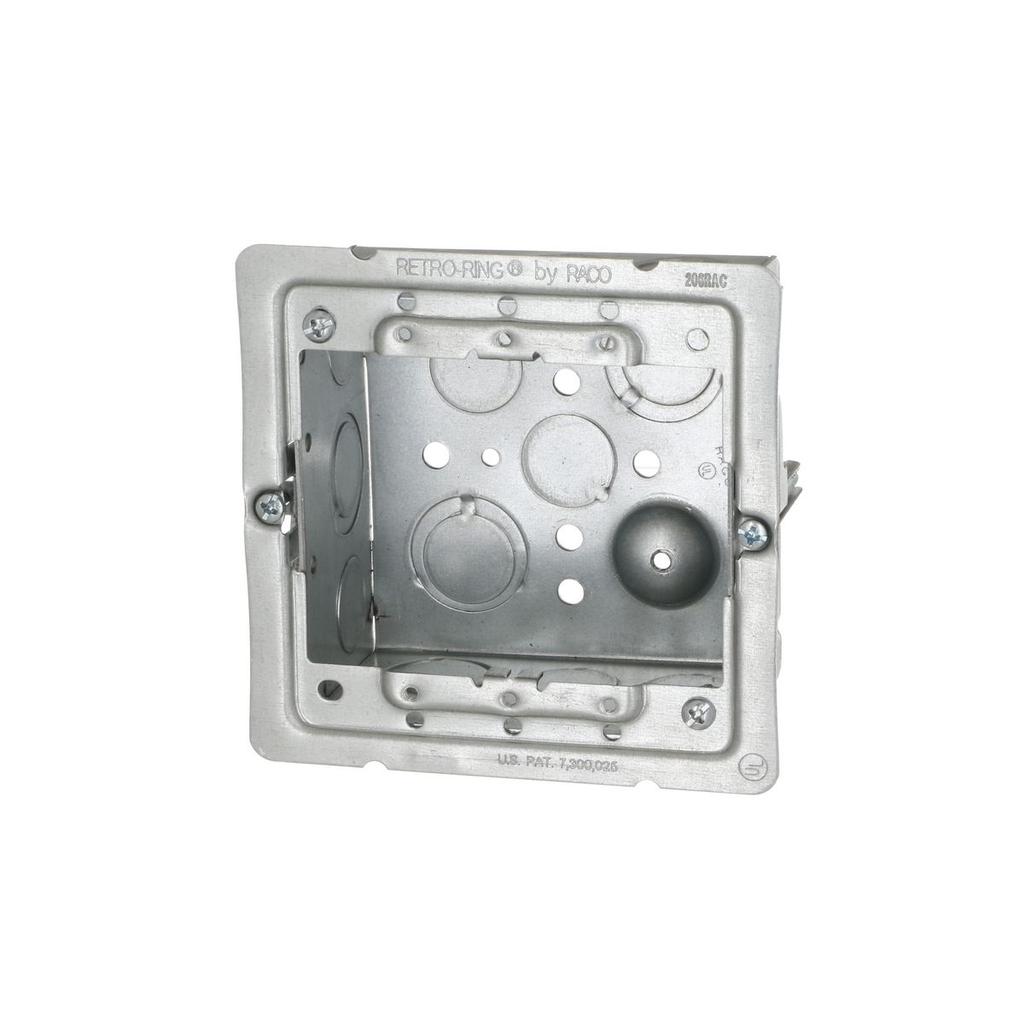

4 in. Square Box, Welded, 2-1/8 in. Deep - Deep Outlet Box
This 4 in. square welded steel box is designed for old-work electrical applications, providing a reliable solution for mounting one or two devices without the need for stud support. Ideal for electrical distributors and contractors specializing in lighting solutions, wire and cable installations, or switchgear supply, this box facilitates quick and secure installation in existing walls.
Specifications
- Material: Steel
- Color: Gray
- Depth: 2.125 inches
- Width: 4.88 inches
- Height: 4.75 inches
- Number of Gangs: 2
- Cubic Capacity: 30.3 cu. in.
- Raised Ground: Yes
- Wiring System: Conduit
- Fire Resistance: Yes (Acceptable in 2-hour fire rated walls)
- Drawn or Welded: Welded
- Certified Listed: UL Listed
- Country of Origin: Mexico
- Product Weight: 1.12 lb.
Features
- Designed for old work applications with mounting bracket
- Combination screw heads for quick installation
- Includes ten 1/2 inch knockouts and five combination (1/2 - 3/4 inch) TKO knockouts
- Raised ground for enhanced safety
- 4 inch mounting bracket included
- UL Listed for safety and compliance
- UPC barcoded for inventory and ordering
