4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, UBS, HM Bracket
SKU: #120634
Part: #232HWP
UPC: 050169500361
4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, UBS, HM Bracket
SKU: #120634
Part: #232HWP
UPC: 050169500361
Description
4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, UBS, HM Bracket - Electrical Outlet Box
This 4-inch square welded steel box is designed for electrical installations requiring durable and reliable outlet boxes. It is suitable for use in conduit wiring systems and compatible with metal or wood stud framing. The box features a raised ground and meets UL listing standards, making it appropriate for use in lighting solutions and wire and cable distribution applications. It is also acceptable for installation in 2-hour fire-rated walls, supporting safety and compliance requirements for electrical distributors and switchgear suppliers.
Specifications
- Material: Steel
- Depth: 2.125 in
- Width: 4.91 in
- Height: 4.03 in
- Cubic Capacity: 30.3 cu. in
- Raised Ground: Yes
- Knockouts: Ten 1/2 in. and six TKO (1/2 - 3/4 in. combination)
- Bracket Type: H, for Metal or Wood Studs
- Bracket Setback: 0.375 in
- Drawn or Welded: Welded
- Weight: 0.97 lb
- Wiring System: Conduit
- UL Listed: Yes
- Fire Resistance: Yes, acceptable in 2-hour fire-rated walls
- Country of Origin: Mexico
- Manufacturer: RACO
- Manufacturer Part #: 232HWP
Features

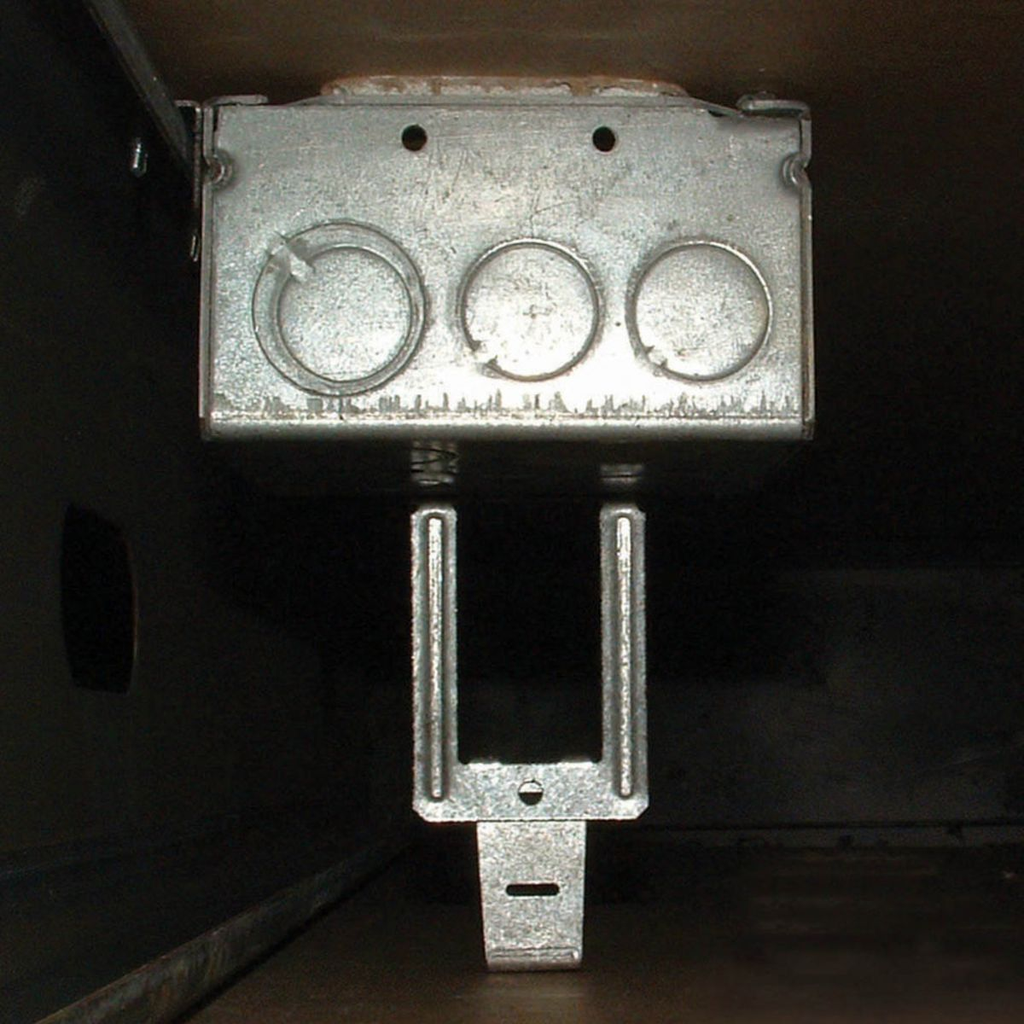

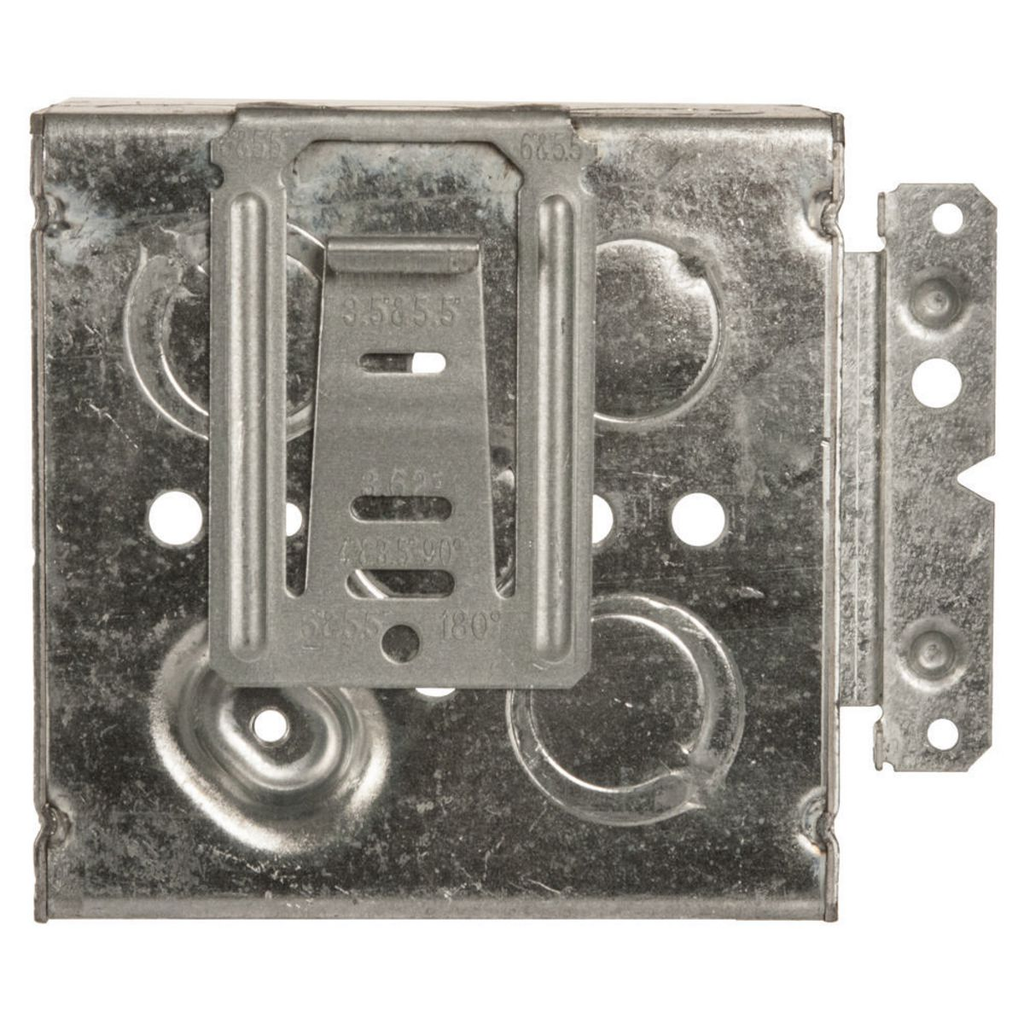

- UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in to 6 in thickness
- Combination screw heads allow quick installation
- Welded construction enhances durability
- Raised ground ensures proper grounding for electrical safety
- Acceptable for use in 2-hour fire-rated walls, supporting safety compliance
