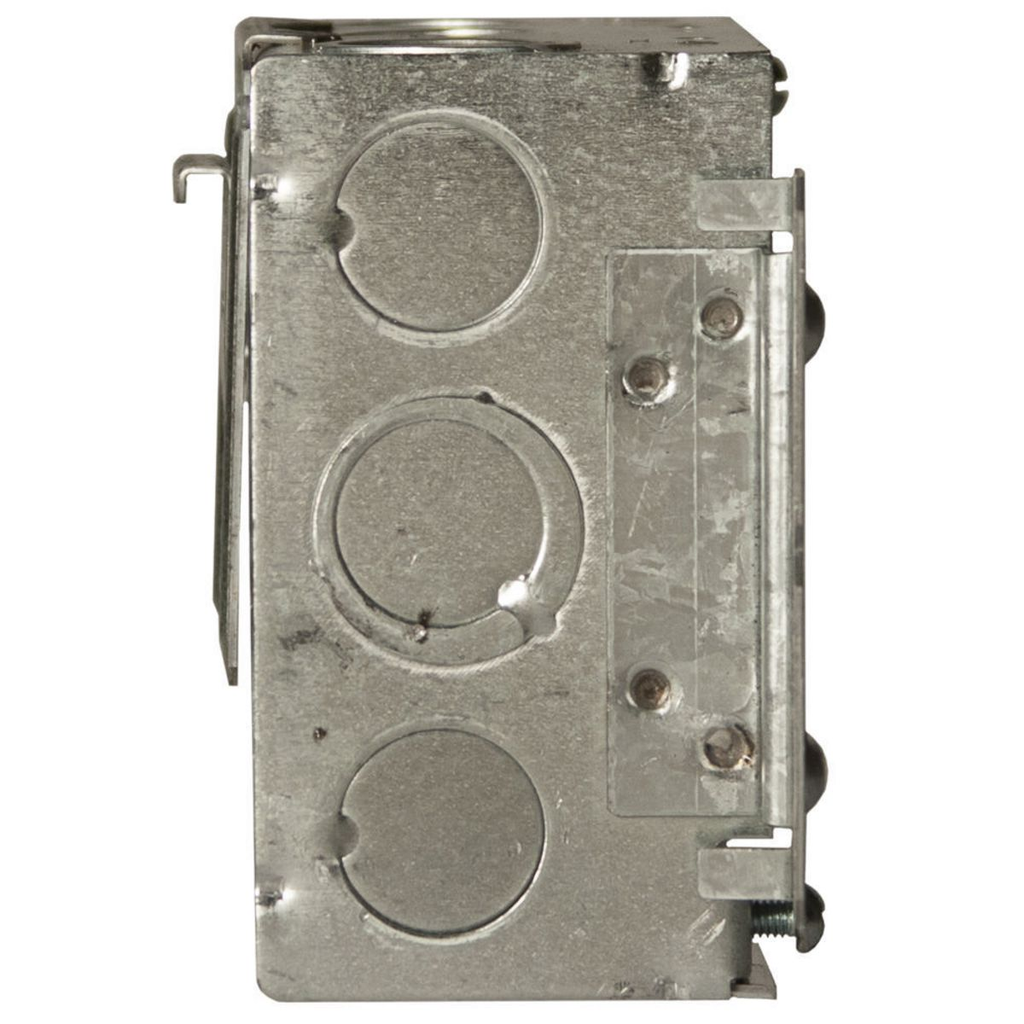

Features

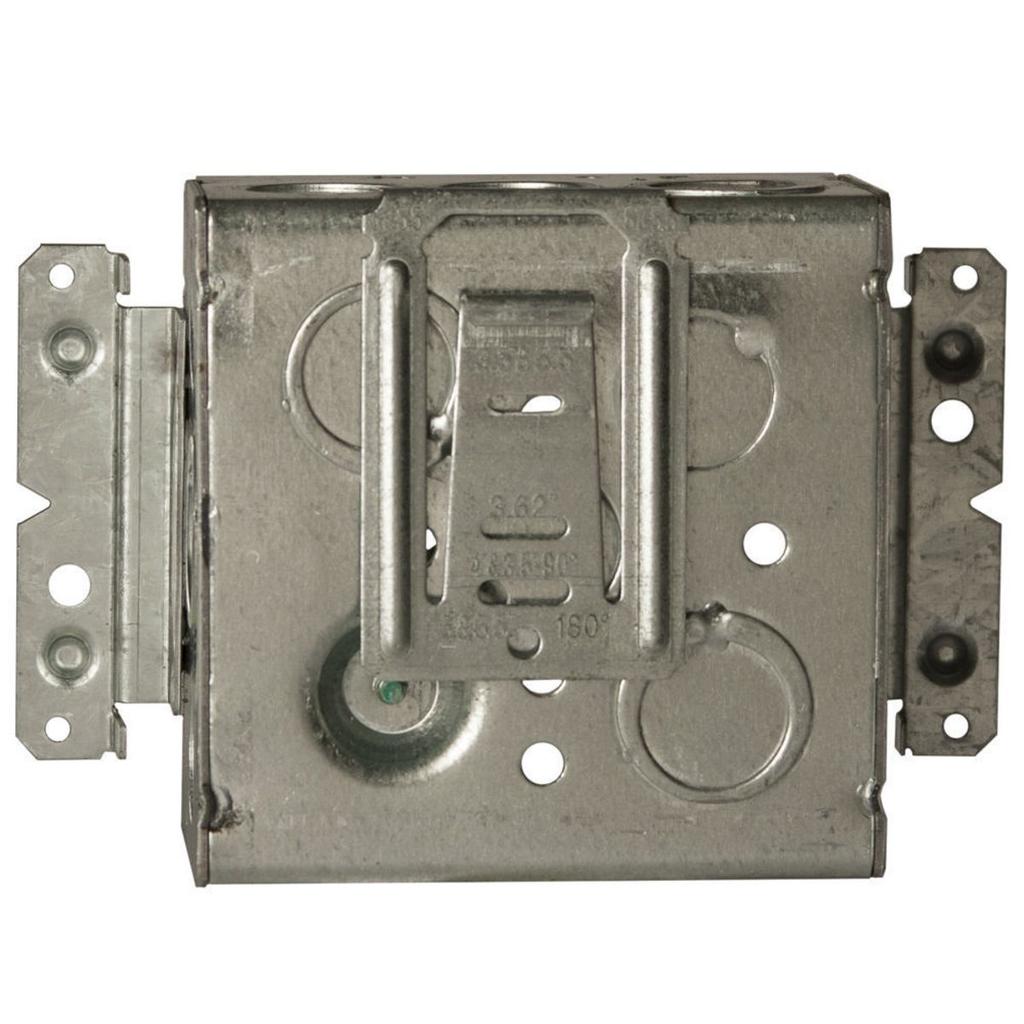

• UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in - 6 in. thickness, H/M
• Combination screw heads allow quick installation
• Welded construction
• Ten 1/2 in. knockouts and six TKO knockouts
• UL Listed
• 30.3 cu. in. capacity
• Raised ground, 8 in. #12 Solid Copper pigtail
• Acceptable in 2-hour fire rated walls

Specifications

• Country of Origin: Mexico
• Actual Depth: 2.676 in
• Buy American Compliant: Contact Manufacturer
• Width: 5.860 in
• Each - Width: 5.860 in
• Height: 4 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 30.3 cu.in
• Depth: 2.125 in
• Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
• Standard: UL Listed
• Type: Box
• Bracket Type: M, for Metal or Wood Studs
• Weight: 1.03 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: 4SQBX O/W 2-1/8DP 1/2-3/4TKO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: R
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D010D0102
• Bracket Setback: 0.375
• Drawn or Welded: Welded
• Fire Resistance: Yes
• Raised Ground: Yes
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 2-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 8.5x20.875x9 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 22.45 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169500040
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169500049
• Pallet - Number of Sub Packs: 55
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169500045
• Pallet - Total Units: 1375 EA
• Pallet Height: 49.875 in
• Pallet Length: 48.000 in
• Pallet Weight: 1461.250 lb.
• Pallet Width: 42.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
