4 in. Square Box, Welded, 1-1/2 in. Deep with Eight 1/2 in. KO's & Five TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket
SKU: #120098
Part: #189H
UPC: 050169500002
4 in. Square Box, Welded, 1-1/2 in. Deep with Eight 1/2 in. KO's & Five TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket
SKU: #120098
Part: #189H
UPC: 050169500002
Description

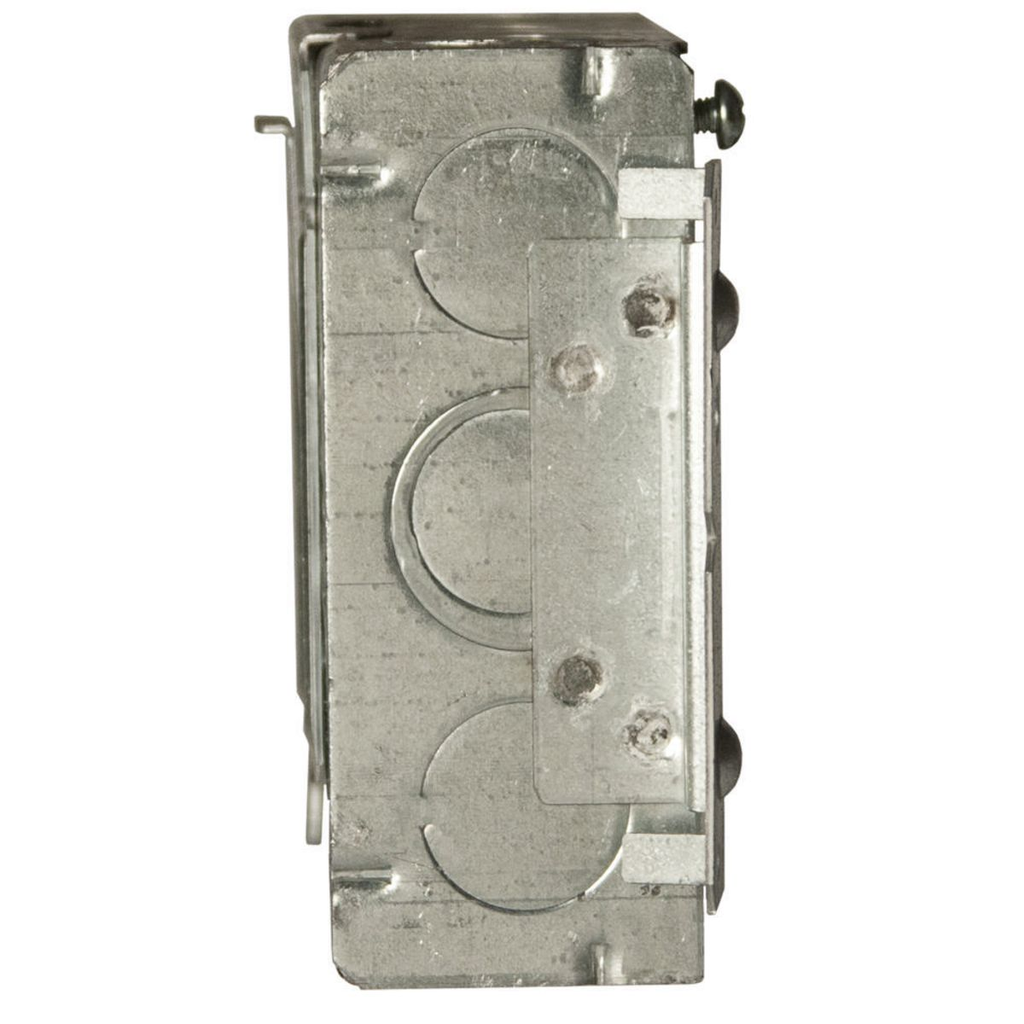

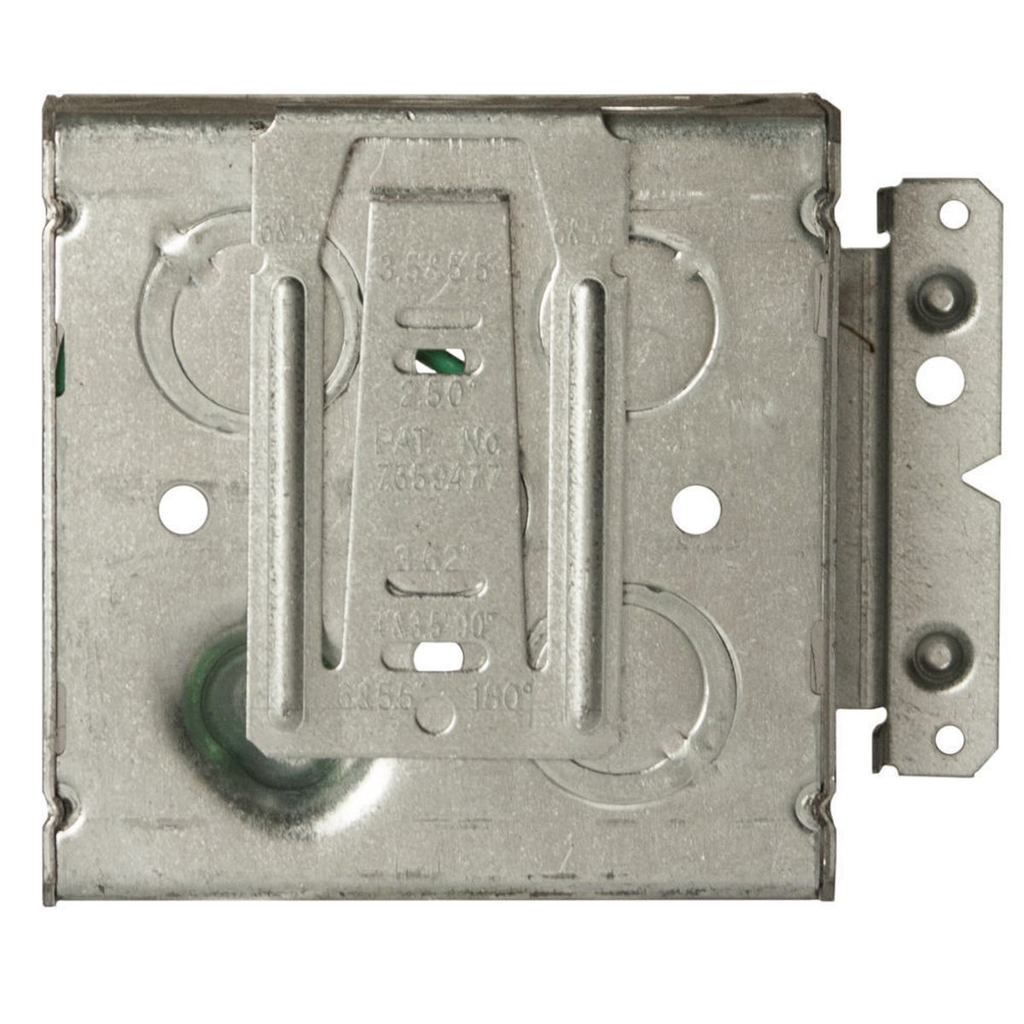

4 in. Square Box, Welded, 1-1/2 in. Deep with Eight 1/2 in. KO's & Five TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket – Electrical Outlet Box
This welded 4-inch square box is designed for electrical installations requiring a shallow outlet box. It features multiple knockouts (KO's) for flexible wiring options and includes an 8-inch #12 solid copper pigtail for grounding. Suitable for use by electrical distributors and contractors as part of lighting solutions, wire and cable management, and switchgear assemblies.
Specifications
- Depth: 1.5 inches
- Width: 4.913 inches
- Material: Steel
- Color: Gray
- Number of Gangs: 2
- Product Weight: 0.7030 lbs
- Made in USA: Yes
- Country of Origin: United States
- Manufacturer: RACO
- Manufacturer Part #: 189H
Features
- Welded construction for durability and secure installation
- Eight 1/2 inch knockouts and five TKO's for versatile conduit entry
- Raised ground for enhanced electrical safety
- Includes 8-inch #12 solid copper grounding pigtail
- HM bracket and UBS design for mounting flexibility
