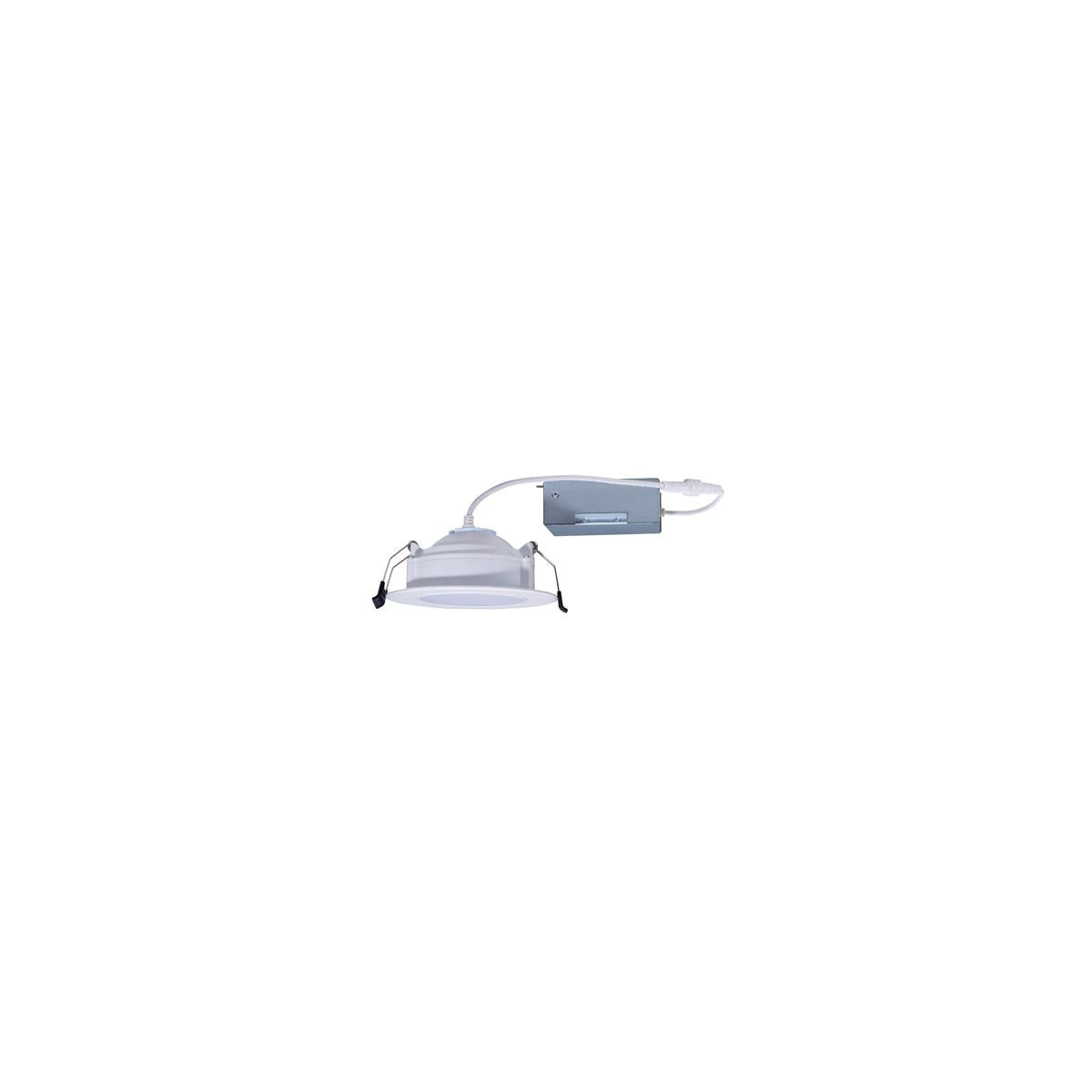

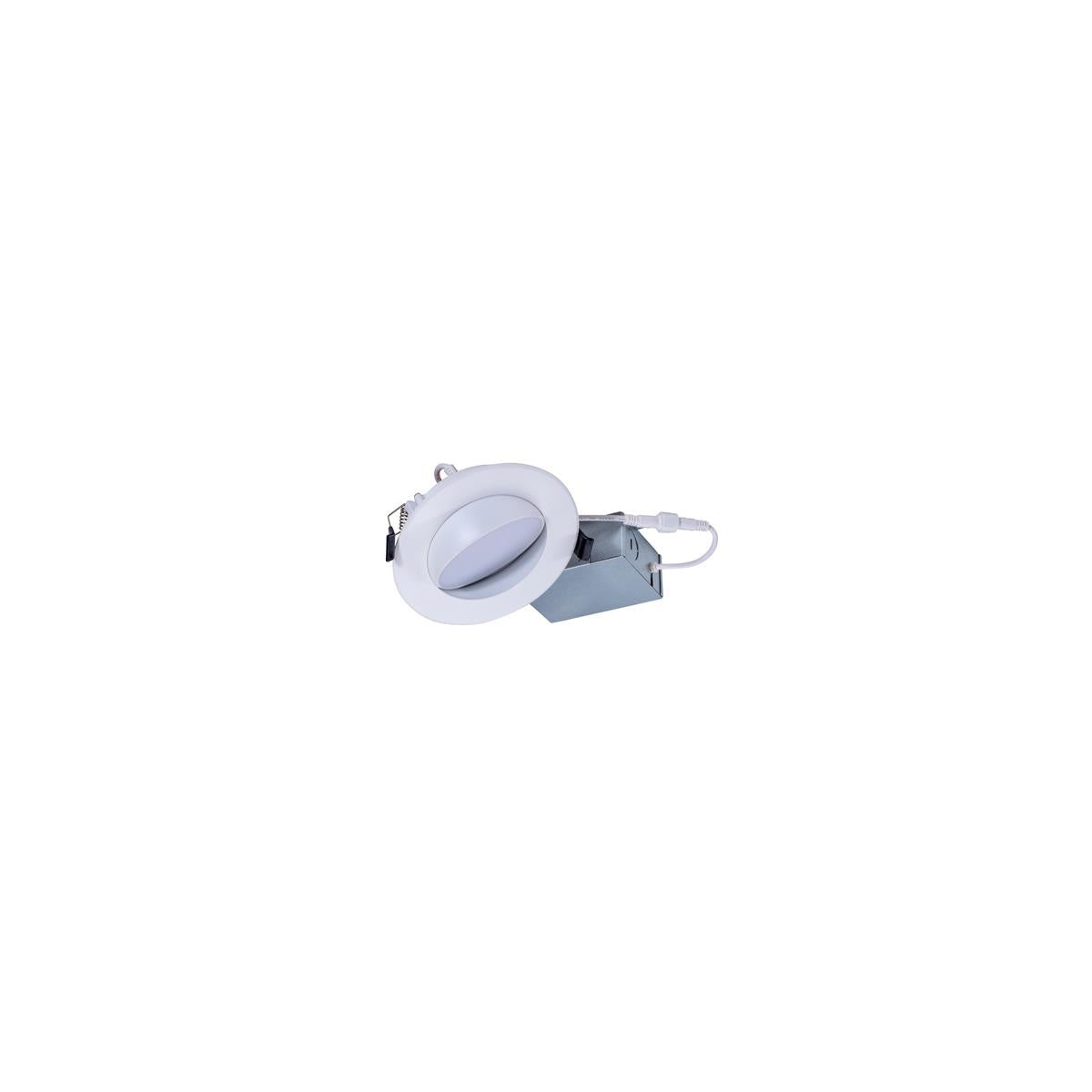

4" Gimbal CCT Selectable LED Slim Fit Recessed Downlight, 15W

The Southwire 4" Gimbal CCT Selectable LED Slim Fit Recessed Downlight, 15W, is designed for versatile lighting applications in commercial, residential, and multi-family settings. This ultra-low profile downlight features 5 color temperature settings (2700K, 3000K, 3500K, 4000K, and 5000K) selectable at installation, allowing precise ambiance control. Its 360° rotation and 30° tilt provide focused lighting where needed, making it suitable for kitchens, living areas, basements, and hallways. The product supports easy installation with spring clips and quick connects, compatible with new construction and retrofit projects. It is airtight certified and meets California Energy Commission’s High Efficacy LED light source requirements, making it a reliable choice for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: RDL/4GIM/15/5CTS-46
• Wattage: 15W
• Input Voltage: 120V, 60Hz
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (CCT Selectable)
• Lumens: 1,000
• Beam Angle: 100°
• CRI: 90
• Power Factor: >0.95
• THD: <16%
• Dimmable: Down to 5%
• Functional Life (L70): 50,000 hours
• Location Rating: Damp
• Ambient Operating Temperature: -4°F to 113°F
• Dimensions: Diameter 4.92", Depth 1.97", Width 2.8", Length 3.5"
• Cutout Size: 4.13"
• Product Weight: 1.04 lbs
• Certifications: IC Rated (Insulation Contact), Airtight Certified (ASTM-E283), T24 JA8 Compliant

Features

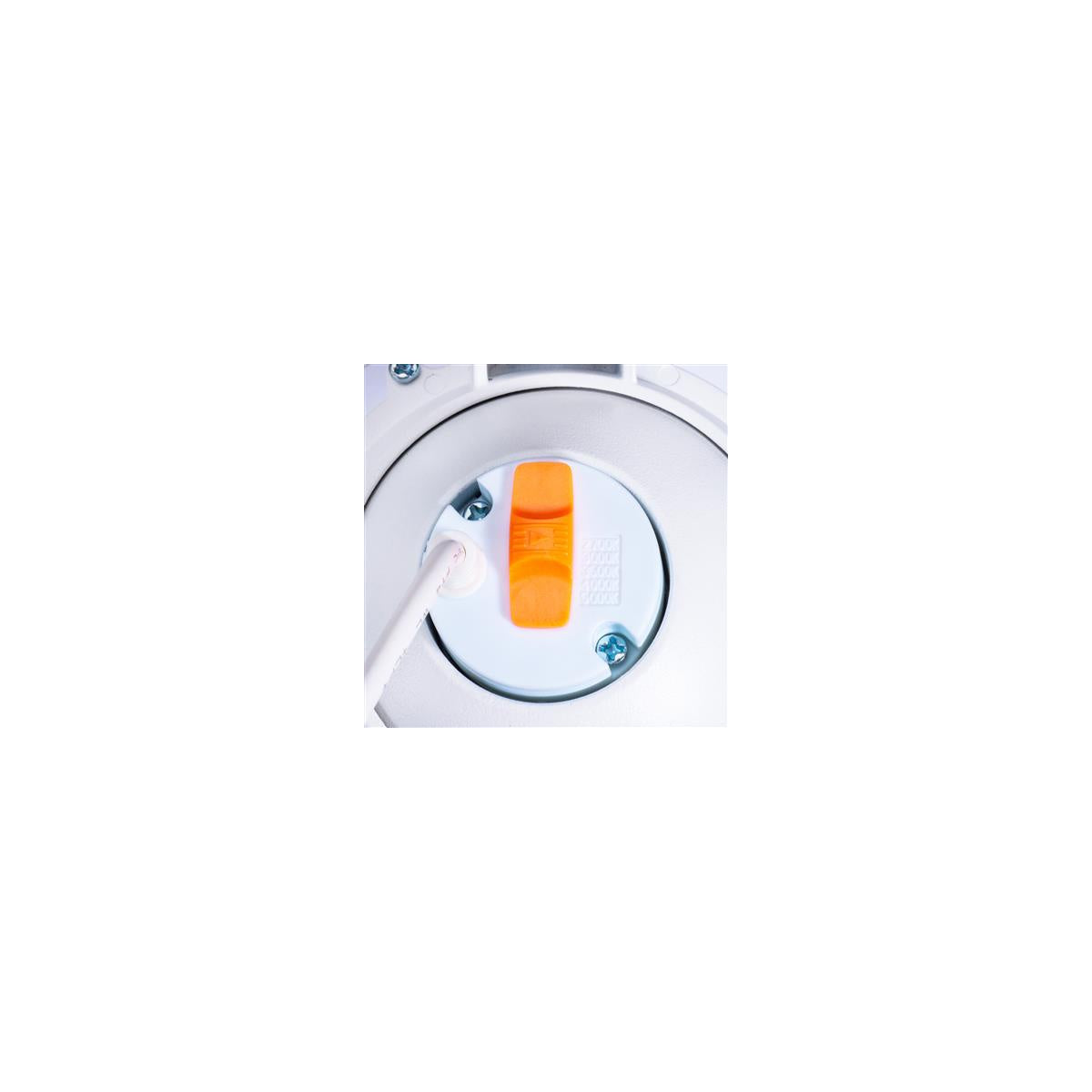

• 5 CCT selectable switch for color temperature customization
• 360° rotation and 30° tilt for directional lighting control
• Ultra-low profile less than two inches for slim fit installation

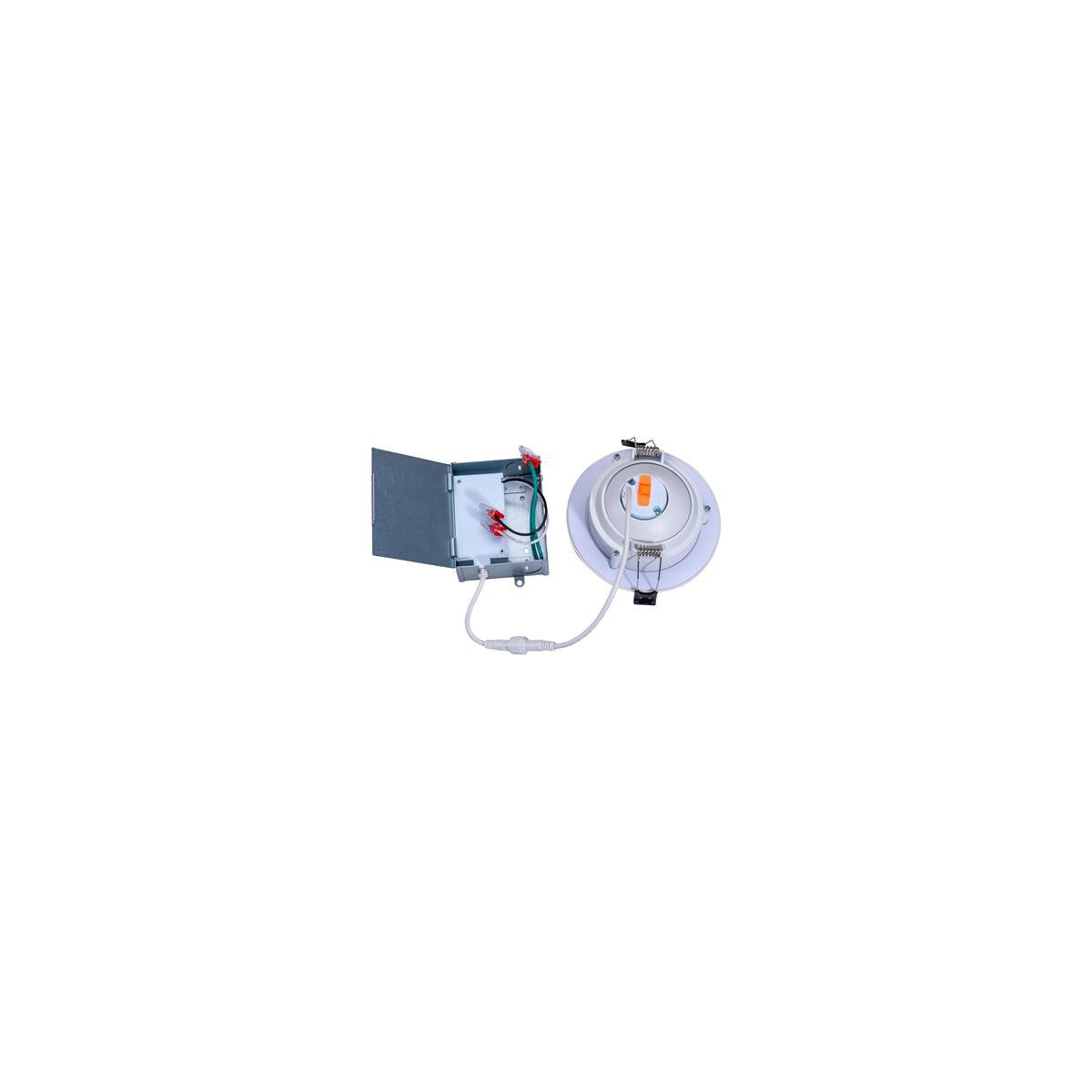

• Spring clips and quick connects for easy installation in new construction and retrofit applications
• Airtight certified to prevent air leakage
• Suitable for insulated and non-insulated ceilings
• Complies with California Energy Commission’s High Efficacy LED light source requirements (T24 JA8)
• Compatible with most leading-edge incandescent and LED dimmers

Downloads & Links

• Spec Sheet
• Cut-Out Template-4-Inch Gimbal
• Dimmer Compatibility LED 5CCT Slim Fit Downlights
• RDL/4GIM/15/5CTS-46 IES.ies
• RDL/4GIM/15/5CTS-46 LM79
• Intallation Instructions - 5CCT Round-Gimbal-Square
