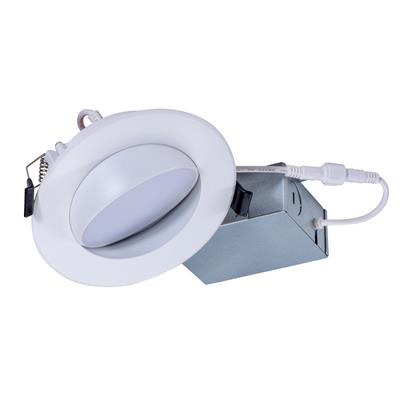

4" Gimbal CCT Selectable LED Slim Fit Recessed Downlight, 11W – LED Lighting Solutions

The 4" Gimbal CCT Selectable LED Slim Fit Recessed Downlight, 11W by Southwire is designed for versatile lighting applications in commercial, residential, and multi-family environments. This recessed downlight features a slim profile with a low height of less than two inches, making it suitable for new construction and retrofit installations. It offers five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) to tailor lighting ambiance. With 360° rotation and 30° tilt capabilities, the fixture allows precise directional lighting to enhance kitchens, living areas, basements, and hallways. Installation is simplified with spring clips and quick connects. This product meets airtight certification standards and complies with California’s Title 24 JA8 high efficacy LED requirements, making it an efficient choice for electrical distributors and lighting solution providers.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: RDL/4GIM/11/5CTS-46
• Input Voltage, Frequency: 120V, 60Hz
• Wattage: 11W
• Lumens: 770
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (CCT Selectable)
• Beam Angle: 100°
• Power Factor: >0.95
• THD: <16%
• Dimmable: Down to 5%
• Efficacy: Up to 70 LPW
• CRI: 90
• Functional Life (L70): 50,000 hours
• Location Rating: Damp
• Ambient Operating Temperature: -4°F to 113°F
• IC Rated (Insulation Contact)
• AT Rated (Airtight)
• Cutout Size: 4.13 inches
• Product Weight: 1.21 lbs

Features

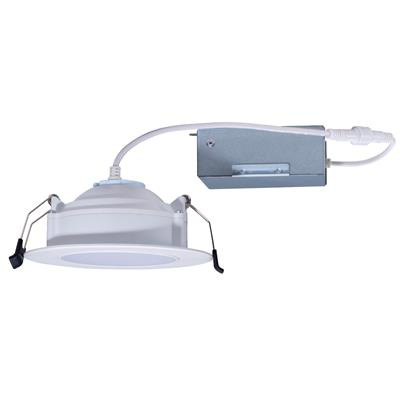

• Slim fit design with ultra-low profile under 2 inches

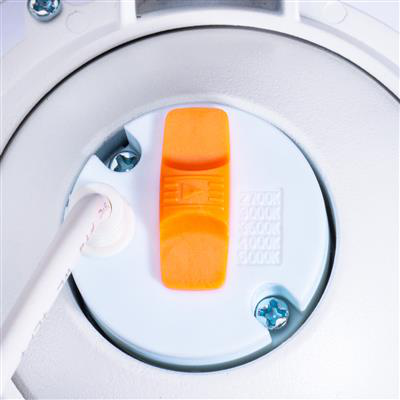

• Five CCT selectable options for customizable ambiance
• 360° rotation and 30° tilt for focused directional lighting

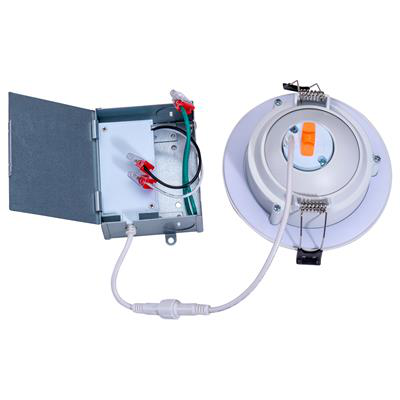

• Spring clips and quick connects for easy installation
• Airtight certified per ASTM-E283 for energy efficiency
• Complies with California Energy Commission's Title 24 JA8 high efficacy LED requirements
• Suitable for use in insulated and non-insulated ceilings
• Compatible with most leading-edge incandescent and LED dimmers

Downloads & Links

• Spec Sheet
• Cut-Out Template-4-Inch Gimbal
• RDL/4GIM/11/5CTS-46 LM79
• Intallation Instructions - 5CCT Round-Gimbal-Square
• RDL/4GIM/11/5CTS-46 IES.ies
• Dimmer Compatibility LED 5CCT Slim Fit Downlights
