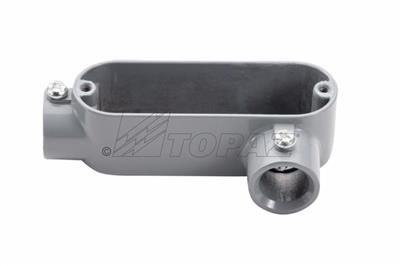

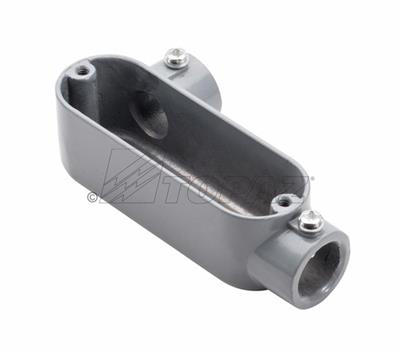

4" EMT Set Screw LL Type Aluminum Conduit Body

The 4" EMT Set Screw LL Type Aluminum Conduit Body by Southwire is designed to provide access to conductors for pulling, splicing, and maintenance. It is suitable for use in concrete installations, making it ideal for electrical distributors and lighting solutions requiring durable wire and cable management. This conduit body supports reliable conduit system configurations and is compatible with standard EMT conduit sizes.

Specifications

• Manufacturer Part #: ELL10
• Material: Die Cast Aluminum
• Form: LL
• Hub Size: 4"
• Dimensions: Length 15.5 in, Height 6.922 in, Width 5.5 in
• Product Weight: 0.1970 lb
• Mounting: Wall Mount
• UPC: 751338206243

Features

• Set screw LL type design
• Suitable for use in concrete
• Copper-free aluminum die cast construction
• Steel screws for secure fastening
• Powder coat finish for durability

Downloads & Links

• Spec Sheet
