Arlington GB5 Grounding Bridge - Electrical Grounding Solutions

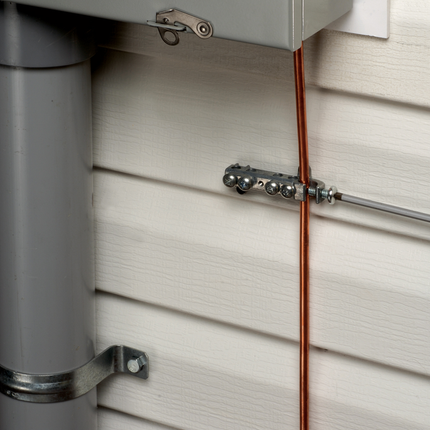

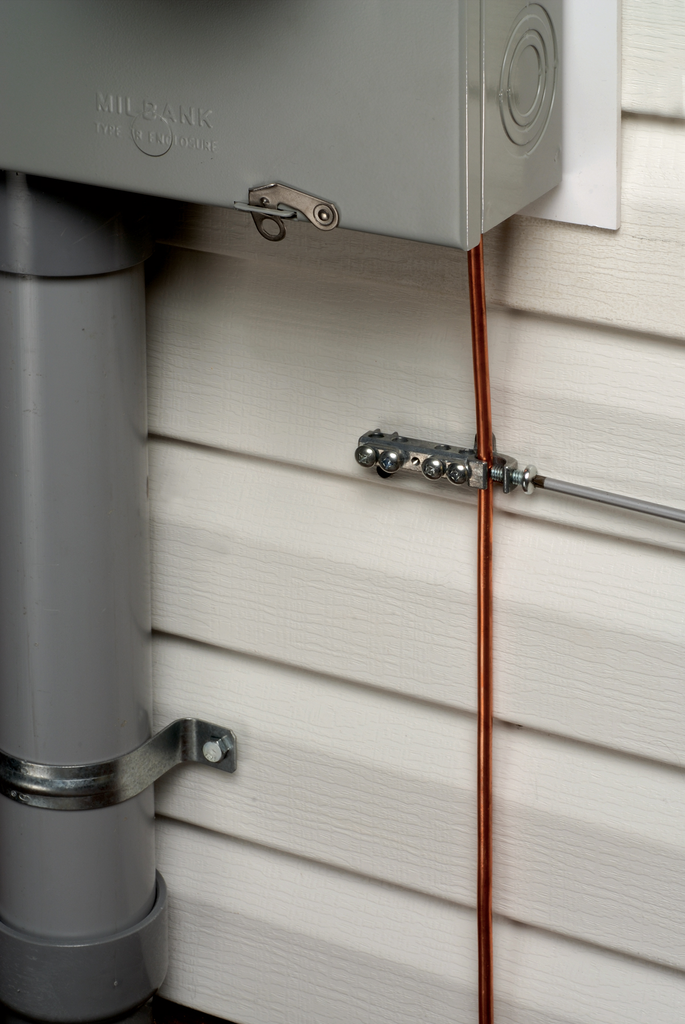

The Arlington GB5 Grounding Bridge is a heavy-duty intersystem bonding device designed to provide reliable grounding connections between power and communication systems. Suitable for use by electrical distributors and switchgear suppliers, this product facilitates secure grounding for telephone, CATV, satellite dish, and other communication systems. It is available in zinc with a textured, paintable plastic cover, making it suitable for both indoor and outdoor applications.

Specifications

• Dimensions: 4.398 Inch Length x 1.836 Inch Width x 1.497 Inch Height
• Conductor Size Range: Minimum 6 AWG, Maximum 2 AWG
• Conductor Material Compatibility: Copper and Aluminum
• Material: Zinc bridge with paintable plastic cover
• Color: Silver
• UL Approved for Canada and US
• Product Weight: 0.5300 lbs
• Made in USA
• Manufacturer: Arlington Industries
• Manufacturer Part Number: GB5
• Country of Origin: United States

Features

• Meets 2014 and 2017 NEC Grounding Requirements

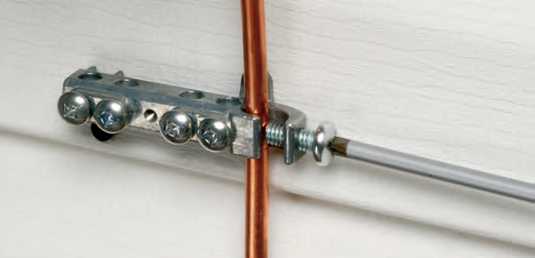

• Four termination points—one more than NEC 250.94 requires—allowing multiple hookups

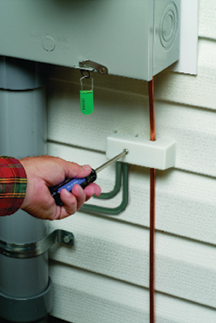

• Fast, simple installation with lay-in lug design
• Textured, paintable plastic cover for aesthetic finish and UV resistance for outdoor durability
• Compatible with solid or stranded copper or aluminum conductors
• Reliable intersystem bonding between power and communication grounding systems
• Easy access for inspection and maintenance

Downloads & Links

• Specification Sheet
• Catalog Page
• GB5 Line Drawing
