Description
Features

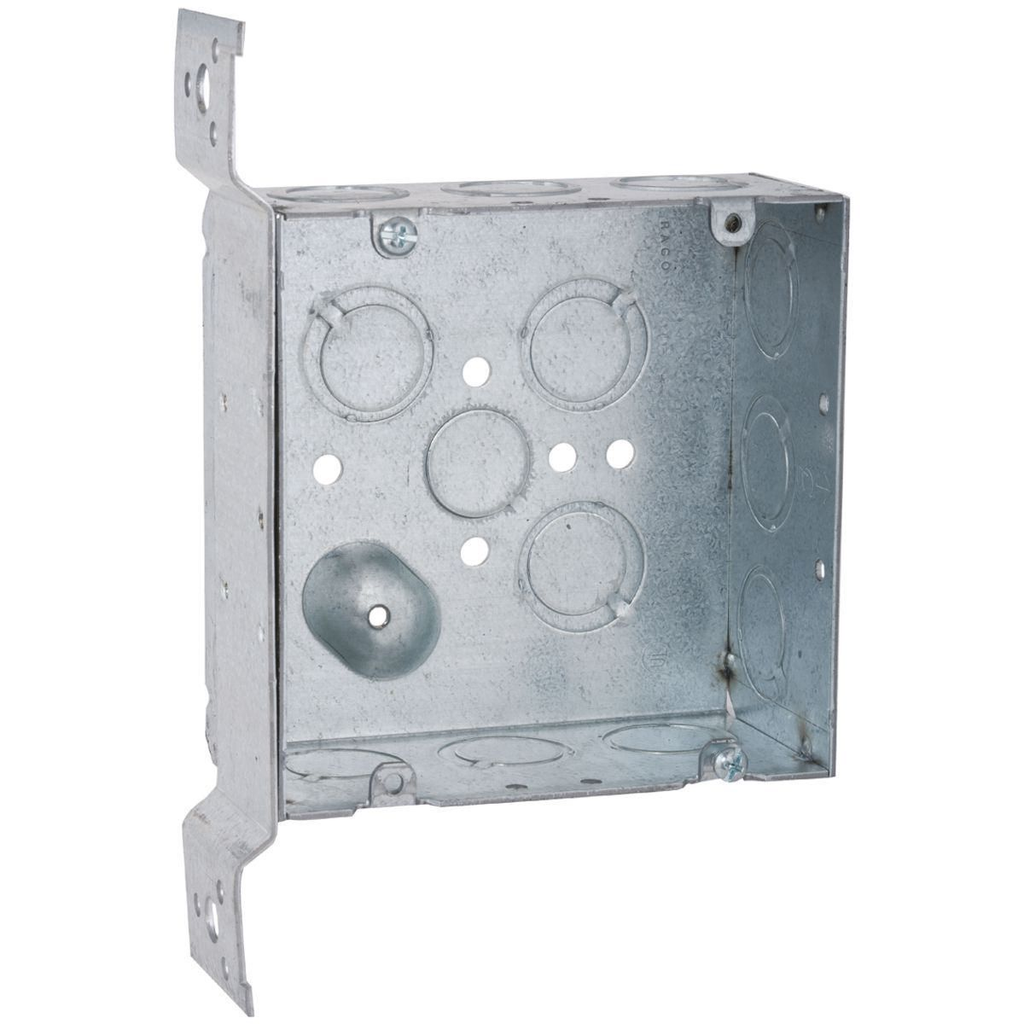

- Pre-galvanized steel construction
- FM bracket allows the box to be mounted on flat side of the metal or wood stud
- 1/2 in. and 3/4 in. combination TKO knockouts allow for design and installation flexibility
- One 1/2 in. knockout and twelve TKO knockouts
- Combination screw heads provide for faster installation
- 42 cu. in. capacity
Specifications
- Country of Origin: United States
- Actual Depth: 2.188 in
- Buy American Compliant: Contact Manufacturer
- ChannelSightWidgetId: 705
- Width: 5.063 in
- Each - Width: 5.063 in
- Height: 7.625 in
- Product Type: Steel Boxes and Covers
- Color: Gray
- Cubic Capacity: 42.0 cu.in
- Depth: 2.125 in
- Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
- Standard: UL Listed
- Type: Box
- Bracket Type: FM, for Metal or Wood Studs
- Weight: 1.318 lb.
- ARRA Compliant: Contact Manufacturer
- Class Code: D01
- Description - Invoice: 4-11/16SQBXw/FMBKT 2-1/8DP 1/2-3/4TKO BM
- Freight Class Code: 06202000
- Harmonization Code: 7326908688
- Image Actual Or Representative: A
- MSDS Flag: Yes
- Order Multiple: 25 EA
- Returnable Indicator: Yes
- Stock Indicator: S - Shelf Stock
- Sub Class Code: D011D0110
- Bracket Setback: 0.375
- Drawn or Welded: Welded
- Raised Ground: Yes
- Wiring System: Conduit
- Material: Steel
- Number of Gang(s): 2-Gang
- Proposition 65 Warning Required: No
- Base Unit of Measure: EA
- BOX SIZE: 10.75x23.75x7.75 (in)
- Box Type: Wall Box
- Carton - Gross Weight per Pack: 32.95 lb.
- Carton - Number of Sub Packs: 25
- Carton - Pack Description: Carton
- Carton - SCC-14 Next Lower Level Sub Pack: 50169002544
- Carton - Total Units: 25 EA
- Each - Pack Description: Each
- Lowest Level UOM: Each
- Pallet - GTIN - Package: 70050169002543
- Pallet - Number of Sub Packs: 48
- Pallet - Pack Description: Pallet
- Pallet - SCC-14 Next Lower Level Sub Pack: 30050169002545
- Pallet - Total Units: 1200 EA
- Pallet Height: 50.875 in
- Pallet Length: 42.000 in
- Pallet Weight: 1626.600 lb.
- Pallet Width: 48.000 in
Certifications
- Certified Listed: UL Listed
- EU RoHS Indicator: Contact Manufacturer
Downloads
Spec SheetMSDS
Catalog Full Asset Reference 1
Catalog Full Asset Reference 2
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Certification Document Asset Reference 3
Sales Drawing Asset Reference
SDS Asset Reference
Terms and Conditions Asset Reference
More Information
Manufacturer Catalog Number
254
Weight
1.32
Width
5.063
Country of Origin
United States
Made in USA
Yes
Material
Steel
Color
Gray
Depth
2.125 inches
Number Of Gangs
2
