Features

• Reference the Box Selection section in the front of this catalog for complete description of bracket types and features
• Combination screw heads provide for faster installation
• TKO knockouts allow for design and installation flexibility
• UBS Support - Welded to box, preset bend points to work with wall thickness 2-1/2 in. to 6 in
• Welded steel construction

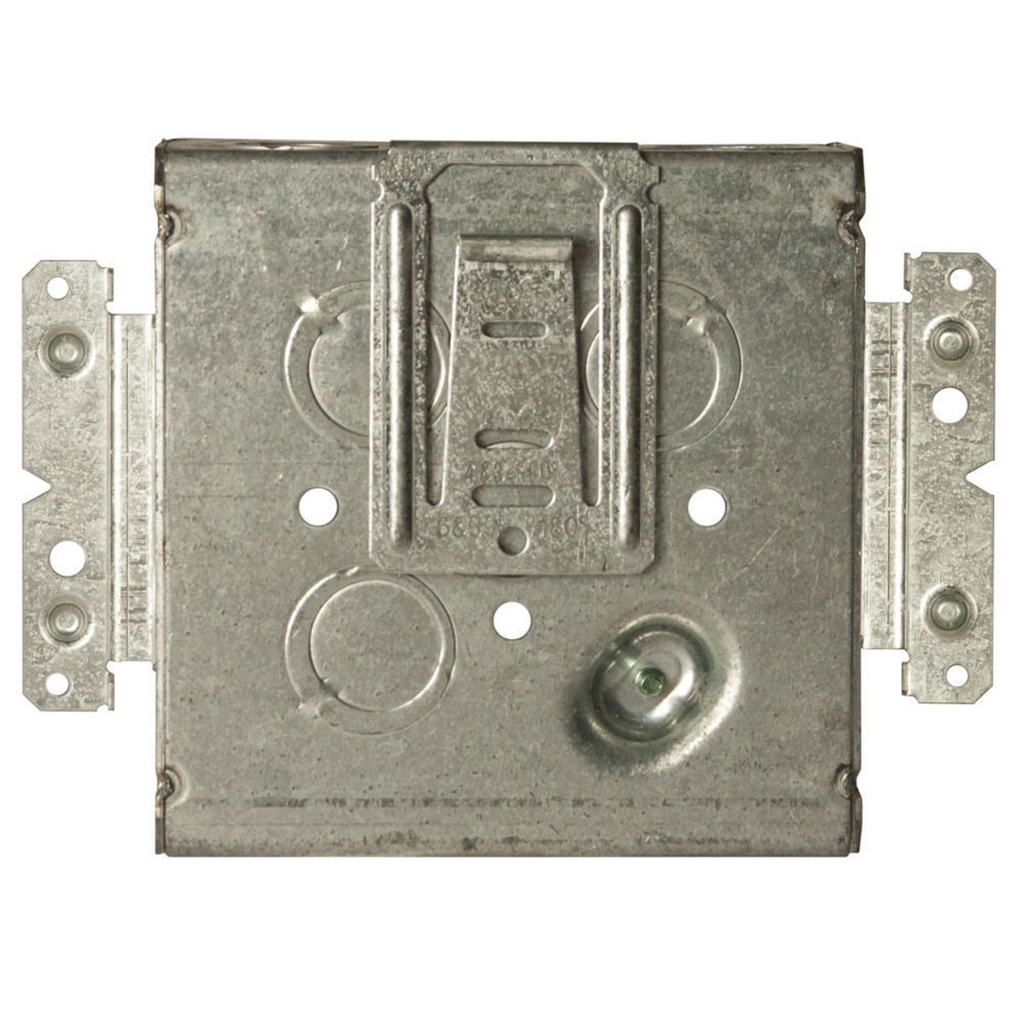

• 4-11/16 in. square x 2-1/8 in. deep

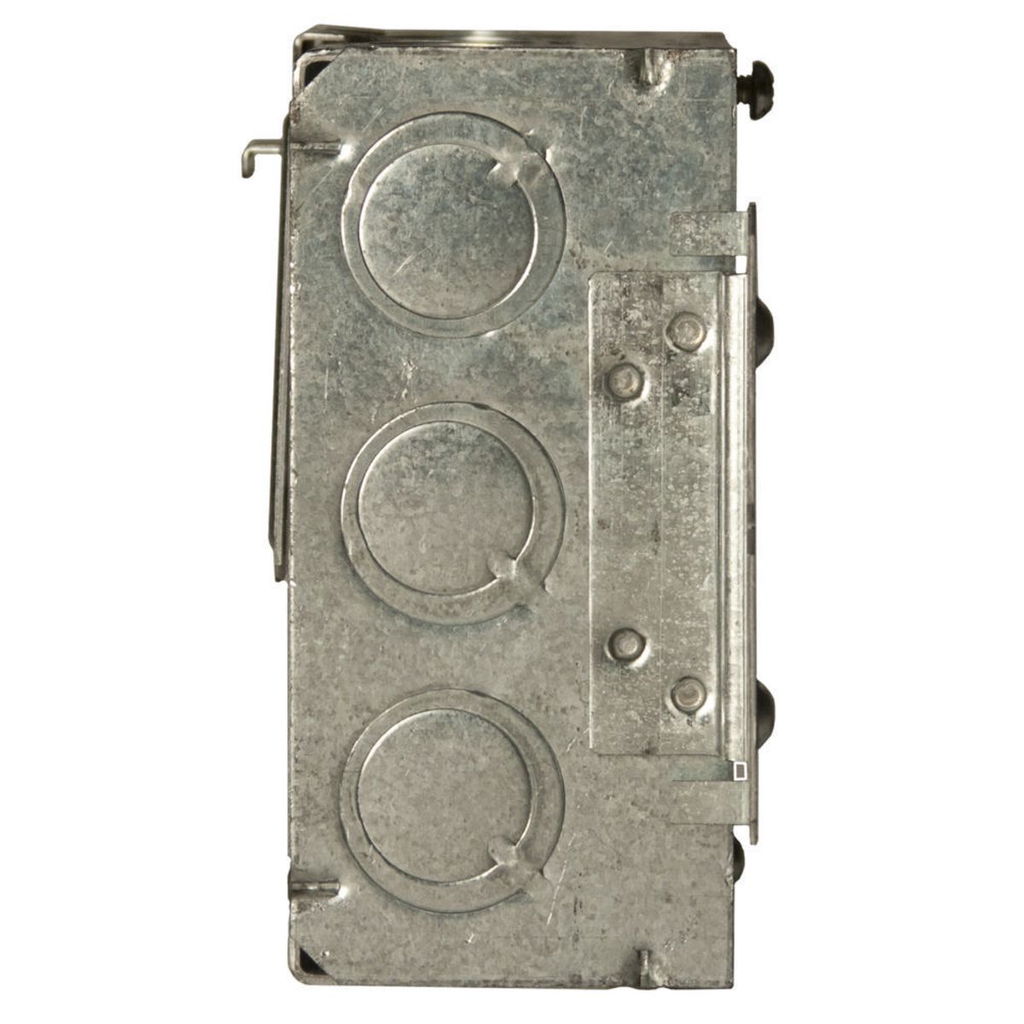

• Supplied with one (1) 1/2 in. and fifteen (15) 1/2 and 3/4 in. TKO knockouts
• Combination Phillips/slotted screw heads
• 8 in. #12 stranded pigtail

Specifications

• Country of Origin: United States
• Actual Depth: 2.75 in
• Buy American Compliant: Contact Manufacturer
• Width: 6.545 in
• Each - Width: 6.545 in
• Height: 4.688 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 42.0 cu.in
• Depth: 2.125 in
• Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
• Standard: UL Listed
• Type: Box
• Bracket Type: M, for Metal or Wood Studs
• Weight: 1.23 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: 4-11/16SQBXw/BKT&SUPT 2-1/8DP 1/2-3/4KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 20 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D011D0110
• Bracket Setback: 0.375
• Drawn or Welded: Welded
• Raised Ground: Yes
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 2-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 11.625x18.125x7.875 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 21.92 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169500071
• Carton - Total Units: 20 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169500070
• Pallet - Number of Sub Packs: 54
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169500076
• Pallet - Total Units: 1080 EA
• Pallet Height: 51.625 in
• Pallet Length: 42.000 in
• Pallet Weight: 1373.400 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
