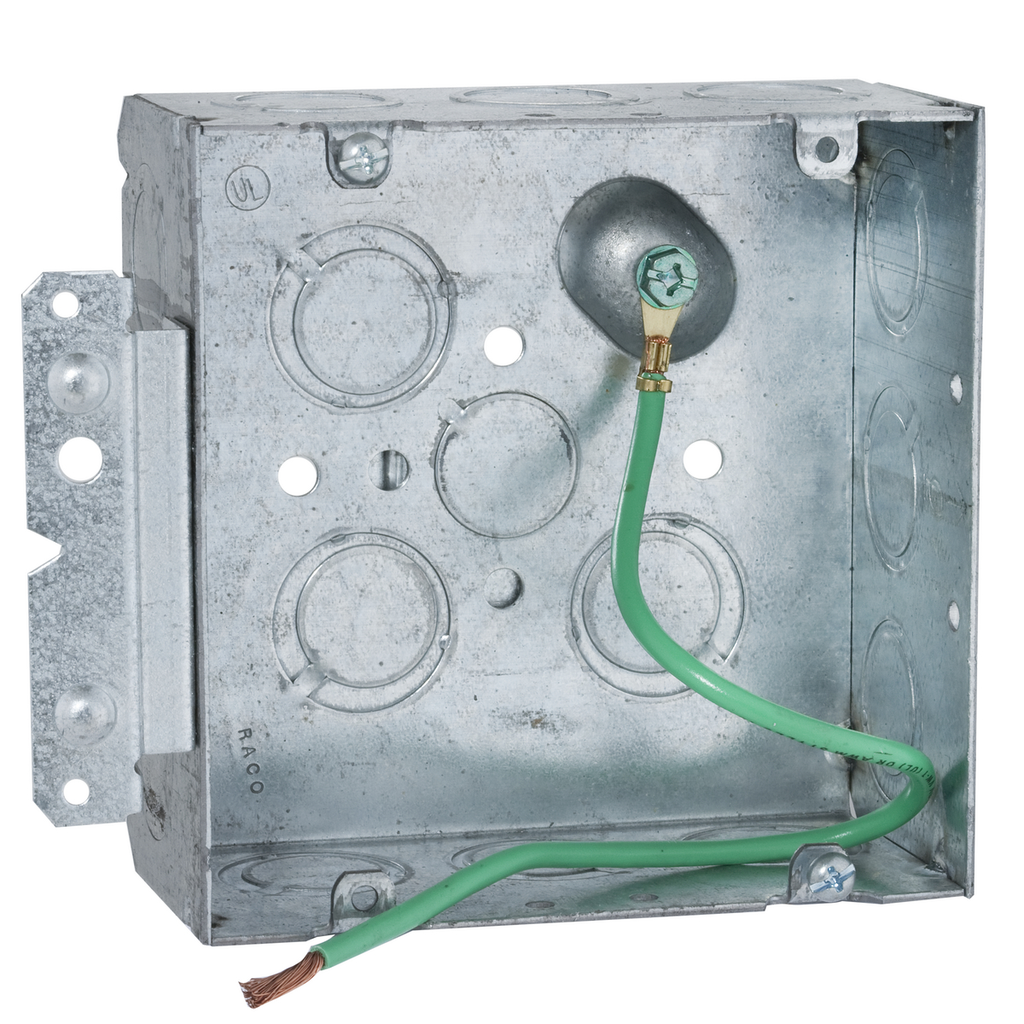

4-11/16 in. Square Box, Welded, 2-1/8 in. Deep with One 1/2 in. KO & Fifteen TKO's, Raised, 10 in. #12 Stranded Copper Pigtail, UBS, H Bracket
SKU: #120931
Part: #257HS
UPC: 050169500392
4-11/16 in. Square Box, Welded, 2-1/8 in. Deep with One 1/2 in. KO & Fifteen TKO's, Raised, 10 in. #12 Stranded Copper Pigtail, UBS, H Bracket
SKU: #120931
Part: #257HS
UPC: 050169500392
Description
4-11/16 in. Square Box Welded Deep Electrical Box
This 4-11/16 inch square welded steel box is designed for electrical installations requiring a 2-1/8 inch depth. It is suitable for use by electrical distributors and lighting solutions providers, offering compatibility with wire and cable systems and serving as a reliable component for switchgear suppliers. The box features a raised ground, a 10-inch #12 stranded copper pigtail, and an H bracket for mounting stability.
Specifications
- Material: Steel
- Depth: 2.125 inches
- Width: 5.603 inches
- Product Weight: 1.0960 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: RACO
- Manufacturer Part #: 257HS
- Box Volume: 42 in³ (688.2 cm³)
- Wire: #12 AWG stranded copper, 10-1/2 inches long, green insulated, UL listed, 600V max
- Knockouts: One 1/2 inch KO and fifteen trade size knockouts (TKOs)
- UL Listing: UL 514A, meets ANSI/NEMA OS1 rating
Features
- Welded construction for durability and secure installation
- Raised ground for enhanced grounding connection
- Includes stranded copper pigtail with extra-grip ring terminal and ground screw
- Equipped with stud bracket and farside support for mounting versatility
- Multiple knockouts accessible for various conduit sizes
- Galvanized finish for corrosion resistance
- Compatible with all 4-11/16 inch covers and partitions (sold separately)
