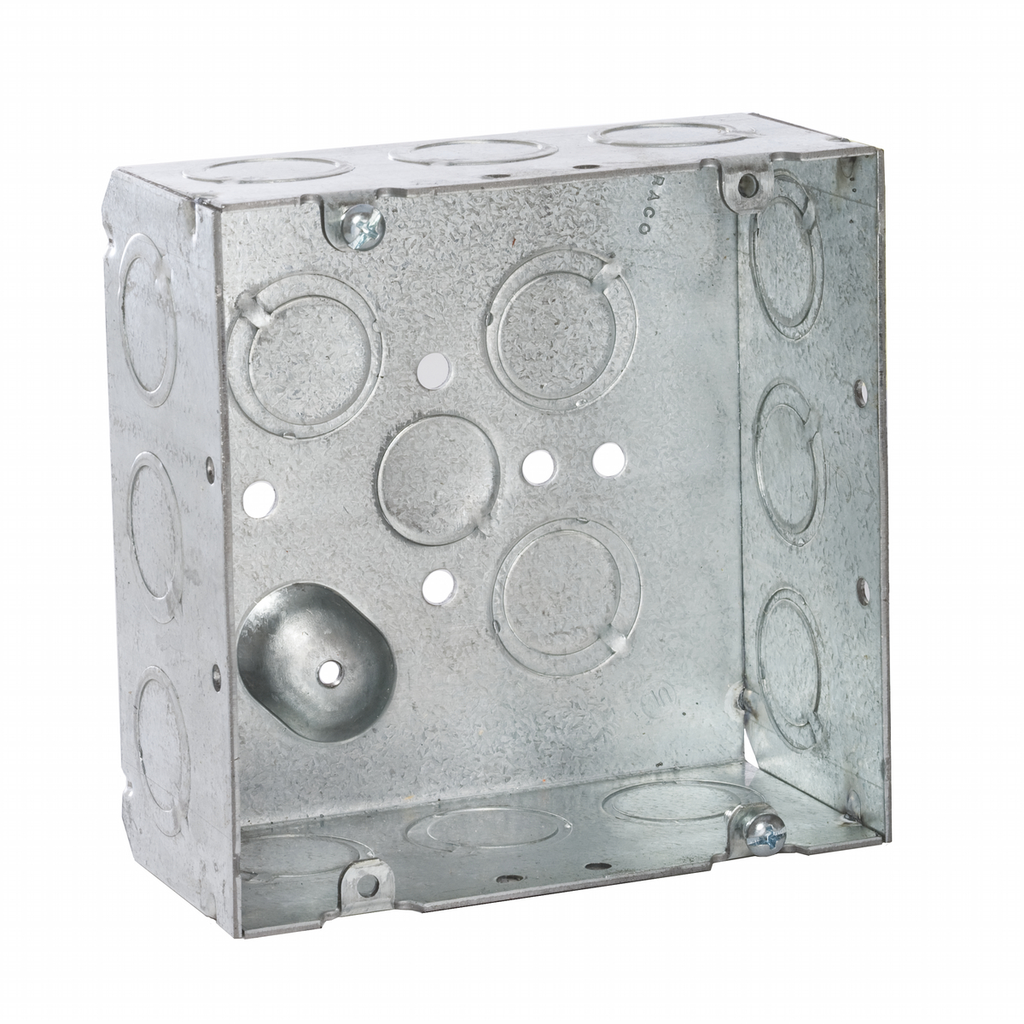

4-11/16 in. Square Box, Welded, 2-1/8 in. Deep with One 1/2 in. KO & Fifteen TKO's, Raised – Electrical Box

This welded steel square box is designed for electrical wiring systems, providing a robust solution for conduit installations. Suitable for electrical distributors and lighting solutions providers, it features a 2-1/8 inch depth and multiple knockouts to facilitate flexible wiring configurations.

Specifications

• Size: 4-11/16 in.
• Depth: 2.125 in.
• Actual Depth: 2.188 in.
• Width: 4.688 in.
• Height: 4.688 in.
• Material: Steel
• Wiring System: Conduit
• Drawn or Welded: Welded
• Knockouts: 1/2 in and 1/2 - 3/4 in Combination (TKO)
• Raised Ground: Yes
• Weight: 1.104 lb.
• Certified Listed: UL Listed
• Country of Origin: United States
• Made in USA: Yes

Features

• Combination screw heads provide faster installation.
• TKO knockouts allow for design and installation flexibility.
• Constructed from flat rolled steel with 87% recycled content (80% post-consumer, 6% pre-consumer).
