4-11/16 in. Square Box, Welded, 2-1/8 in. Deep with One 1/2 in., Four 3/4 in., Four 1 in. KO's and 3 TKO's, Raised
SKU: #122281
Part: #8265
UPC: 050169002650
4-11/16 in. Square Box, Welded, 2-1/8 in. Deep with One 1/2 in., Four 3/4 in., Four 1 in. KO's and 3 TKO's, Raised
SKU: #122281
Part: #8265
UPC: 050169002650
Description

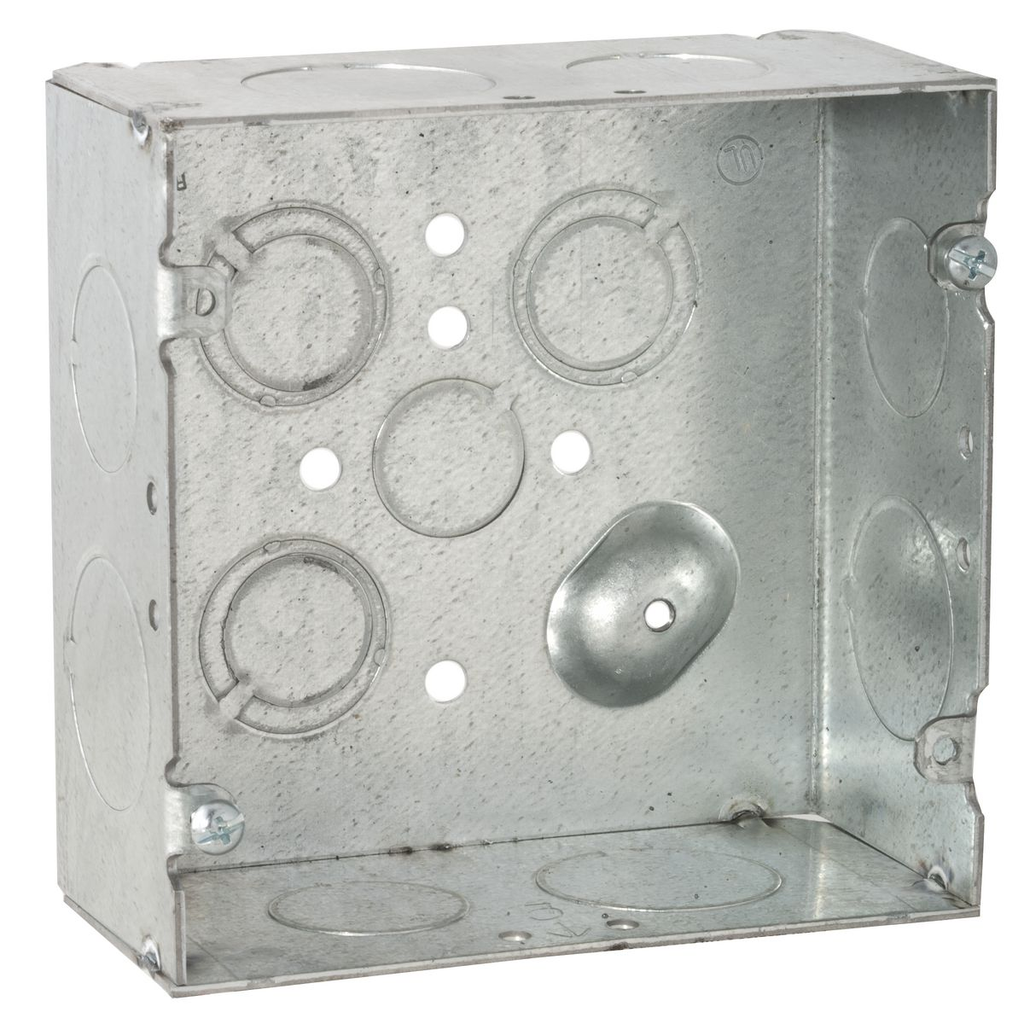

4-11/16 in. Square Box, Welded, 2-1/8 in. Deep – Electrical Junction Box
This 4-11/16 inch square welded steel box is designed for electrical conduit wiring systems, suitable for use by electrical distributors and switchgear suppliers. It features multiple knockouts to accommodate various conduit sizes, providing flexibility for lighting solutions and wire and cable installations in commercial and industrial applications.
Specifications
- Size: 4-11/16 in.
- Depth: 2.125 in
- Actual Depth: 2.188 in
- Width: 4.688 in
- Height: 4.688 in
- Weight: 1.108 lb.
- Material: Steel
- Drawn or Welded: Welded
- Wiring System: Conduit
- Type: Box
- Raised Ground: Yes
- Knockouts: One 1/2 in., Four 3/4 in., Four 1 in., and 3 TKO's (1/2 - 3/4 in. combination)
- UPC: 050169002650
- Country of Origin: United States
- Made in USA: Yes
- Certified Listed: UL Listed
Features
- Combination screw heads enable faster installation.
- TKO knockouts provide design and installation flexibility.
- Constructed from steel with high recycled content flat rolled steel material.
- Raised ground feature for enhanced safety.
