4-11/16 In Square Box Welded, 2-1/8 In Deep with One 1/2 In
SKU: #120976
Part: #259
UPC: 050169002599
4-11/16 In Square Box Welded, 2-1/8 In Deep with One 1/2 In
SKU: #120976
Part: #259
UPC: 050169002599
Description

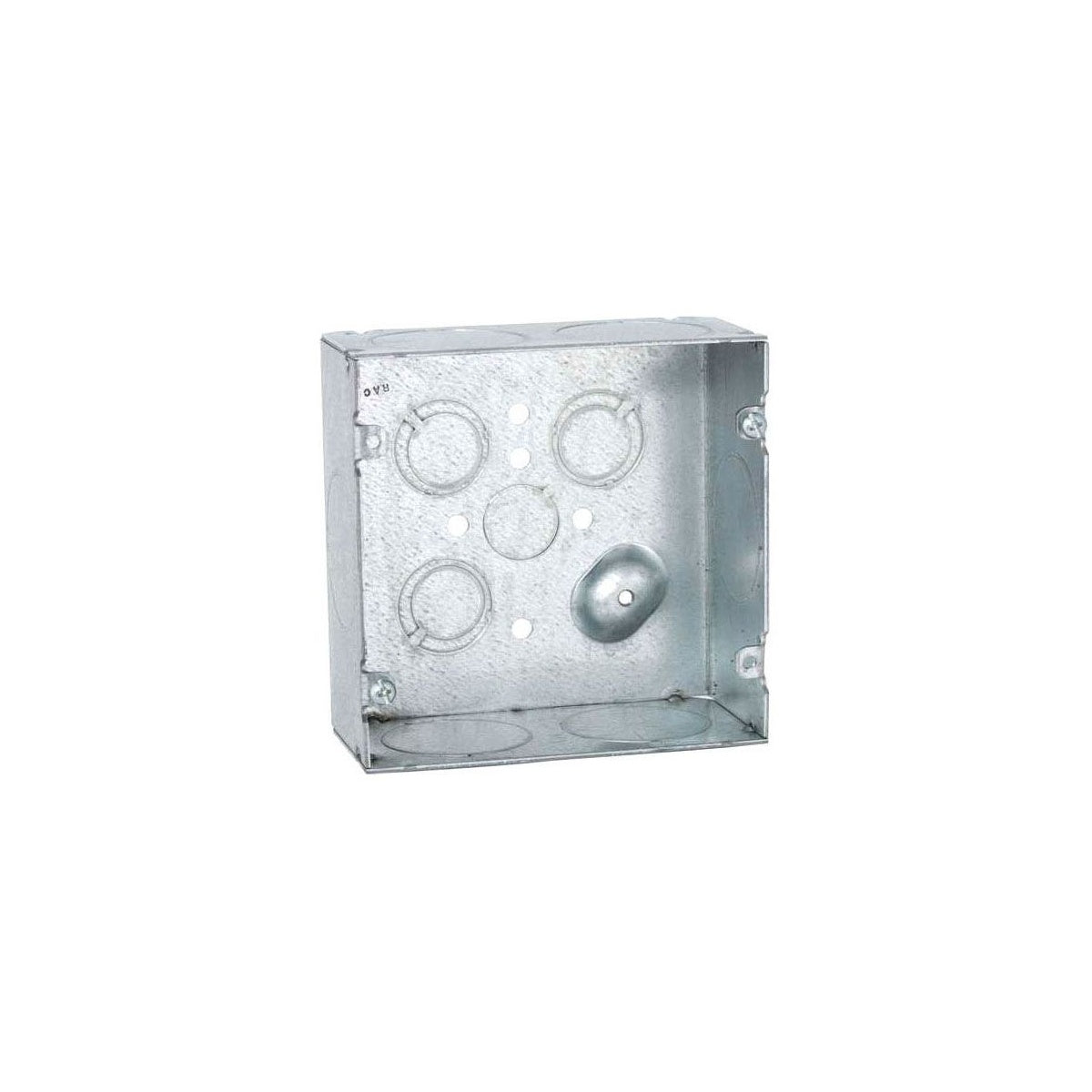

4-11/16 In Square Box Welded, 2-1/8 In Deep with One 1/2 In – Steel Electrical Box
This 4-11/16 inch square welded steel box by RACO is designed for industrial electrical applications requiring larger conductor sizes or wiring devices with increased volume capacity. It is suitable for use by electrical distributors and switchgear suppliers needing durable, galvanized steel enclosures with multiple conduit knockout options for flexible wiring installations.
Specifications
- Dimensions: 4-11/16" square, 2-1/8" deep
- Material: .0625" thick galvanized steel
- Conduit Knockouts: (6) 1-1/4" knockouts, (1) 1/2" knockout, (3) TKO® knockouts
- Raised Ground: Yes
- UL Listed: Suitable for use without bonding jumper in circuits up to 600 volts
- Cubic Inches: 42.0 (688.2 cm³)
- Mounting: Eccentric knockouts can ground with 1/2" locknut, mounting ears with screws for covers and mud rings
Features
- Welded construction with projection welds providing a bond stronger than the steel itself
- Square corners for increased internal working space
- Combination screw heads for faster installation
- Standard and TKO® knockouts for design and installation flexibility
- Raised ground for reliable grounding connection
- Mounting ears with screws to attach covers and mud rings securely
