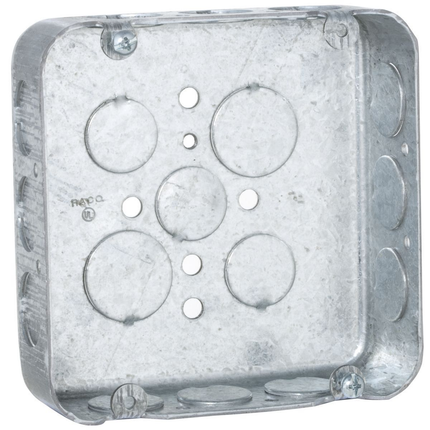

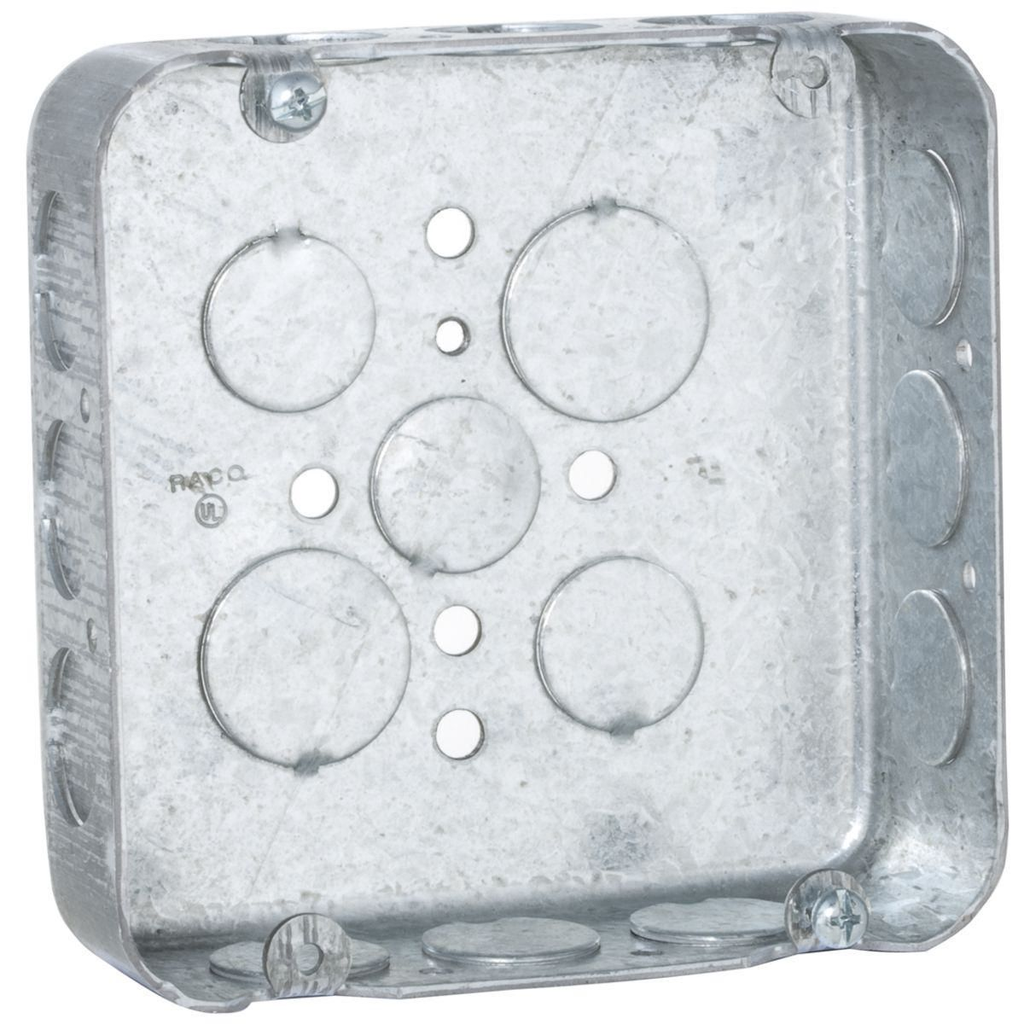

Features

• Combination screw heads provide for faster installation
• TKO knockouts allow for design and installation flexibility
• Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
• With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
• 29.5 cu. in. capacity

Specifications

• Country of Origin: Mexico
• Actual Depth: 2.188 in
• Buy American Compliant: Contact Manufacturer
• Width: 4.688 in
• Each - Width: 4.688 in
• Height: 4.688 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 29.5 cu.in
• Depth: 1.5 in
• Knockouts: 1/2 in
• Standard: UL Listed
• Type: Box
• Bracket Type: No Bracket
• Weight: 0.804 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: 4-11/16SQBX 1-1/2DP 1/2KO DRW
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D011D0110
• Drawn or Welded: Drawn
• Raised Ground: No
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 2-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 11.25x16.125x7.75 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 20.1 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169002452
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169002451
• Pallet - Number of Sub Packs: 66
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169002457
• Pallet - Total Units: 1650 EA
• Pallet Height: 50.875 in
• Pallet Length: 42.000 in
• Pallet Weight: 1371.600 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
