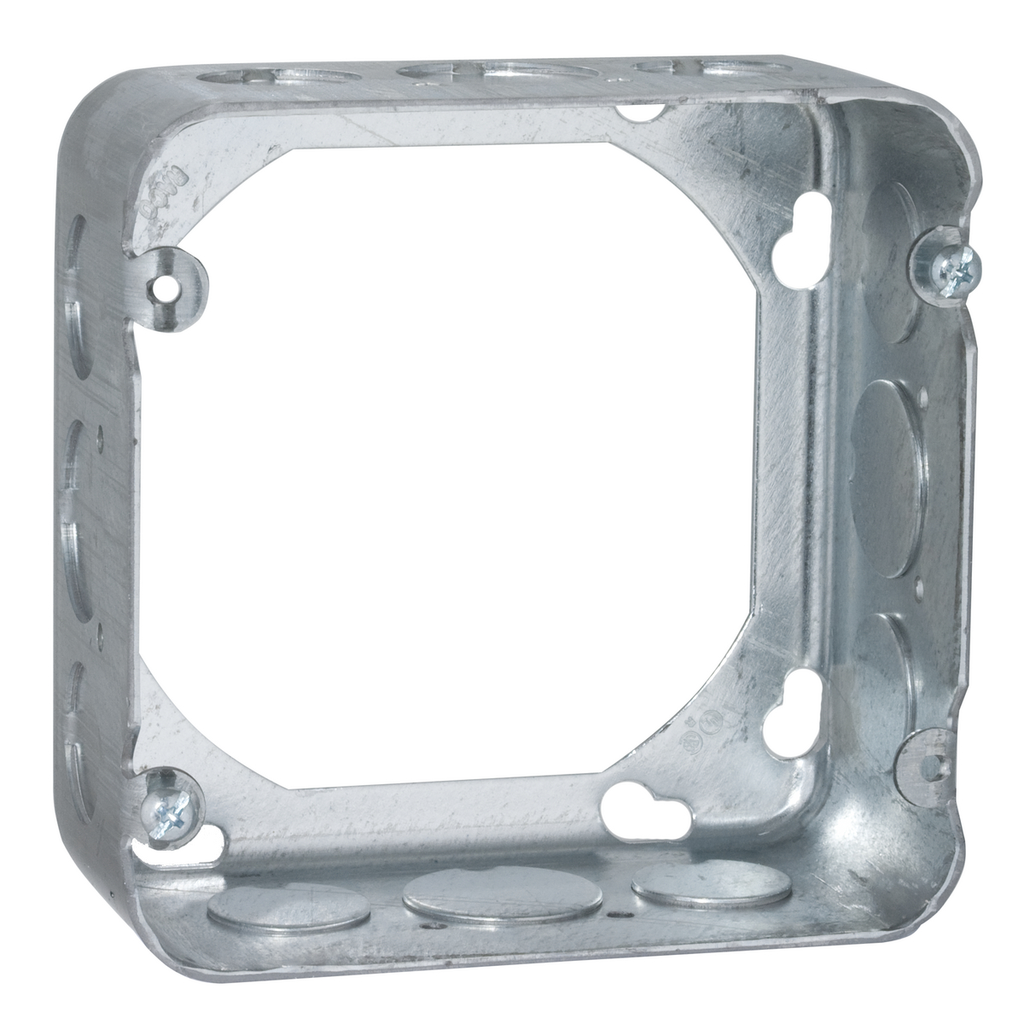

Features

• Combination screw heads provide for faster installation
• TKO knockouts allow for design and installation flexibility
• Drawn steel construction
• 4-11/16 in. square x 2-1/8 in. deep
• Supplied with eight 1/2 in. and four 3/4 in. knockouts
• Combination Phillips/slotted screw heads
• 43.0 cu. in. capacity

Specifications

• Country of Origin: Mexico
• Actual Depth: 2.188 in
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Width: 4.688 in
• Each - Width: 4.688 in
• Height: 4.688 in
• Product Type: Steel Boxes and Covers
• Cubic Capacity: 43.0 cu.in
• Depth: 2.125 in
• Knockouts: 1/2 in;3/4 in
• Standard: cULus Listed
• Type: Extension Ring
• Accessory Type: Box
• Bracket Type: No Bracket
• Weight: 0.776 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: 4-11/16SQBX EXT 2-1/8DP 1/2&3/4KO DRW
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D011D0110
• Drawn or Welded: Drawn
• Wiring System: Conduit
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 9.75x21.375x7.5 (in)
• Carton - Gross Weight per Pack: 19.4 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169002629
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169002628
• Pallet - Number of Sub Packs: 60
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169002624
• Pallet - Total Units: 1500 EA
• Pallet Height: 49.375 in
• Pallet Length: 42.000 in
• Pallet Weight: 1209.000 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: cULus Listed
• EU RoHS Indicator: Contact Manufacturer
