4-11/16 in. Plenum Box, 2-1/8 in. Deep, Eleven 1/2 in. and Six 3/4 in. Knockouts
SKU: #120953
Part: #257PL
UPC: 050169994337
4-11/16 in. Plenum Box, 2-1/8 in. Deep, Eleven 1/2 in. and Six 3/4 in. Knockouts
SKU: #120953
Part: #257PL
UPC: 050169994337
Description

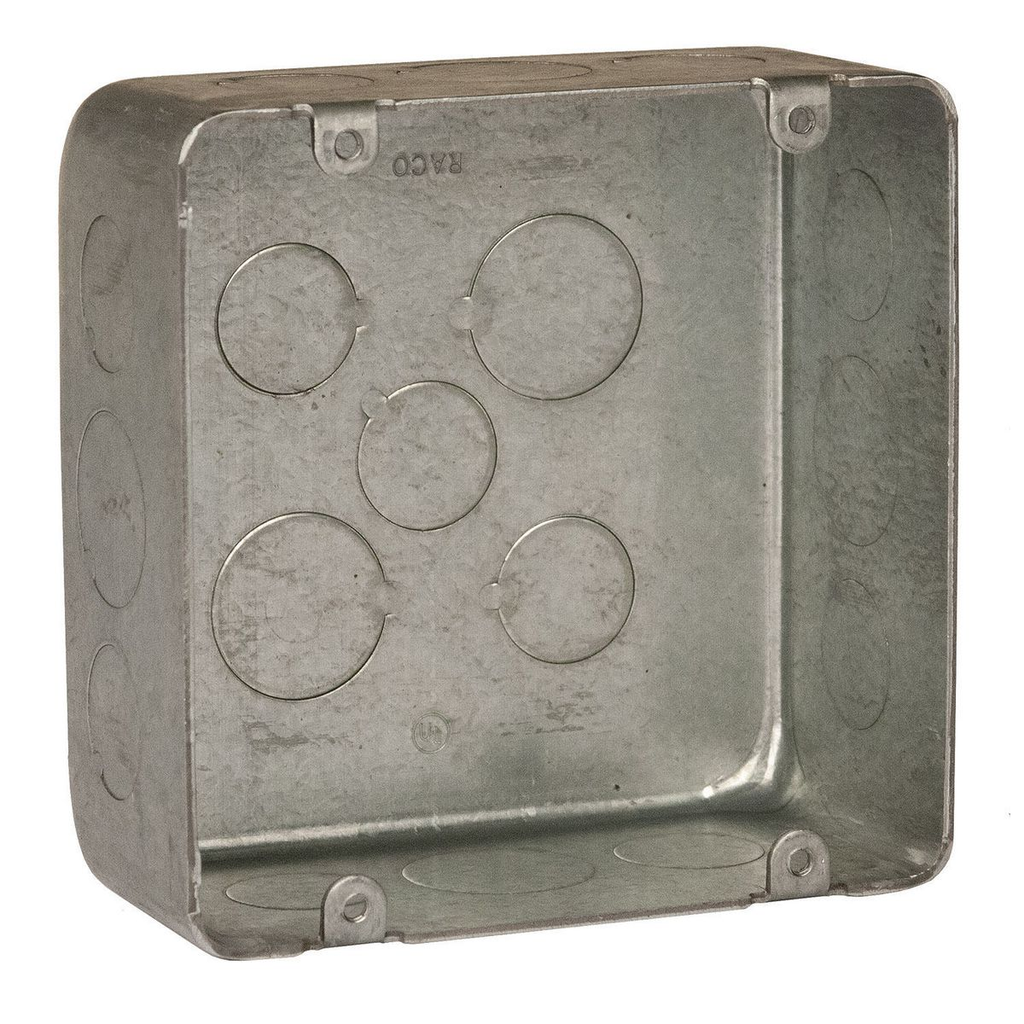

4-11/16 in. Plenum Box, 2-1/8 in. Deep – Electrical Enclosure for Plenum Applications
This 4-11/16 inch square plenum box is designed for use in plenum spaces requiring airtight electrical enclosures. It features a 2-1/8 inch depth and is equipped with eleven 1/2 inch and six 3/4 inch knockouts to accommodate various wiring configurations. Manufactured by RACO, this drawn steel box is UL Listed, ensuring compliance with electrical codes for plenum installations. It is ideal for electrical distributors and switchgear suppliers needing reliable wire and cable enclosures that maintain plenum integrity without ground screw holes.
Specifications
- Size: 4-11/16 in.
- Depth: 2.125 inches
- Knockouts: Eleven 1/2 in. and Six 3/4 in.
- Cubic Capacity: 42 in³
- Material: Drawn Steel
- UL Listed: Yes
- UPC: 050169994337
- Manufacturer Part #: 257PL
- Country of Origin: China
Features
- Available in 4 in. square, 4-11/16 in. square, and 4 in. octagon models
- Airtight knockouts to maintain plenum seal
- Boxes do not have ground screw holes to preserve airtight integrity
- Drawn steel construction for durability
- UL Listed for code compliance in plenum areas
