4/0 AWG, Aluminum, Termination, 0.42 Inch Pin Dia, 1.22 Inch Pin Length, AL9CU
SKU: #330904
Part: #AYPO4/0
UPC: 781810738368
4/0 AWG, Aluminum, Termination, 0.42 Inch Pin Dia, 1.22 Inch Pin Length, AL9CU
SKU: #330904
Part: #AYPO4/0
UPC: 781810738368
Description

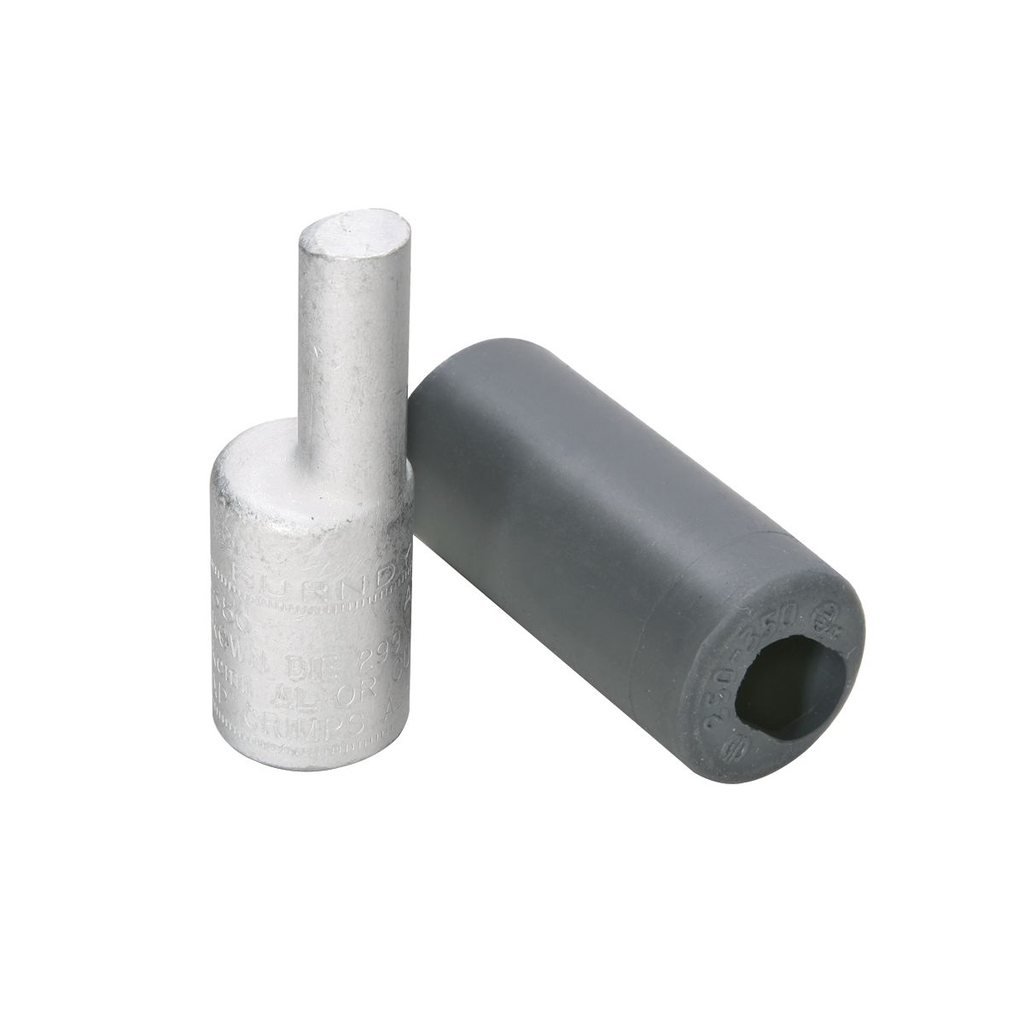

4/0 AWG Aluminum Termination Pin Adapter – Electrical Wire Termination
This 4/0 AWG Aluminum Compression Pin Adapter by Burndy is designed for precise wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable connections between aluminum and copper conductors. The adapter features a tin-plated aluminum construction to prevent bi-metallic corrosion and is rated for Al/Cu compatibility, making it ideal for lighting solutions and wire and cable systems.
Specifications
- Material: Aluminum
- Conductor Material: Aluminum / Copper
- Conductor Type: CODE/FLEX
- Wire Size: 4/0 AWG
- Connection Type: Offset Pin
- Plug Diameter: 0.42 inch
- Plug Length: 1.22 inch
- Overall Length: 2.80 inch (71 mm)
- Width: 0.85 inch
- Insulation: Yes
- Insulation Type: Rubber (EPDM)
- Finish: Tin-Plated
- Color: White
- Application: Wire Termination
- Voltage Rating: 35 kV (35,000 V maximum)
- Number of Crimps Required: 2
- Manufacturer: Burndy
- Country of Origin: United States
- CSA Approved: Yes
- UL Listed: Yes
Features
- All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
- Shortest connector length design for easy installation in limited space
- Solid electro-tin plated aluminum plug providing equivalent cross-sectional area to copper wire
- Offset plug design maximizes space utilization and reduces conductor interference
- Factory pre-filled with PENETROX oxide inhibiting compound for air-tight electrical connection
- EPDM rubber covers supplied, rated for 600V, eliminating the need for taping
- Only 5 die sets required to install the complete line from #6 to 750 kcmil, reducing inventory requirements
- Supplied in a plastic convenience pack to keep cover and connector clean and together until use
- Clearly marked with catalog number, wire size, and color-coded die index for easy identification
