3M Scotchlok Copper Two Hole Long Barrel Lug 31125, up to 35 kV, 2 AWG, Brown, 25/Case
SKU: #11201
Part: #7000140669
UPC: 051138524975
3M Scotchlok Copper Two Hole Long Barrel Lug 31125, up to 35 kV, 2 AWG, Brown, 25/Case
SKU: #11201
Part: #7000140669
UPC: 051138524975
Next day delivery
Description
3M Scotchlok Copper Two Hole Long Barrel Lug 31125, Power Cable Connectors
The 3M Scotchlok Copper Two Hole Long Barrel Lug 31125 is designed for terminating copper conductors in power cable applications up to 35 kV. Constructed from seamless high-conductivity copper with a tin-plated finish, this lug offers superior corrosion resistance and reliable electrical conductivity. It is suitable for use by electrical distributors and switchgear suppliers requiring durable compression lugs for copper wire and cable connections.
Specifications
- Manufacturer: 3M
- Manufacturer Part #: 7000140669
- Voltage Rating: Up to 35 kV
- Conductor Compatibility: Copper conductors only
- Number of Holes: Two
- Barrel Style: Long Barrel
- Wire & Stud Size: 2 AWG
- Color: Brown

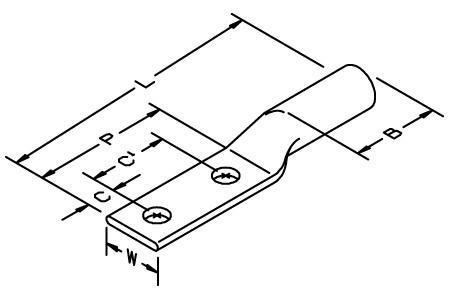

- Dimensions (approx.): Outside Diameter (O.D.) 0.42" (10.6 mm), Barrel Length (B) 1.25" (31.8 mm), Length (L) 4.85" (123.2 mm), Pad Length (P) 3.00" (76.2 mm), Pad Width (W) 0.63" (16.0 mm)
- Product Weight: 0.72 lbs
- Country of Origin: Chile
- RoHS Compliant: Yes
- UPC: 051138524975
Features
- Seamless copper construction for high electrical conductivity
- Tin-plated finish resists corrosion, enhancing durability
- Long barrel design facilitates secure compression connection
- Two-hole pad for stable and reliable termination
- Compatible with standard industry installation tools
- Rated for high-voltage power cable applications up to 35 kV
