3M™ QS-II Molded Rubber Splice Kit 5411-CI-21, CN and JCN Cable, 15 kV,Cable Ins. O.D. 0.637-0.90 in, 1/case
SKU: #11879
Part: #5411-CI-21
UPC: 054007118534
3M™ QS-II Molded Rubber Splice Kit 5411-CI-21, CN and JCN Cable, 15 kV,Cable Ins. O.D. 0.637-0.90 in, 1/case
SKU: #11879
Part: #5411-CI-21
UPC: 054007118534
Next day delivery
Description

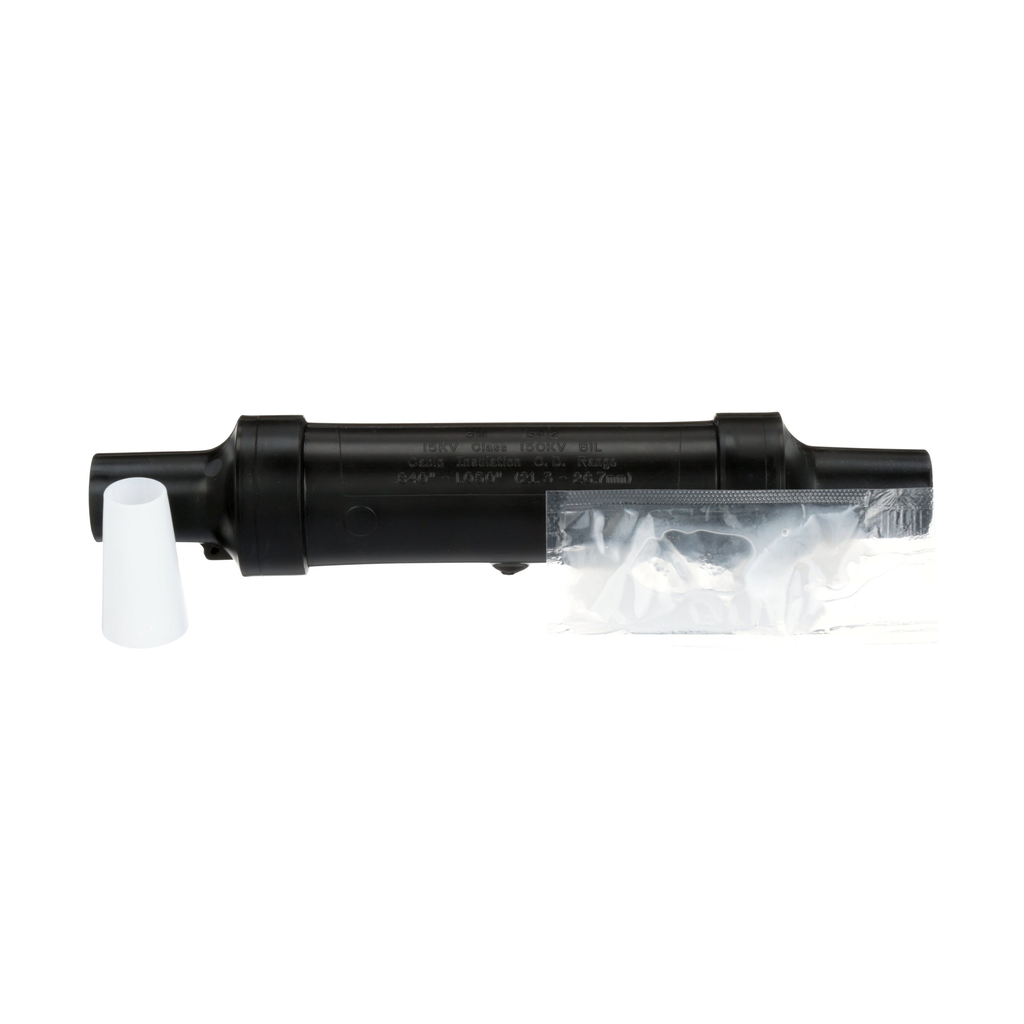

3M™ QS-II Molded Rubber Splice Kit 5411-CI-21 for 15 kV CN and JCN Cable
The 3M™ QS-II Molded Rubber Splice Kit 5411-CI-21 is a one-piece inline splice designed for use on 15 kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. It provides a durable, moisture-resistant splice solution with a cold shrink jacket made from peroxide cured EPDM rubber. This splice kit is suitable for electrical distributors and switchgear suppliers requiring reliable inline splicing for medium voltage wire and cable applications.
Specifications
- Voltage Rating: 15 kV
- Number of Conductors: 1 (Single Conductor)
- Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
- Insulation Diameter Range: 0.637" to 0.900" (16.2 mm to 22.9 mm)
- Conductor Size Compatibility: 2 AWG, 1 AWG stranded; 1 AWG, 1/0 AWG solid
- Splice Type: Inline
- Technology: Molded Rubber
- Product Weight: 0.8 lb
- Manufacturer Part Number: 5411-CI-21
Features
- Cold shrink jacket constructed from peroxide cured EPDM rubber for moisture resistance and durability
- Designed to meet IEEE 404 requirements for 15 kV rated JCN and CN cables
- One-piece molded rubber inline splice simplifies installation
- Compatible with special CI-Series connectors (CI-21 connector included)
