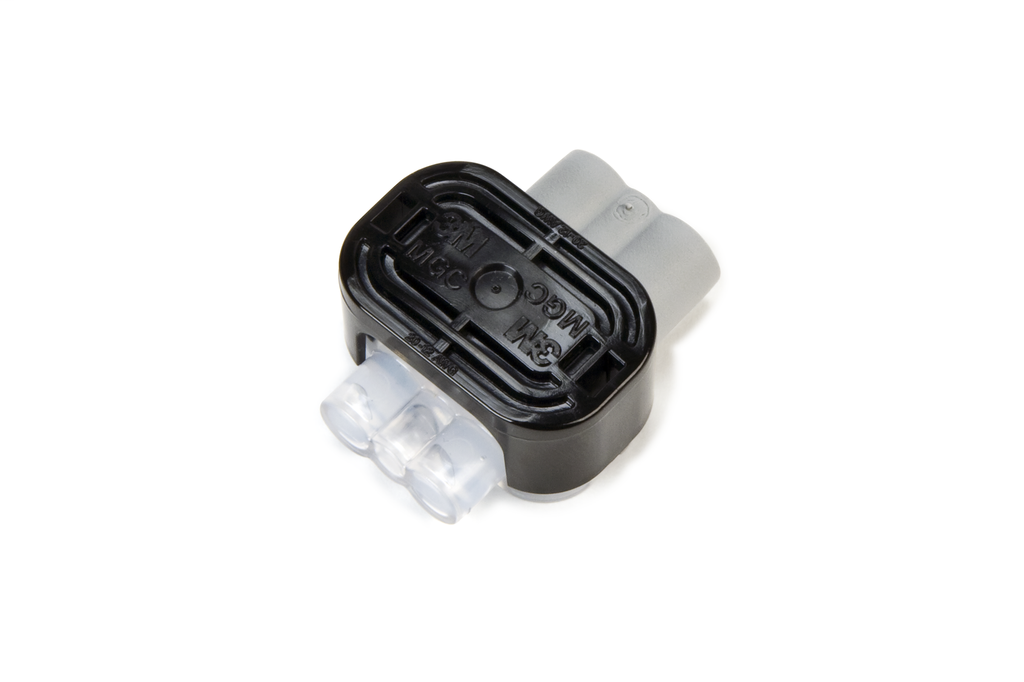

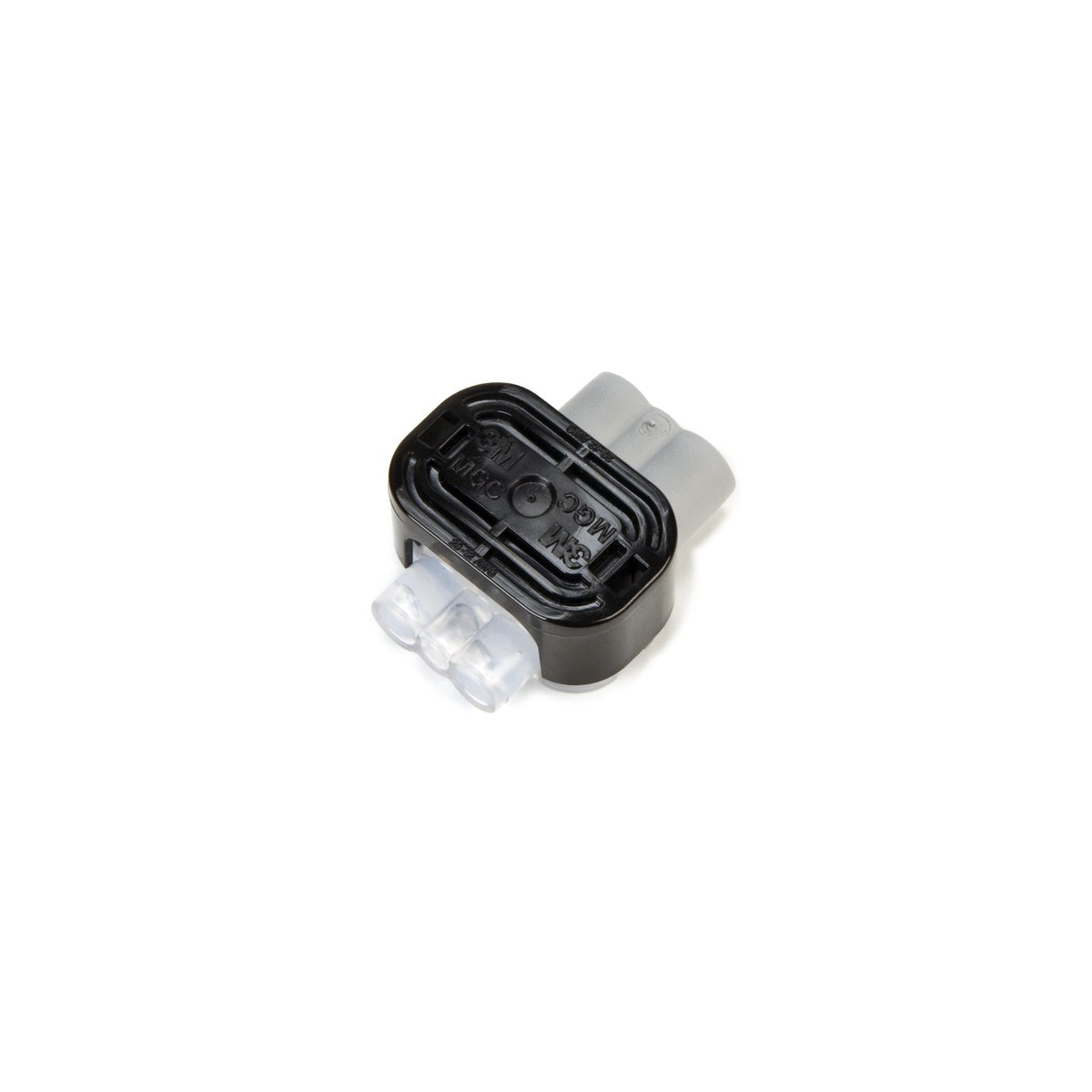

3M MGC-JUG 3M Scotchlok Moisture Guard Connector - Moisture Resistant Electrical Connector

The 3M MGC-JUG Scotchlok Moisture Guard Connector is designed for quick, reliable wire connections in landscape irrigation and lighting applications. This moisture-resistant connector uses insulation displacement technology, allowing secure connections without wire stripping or twisting. The connector's grease-filled interior protects against moisture ingress, while the UV-resistant housing ensures durability for above-ground use. Ideal for electrical distributors and lighting solutions providers, this connector supports wire and cable splicing in outdoor and moisture-prone environments.

Specifications

• Connection Type: Moisture Resistant
• Connector Style: Insulation Displacement
• Maximum Voltage Rating: 600 V (1000 V in signs, lighting fixtures, and luminaires)
• Operating Temperature: 221°F (105°C)
• RoHS Compliant: Yes
• Wire Range (Outside Port): 12 AWG Stranded, 14–16 AWG Solid/Stranded
• Wire Range (Inside Port): 20 AWG Stranded, 18 AWG Solid/Stranded
• Outside Port Maximum Insulation Diameter: 0.21" (5.3 mm)
• Inside Port Maximum Insulation Diameter: 0.15" (3.8 mm)
• Connectors per Jug: 100
• Connectors per Case: 400
• Product Weight: 11.31 lbs
• Manufacturer Part Number: MGC-JUG
• Country of Origin: United States

Features

• Grease-filled interior protects connections from moisture
• UV-resistant housing suitable for above-ground applications
• Insulation displacement design enables quick, reliable connections without stripping
• Compatible with a range of wire gauges for versatile use
• UL Listed and RoHS compliant for safety and environmental standards
