Overview

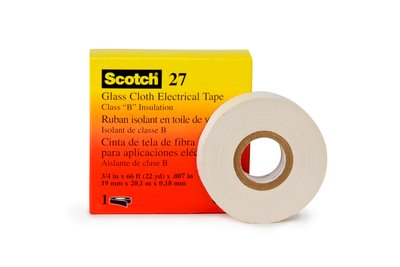

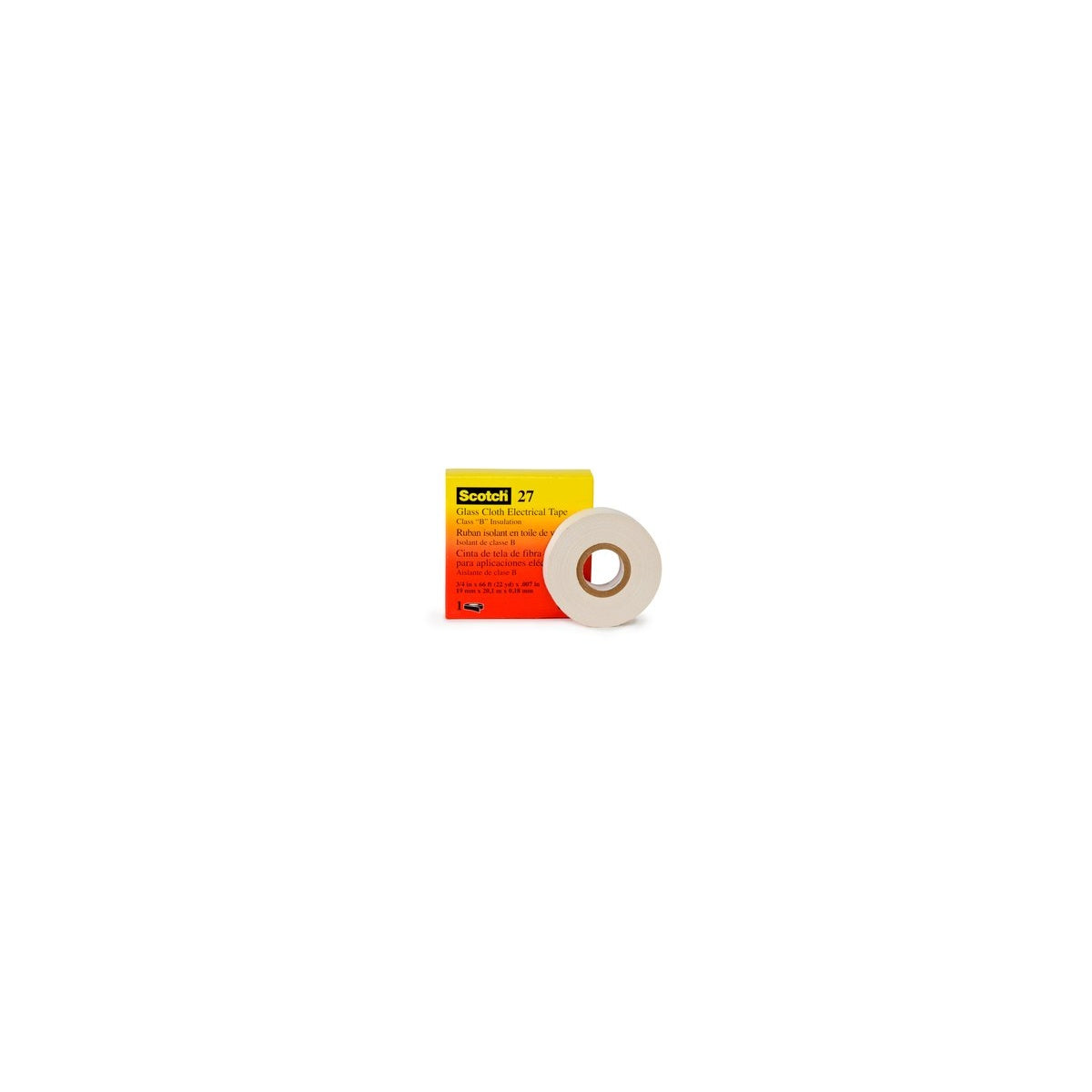

Scotch Glass Cloth Tape 27 is edge-tear resistant, comformable, abrasion resistant; for use as a coil cover, anchor, banding and core, layer and crossover insulation. This tape is used for heat-stable insulation for furnace and oven controls, motor leads, and switches.

Specifications

• Width: 0.75 Inch
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Dielectric Strength: 3000 Volt
• RoHS 2011/65/EU Compliant: Yes
• Adhesive Material: Thermosetable rubber resin
• Product Family: Scotch Glass Cloth Electrical Tapes 27
• Color: White
• Backing Material: Glass cloth
• Breaking Strength: 150 lb/in
• Maximum Operating Temperature (Fahrenheit): 302 Degree Fahrenheit
• Maximum Operating Temperature (Celsius): 150 Degree Celsius
• Thickness: 7 mil
• Tape Grade: Premium
• Tape Type: Special Use
• Length: 66 Linear Foot
• Family: Scotch Glass Cloth Electrical Tapes 27
• Trademark: Scotch
